6.4.2

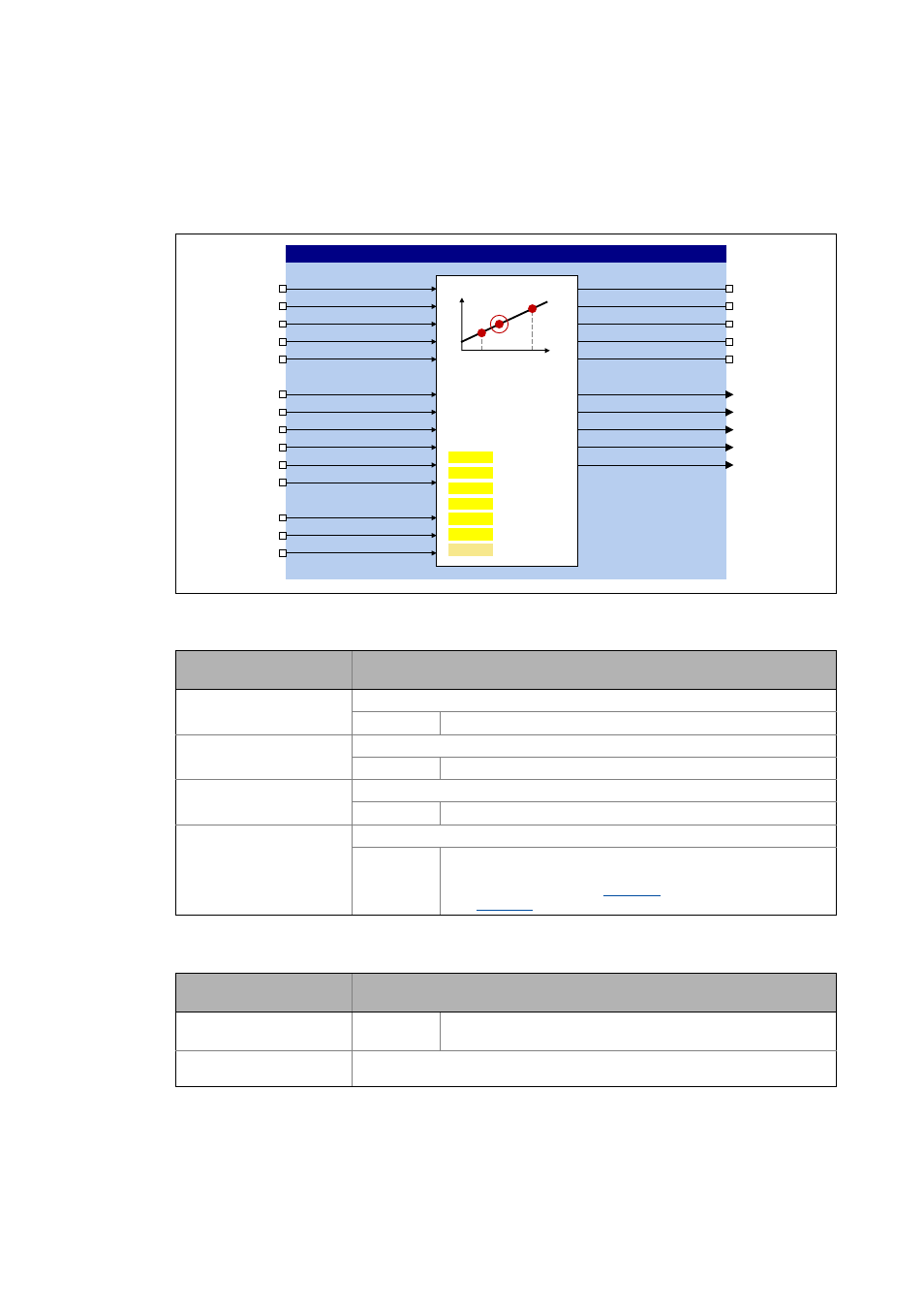

Internal interfaces | System block "LS_TouchProbe"

The LS_TouchProbe system block provides the internal interfaces for touch probe detection in the

function block editor:

Inputs

Outputs

Input

Data type

Information/possible settings

bDisableTPDigIn3...7

BOOL

DI3 ... DI7: Dynamically deactivate TP function

TRUE TP function is deactivated.

bDisableTPDigIn3...5Rising

BOOL

DI3 ... DI5: Dynamically deactivate detection of rising edges

TRUE Detection of rising edges is deactivated.

bDisableTPDigIn3...5Falling

BOOL

DI3 ... DI5: Dynamically deactivate detection of falling edges

TRUE Detection of falling edges is deactivated.

bEnableTPDigIn3...5Window

BOOL

DI3 ... DI5: Activate acceptance window

TRUE Acceptance window function is active:

• If the actual position is outside the acceptance window, whose

starting position is set in

C02813/x

and whose end position is set

C02814/x

, touch probe is automatically deactivated.

Output

Data type

Value/meaning

bTPDigIn3...7Received

BOOL

TRUE DI3 ... DI7: Touch probe received.

• The signal is only pending for one task cycle (1 ms).

dnTPDigIn3...7Position_p

DINT

DI3 ... DI7: Position measured by touch probe in [increments]
