17 Function library
17.1 Function blocks
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

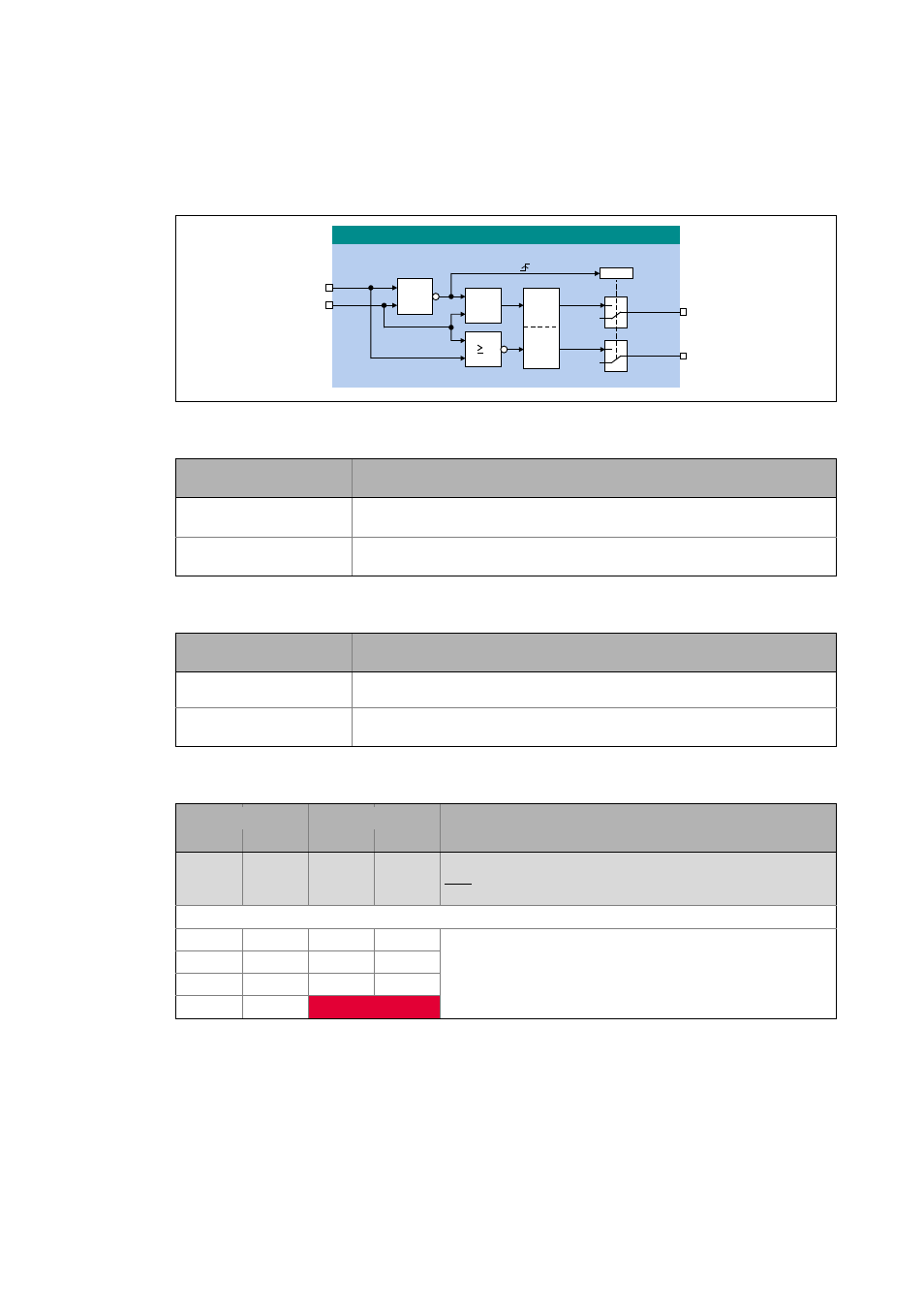

17.1.147 L_RLQ_1
This FB links a selected direction of rotation to the quick stop function with wire-break protection.
Inputs
Outputs
Function
[17-69] Truth table of the FB L_RLQ, 0 = FALSE, 1 = TRUE
Identifier
Data type
Information/possible settings
bCw
BOOL
Input
• TRUE = CW rotation
bCCw
BOOL
Input
• TRUE = CCW rotation
Identifier
Data type
Value/meaning
bQSP
BOOL
Output signal for quick stop (QSP)
bCwCcw
BOOL
Output signal for CW/CCW rotation
• TRUE = CCW rotation
Inputs Outputs Notes
bCw bCCw bCwCcw bQSP
TRUE TRUE FALSE TRUE The inputs have this status only if a TRUE signal is being applied to
both inputs at the moment of switch-on!
See also FB illustration above, "Init" = 1.
If one of the inputs has the TRUE status, the following truth table applies:
FALSE FALSE FALSE TRUE See also FB illustration above, "Init" = 0.
TRUE FALSE FALSE FALSE
FALSE TRUE TRUE FALSE
TRUE TRUE X (save)
/B5/4B
E&Z&FZ
E&FZ
E&Z
6
5
,QLW
)$/6(
758(
,QLW
E4VS
