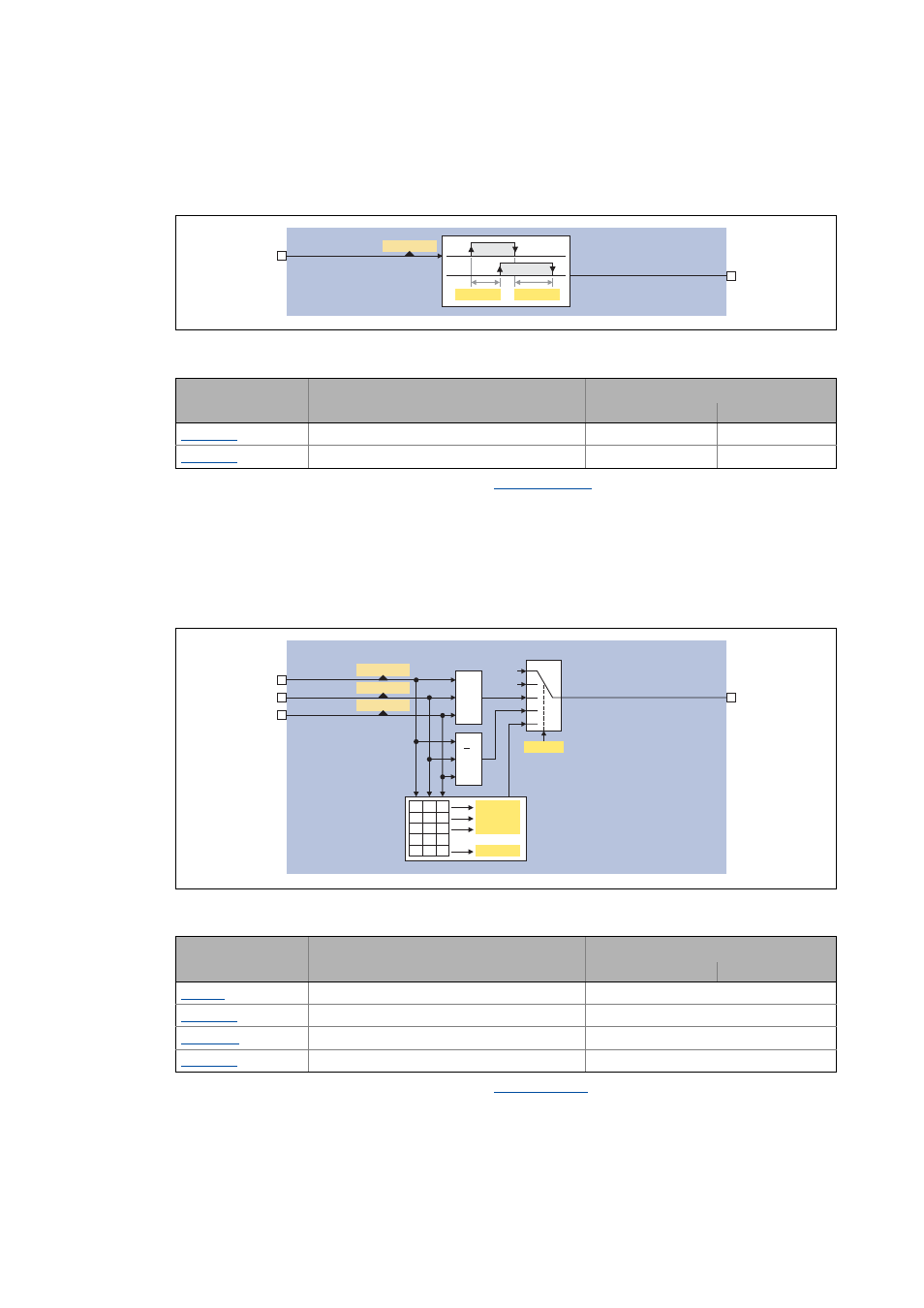

7.6.4 Binary delay element
This function timely delays binary signals. On-delay and off-delay can be parameterised separately.
[7-26] GeneralPurpose function "Binary delay element"
• For a detailed functional description see FB L_DigitalDelay .
7.6.5 Binary logic
This function provides a binary output signal which is formed by a logic operation of the input
signals. Alternatively, you can also select a fixed binary value which is independent of the input
signals.
[7-27] GeneralPurpose function "Binary logic"
• For a detailed functional description see FB L_DigitalLogic .
bGPDigitalDelayOut
bGPDigitalDelayIn
C00720/1 C00720/2
C00833/66 In
Out
Parameter Info Lenze setting
Value Unit
C00720/1 L_DigitalDelay_1: On delay 0.000 s
C00720/2 L_DigitalDelay_1: Off delay 0.000 s
bGPLogicIn1
&
0
1
> 1
0 0 0
0 0 1
1
0
1
1
1
0
...
2
3
4
0
1
bGPLogicOut
C00821/2
C00821/1
C00821/3
C00821/8
bGPLogicIn2
bGPLogicIn3
C00820
C00833/63
C00833/64
C00833/65
Parameter Info Lenze setting
Value Unit
C00820 L_DigitalLogic_1: Function 0: bOut = 0
C00821/1 bIn1=0/bIn2=0/bIn3=0 0: FALSE
C00821/... ... ...
C00821/8 bIn1=1/bIn2=1/bIn3=1 0: FALSE
