bizhub PRESS C8000/e 9-49
9.7 [03 Finisher Adjustment] (Saddle Stitcher SD-506) 9
8
If any adjustment is required, press [Exit Print Mode] to return to the Fold Paper Width Adjustment
Screen.
9
Use the touch panel keypad or control panel keypad to enter the setting data.
% Use [+/-] to specify the value to be positive or negative.
% Press [Set] to change the current data.
% Adjustable range: -50 (Narrow) to +50 (Wide) (1 step = 0.1 mm)
% If the setting data is too wide, misalignment may become worse.
10
Repeat the steps from 4 to 9 until the desired result is obtained.
11
Press [Return] to restore the Saddle Stitcher Adjustment Menu Screen.
9.7.7 [06 Saddle Stitcher Pos. Adj.] - [07 Trimming Adjustment]
Adjust the trimming width determined by Saddle Stitcher SD-506. The trimming width should be more than
2.0 mm, otherwise the trimming operation may not performed properly.
Objects of adjustment: Full Area, SRA3 w, A3 w, B4 w, SRA4 w, A4 w, B5 w, 13 e 19 w, 12 e 18 w,
11 e 17 w, 8.5 e 14 w, 8.5 e 11 w, 8.125 e 13.25 w, 8.5 e 13 w, 8.25 e 13 w, 8 e 13 w, 8K w, 16K w,
Custom (380-463 mm), Custom (257-379 mm)
NOTICE
With [Full Area] selected, the entered value will be applied to all sizes. With a specific paper size selected, set
value will be the sum of the entered value and the value previously specified for [Full Area].
1
Press [Adjustment] on the Machine Screen to display the Adjustment Menu Screen.
2

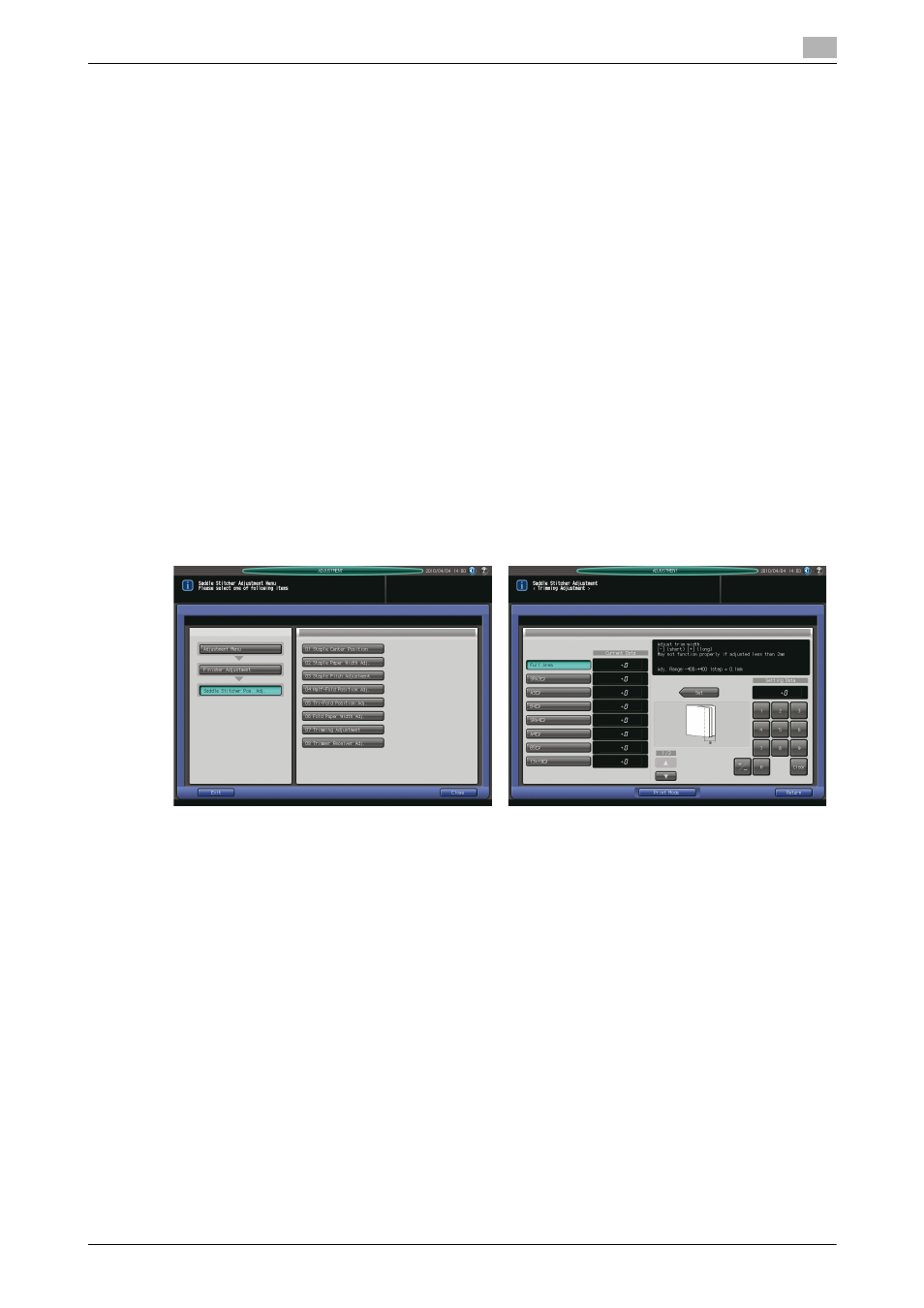

Press [03 Finisher Adjustment], [06 Saddle Stitcher Pos. Adj.], and [07 Trimming Adjustment] in se-
quence.
The Trimming Adjustment Screen will be displayed.
3
Select the size to be adjusted using [+] and [,] to scroll.
4
Press [Print Mode].
5
Load the paper size to be adjusted into a tray, then select that tray key.
6
Press Start on the control panel. A sample pattern will be output.
