bizhub PRESS C8000/e 9-29
9.5 [03 Finisher Adjustment] (Folding Unit FD-503) 9
8

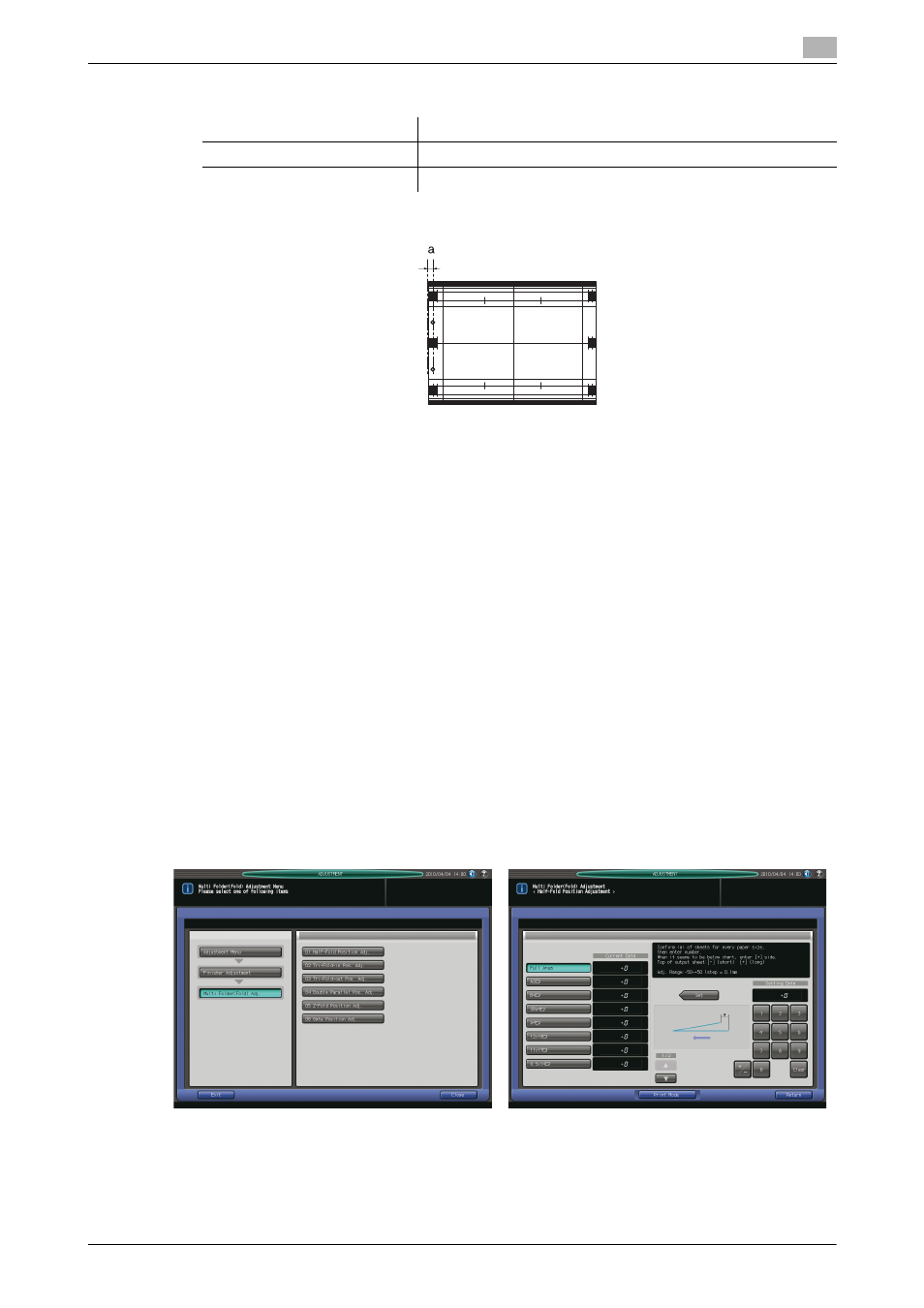

Measure the distance (a) from the edge of the output sheet to the center of punch holes.
9
If any adjustment is required, press [Exit Print Mode] to return to the Punch Vertical Position Adjustment
Screen.
10
Use the touch panel keypad or control panel keypad to enter the setting data.
% Use [+/-] to specify the value to be positive or negative.
% Press [Set] to change the current data.
% Adjustable range: -40 (Narrow) to +40 (Wide) (1 step = 0.1 mm)
11
Repeat the steps from 5 to 10 until the desired result is obtained.
12
Press [Return] to restore the Punch Vertical Position Adjustment Menu Screen.
9.5.3 [03 Multi Folder (Fold) Adj.] - [01 Half-Fold Position Adj.]
Adjust the half-folded position determined by Folding Unit FD-503.
Objects of adjustment: Full Area, A3 w, B4 w, SRA4 w, A4 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w,
8K w, Custom (380-458 mm), Custom (279-379 mm)
NOTICE
With [Full Area] selected, the entered value will be applied to all sizes. With a specific paper size selected, set
value will be the sum of the entered value and the value previously specified for [Full Area].
Number of punch holes Allowance
2 holes 10.5 +/- 4.0 mm or more
4 holes 9.5 +/- 4.0 mm or more
