9.6 [03 Finisher Adjustment] (Large Capacity Stacker LS-505) 9
bizhub PRESS C8000/e 9-40
7

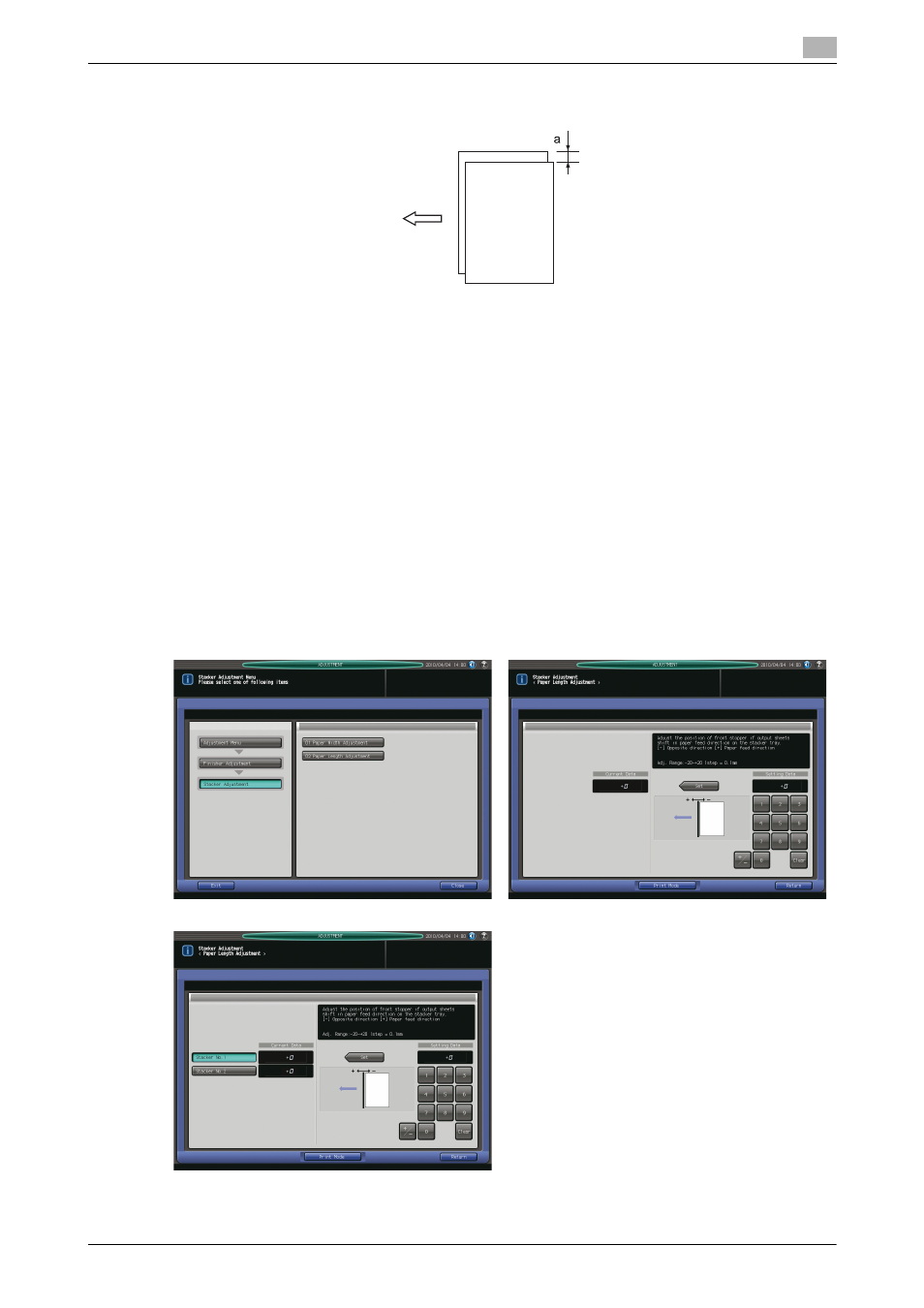

Check the misalignment (a) in the sheets delivered to the stacker.
8
If any adjustment is required, press [Exit Print Mode] to return to the Paper Width Adjustment Screen.
9
Use the touch panel keypad or control panel keypad to enter the setting data.
% Use [+/-] to specify the value to be positive or negative.
% Press [Set] to change the current data.
% Adjustable range: -20 (Narrow) to +20 (Wide) (1 step = 0.1 mm)
10
Repeat the steps from 4 to 9 until the desired result is obtained.
11
Press [Return] to restore the Stacker Adjustment Menu Screen.
9.6.2 [05 Stacker Adjustment] - [02 Paper Length Adjustment]
Adjust the position of the front stopper if output sheets show misalignment in paper feed direction on the
stacker tray of Large Capacity Stacker LS-505.
Objects of adjustment: Stacker No. 1, Stacker No. 2
