9.4 [03 Finisher Adjustment] (Finisher FS-521) 9
bizhub PRESS C8000/e 9-20
9.4 [03 Finisher Adjustment] (Finisher FS-521)
9.4.1 [01 Staple Finisher Adjustment] - [01 Staple Center Position]
Adjust the center position of staples determined by Finisher FS-521.
NOTICE
Make this adjustment after completing [01 Staple Finisher Adjustment] - [02 Paper Width Adj. (Staple)].
1
Press [Adjustment] on the Machine Screen to display the Adjustment Menu Screen.
2

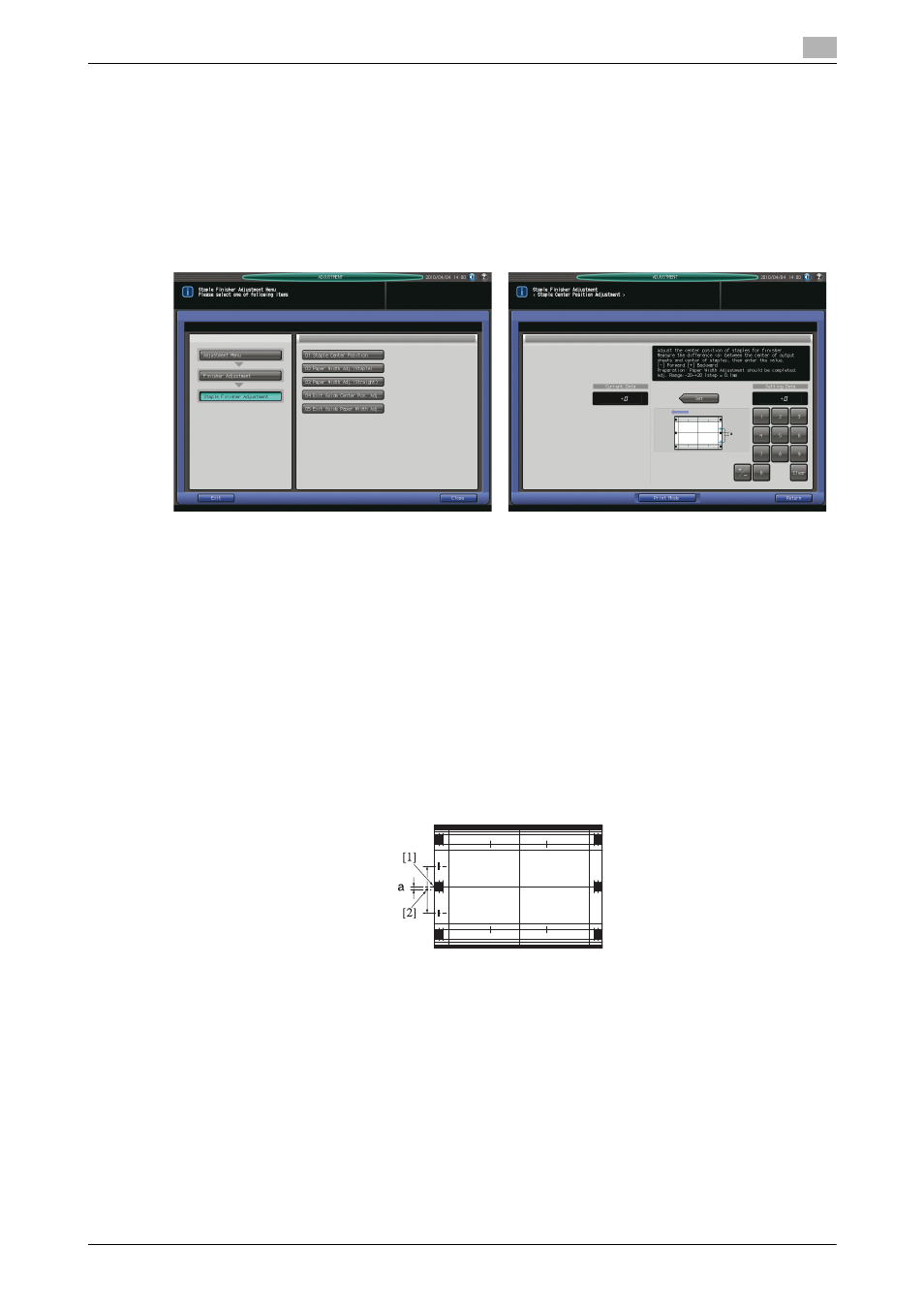

Press [03 Finisher Adjustment], [01 Staple Finisher Adjustment], and [01 Staple Center Position] in se-
quence.
The Staple Center Position Adjustment Screen will be displayed.
3
Press [Print Mode].
4
Load A3 w paper into a tray, then select that tray key.
5
Press Start on the control panel. A stapled test pattern will be output.
6
Fold the output sheet at the center in the paper feed direction, and check the misalignment of the center
position of staples and folded line.
7
If any adjustment is required, press [Exit Print Mode] to return to the Staple Center Position Adjustment
Screen.
8
Use the touch panel keypad or control panel keypad to enter the setting data.
% Use [+/-] to specify the value to be positive or negative.
% Press [Set] to change the current data.
% Adjustable range: -20 (Forward) to +20 (Backward) (1 step = 0.1 mm)
9
Repeat the steps from 3 to 8 until the desired result is obtained.
10
Press [Return] to restore the Staple Finisher Adjustment Menu Screen.
[1] Center line of paper [2] Center position of staples
