9.7 [03 Finisher Adjustment] (Saddle Stitcher SD-506) 9
bizhub PRESS C8000/e 9-44
9
Use the touch panel keypad or control panel keypad to enter the setting data.
% Use [+/-] to specify the value to be positive or negative.
% Press [Set] to change the current data.
% Adjustable range: -20 (Narrow) to +20 (Wide) (1 step = 0.1 mm)
% Staple Paper Width Adjustment is subject to the following conditions depending on the actual paper
width. For paper sizes of less than 222 mm in actual width, such as A4 w, the staple pitch will be
set to 91 mm automatically even if an adjustment value to make it less than 91 mm is entered.
10
Repeat the steps from 4 to 9 until the desired result is obtained.
11
Press [Return] to restore the Saddle Stitcher Adjustment Menu Screen.
9.7.3 [06 Saddle Stitcher Pos. Adj.] - [03 Staple Pitch Adjustment]
Adjust the staple pitch determined by Saddle Stitcher SD-506.
Objects of adjustment: Full Area, SRA3 w, A3 w, B4 w, SRA4 w, A4 w, B5 w, 13 e 19 w, 12 e 18 w,
11 e 17 w, 8.5 e 14 w, 8.5 e 11 w, 8.125 e 13.25 w, 8.5 e 13 w, 8.25 e 13 w, 8 e 13 w, 8K w, 16K w,
Custom (380-463 mm), Custom (257-379 mm)
NOTICE
With [Full Area] selected, the entered value will be applied to all sizes. With a specific paper size selected, set
value will be the sum of the entered value and the value previously specified for [Full Area].
1
Press [Adjustment] on the Machine Screen to display the Adjustment Menu Screen.
2
Press [03 Finisher Adjustment], [06 Saddle Stitcher Pos. Adj.], and [03 Staple Pitch Adjustment] in se-
quence.

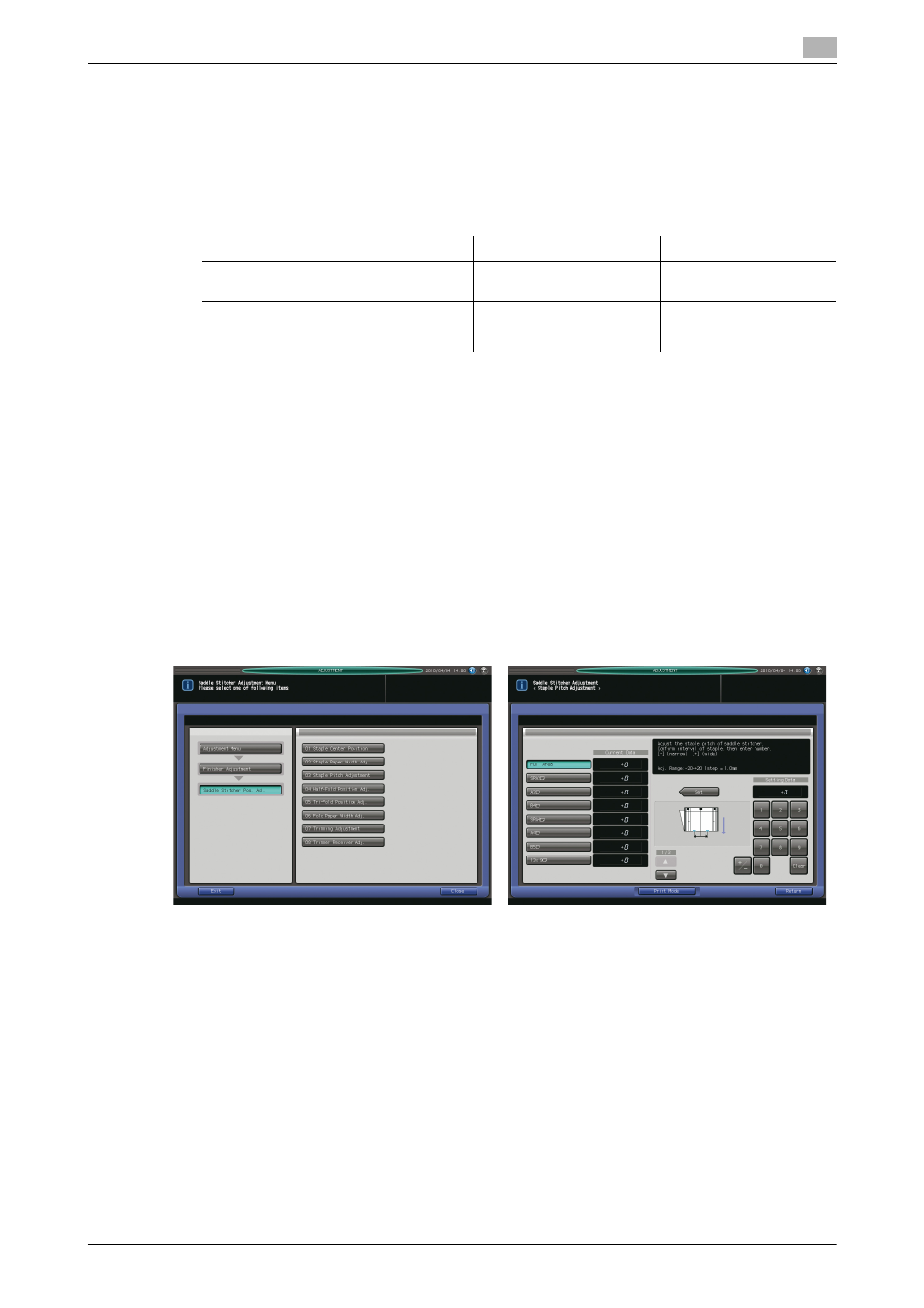

The Staple Pitch Adjustment Screen will be displayed.
3
Select the size to be adjusted using [+] and [,] to scroll.
4
Press [Print Mode].
5
Load the paper size to be adjusted into a tray, then select that tray key.
6
Press Start on the control panel. A sample pattern will be output.
Actual paper width Minimum value Maximum value
Less than 222 mm 91 mm Actual width minus 91
mm
222 mm to 290 mm Not limited Not limited
More than 290 mm Not limited 165 mm
