9.7 [03 Finisher Adjustment] (Saddle Stitcher SD-506) 9
bizhub PRESS C8000/e 9-48
12
Repeat step 10.
% The measurement (a) in step 7 will increase with positive value entered, and decrease with negative
value entered.
13
Repeat the steps from 4 to 12 until the desired result is obtained.
14
Press [Return] to restore the Saddle Stitcher Adjustment Menu Screen.
9.7.6 [06 Saddle Stitcher Pos. Adj.] - [06 Fold Paper Width Adj.]
Adjust the width of adjustment plates of Saddle Stitcher SD-506 if half-folded or tri-folded sheets show mis-
alignment.
Objects of adjustment: Full Area, SRA3 w, A3 w, B4 w, SRA4 w, A4 w, B5 w, 13 e 19 w, 12 e 18 w,
11 e 17 w, 8.5 e 14 w, 8.5 e 11 w, 8.125 e 13.25 w, 8.5 e 13 w, 8.25 e 13 w, 8 e 13 w, 8K w, 16K w, PI,
Custom (380-463 mm), Custom (257-379 mm)
NOTICE
With [Full Area] selected, the entered value will be applied to all sizes. With a specific paper size selected, set
value will be the sum of the entered value and the value previously specified for [Full Area].
1

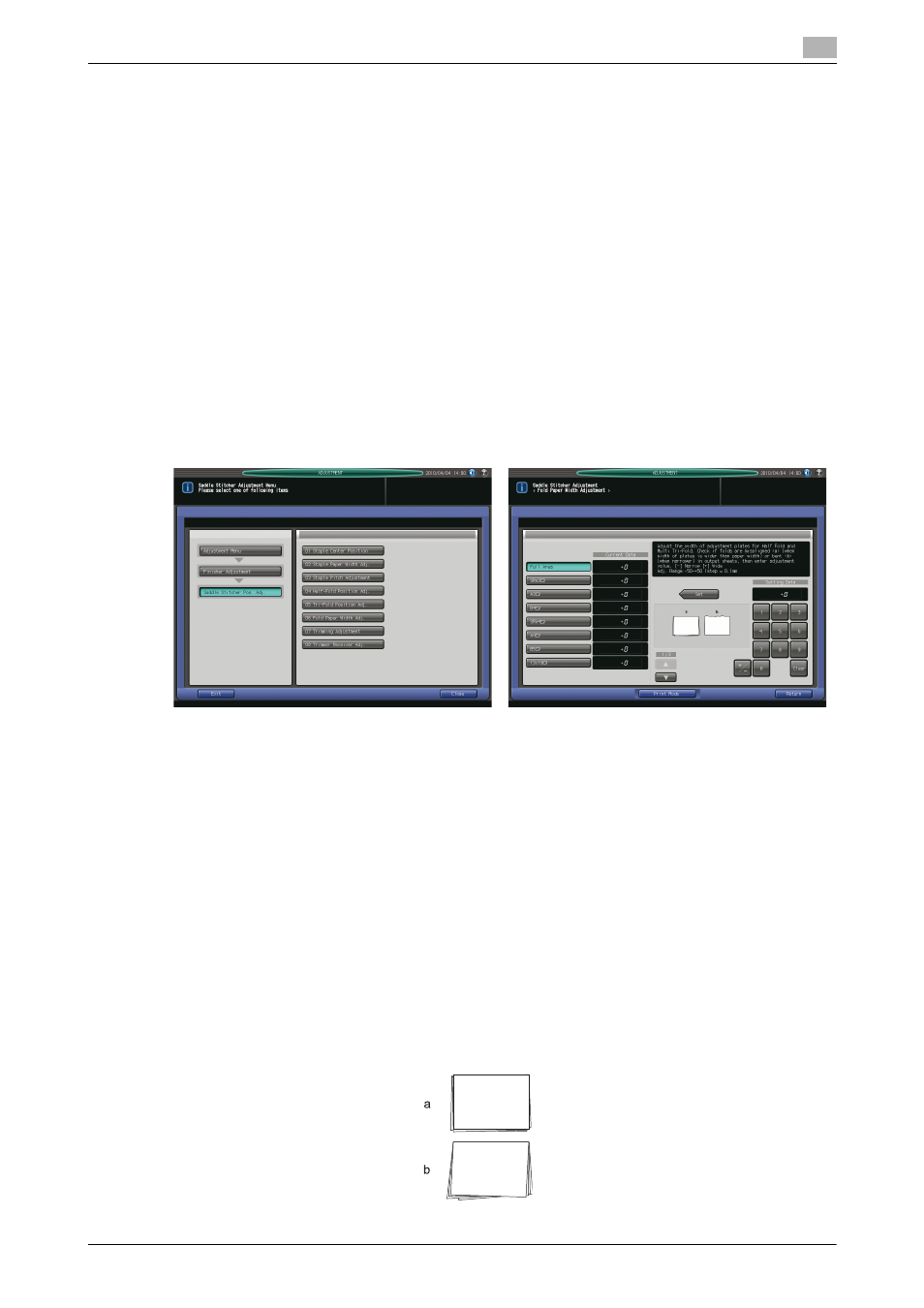

Press [Adjustment] on the Machine Screen to display the Adjustment Menu Screen.
2
Press [03 Finisher Adjustment], [06 Saddle Stitcher Pos. Adj.], and [06 Fold Paper Width Adj.] in se-
quence.
The Fold Paper Width Adjustment Screen will be displayed.
3
Select the size to be adjusted using [+] and [,] to scroll.
4
Press [Print Mode].
5
Load the paper size to be adjusted into a tray, then select that tray key.
6
Press Start on the control panel. A sample pattern will be output.
7
Check that any misalignment is found in the output set.
a: Misalignment occurs at random if specified paper width is wider than the actual width.
b: Misalignment occurs in one direction if specified paper width is narrower than the actual width.
