Allied Telesis AT-S60 - Manual (Page 578)

AT-S60 Management Software User’s Guide
Section IV: Web Browser Management 577
Displaying the Encryption Keys
To display the encryption keys, perform the following procedure:
Note
You cannot set up the encryption keys from a web browser
management session. To set the encryption keys, use a local or
Telnet management session. For more information, see
Configuring Keys for Encryption on page 347.
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 157 on page 442.
2. Select the Layer 2 option.
The Monitoring Layer 2 page is displayed with the MAC Address
tab selected by default, as shown Figure 204 on page 541.
3. Select the Security option.
The Monitoring Security page opens with the Keys tab displayed
by default, as shown in Figure 226.

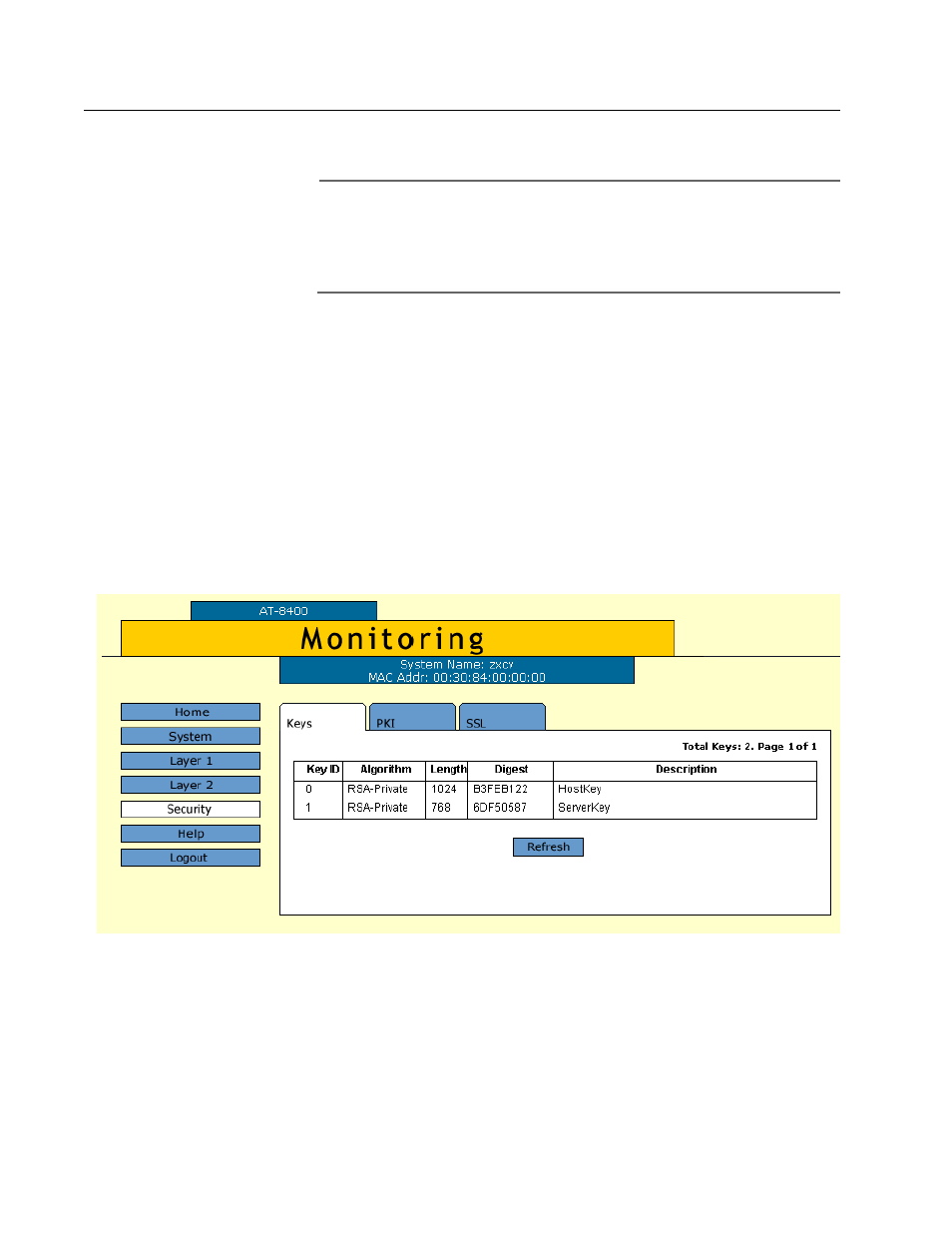

Figure 226 Monitoring Security Page, Keys Tab
