Allied Telesis AT-S60 - Manual (Page 561)

Chapter 38: TACACS+ and RADIUS Protocols
Section IV: Web Browser Management 560
Configuring RADIUS
To configure RADIUS, perform the following procedure:
1. From the Home Page, select Configuration.
The Configuration System page is displayed with the General tab
selected by default, as shown in Figure 155 on page 434.
2. Select the Server-based Authentication tab.
The Server-based Authentication tab is displayed as shown in
Figure 212 on page 556.
3. Click the check circle next to RADIUS Configuration and click
Configure.
The RADIUS Client Configuration page is shown in Figure 214.

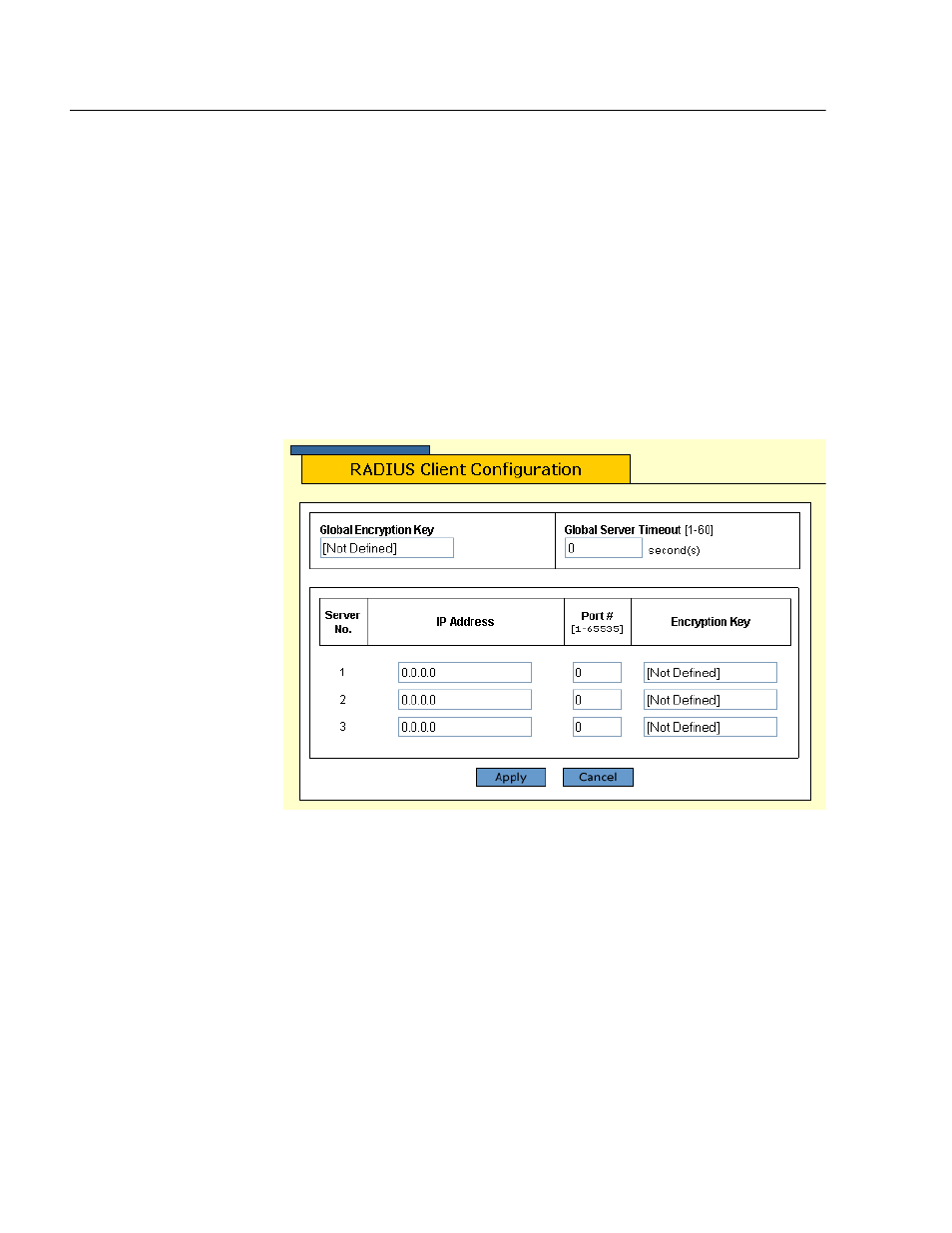

Figure 214 RADIUS Client Configuration Page
4. Configure the following parameters as needed:
Global Encryption Key
If all of the TACACS+ servers have the same encryption secret, you
can enter the key here. If the servers have different keys, you must
specify each key when you specify a server’s IP address.
