Chapter 11: File Downloads and Uploads
Section II: Local and Telnet Management 172
5. Click on the Protocol field and select as the transfer protocol either
Xmodem or 1K XModem.
Note
The transfer protocol must be Xmodem or 1K Xmodem. The
recommended transfer protocol is 1K Xmodem because it is much
faster than the Xmodem protocol. For a faster download, set the
console baud rate to 115200. Refer to Starting a Local
Management Session on page 36 for information on setting the
console baud rate.
6. Click Receive.

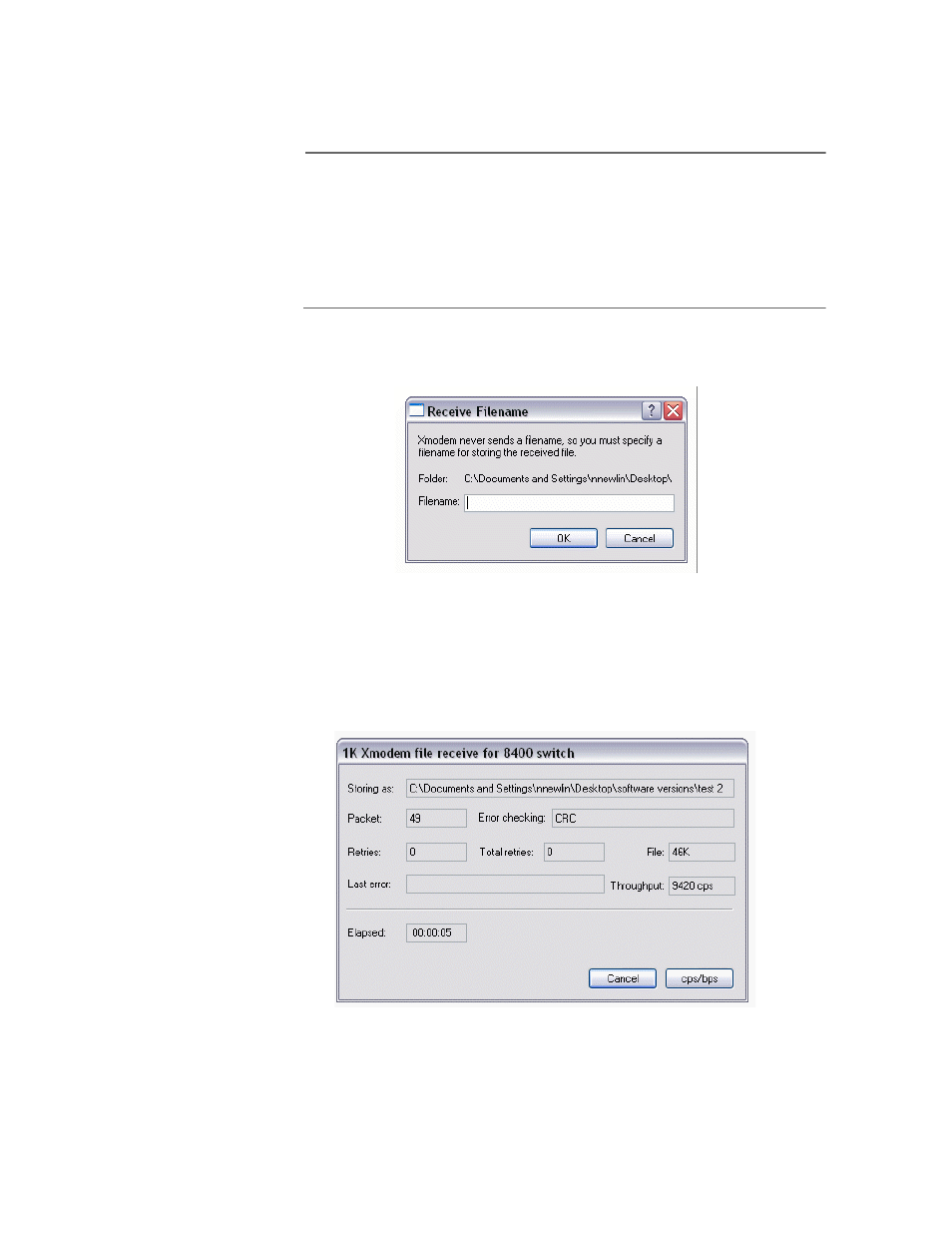

The Receive filename window is displayed, as shown in Figure 56.
Figure 56 Receive Filename Window
7. Enter a name for storing the uploaded file.
The Xmodem file receive window is displayed, as shown in
Figure 57.
Figure 57 Xmodem File Receive Window
