Allied Telesis AT-S60 - Manual (Page 525)

Chapter 34: Virtual LANs
Section IV: Web Browser Management 524
Modifying a VLAN
To modify a port-based or tagged VLAN, perform the following
procedure:
1. From the Home Page, select Configuration.
The Configuration System page is displayed with the General tab
selected by default, as shown in Figure 157 on page 442.
2. From the Configuration menu, select the Layer 2 option.
The Layer 2 page is displayed with the MAC Address tab selected
by default, as shown in Figure 204 on page 541.
3. Select the VLAN tab.
The VLAN tab is shown in Figure 195 on page 521.
4. Click the circle next to the name of the VLAN you want to modify.
5. Click Modify.

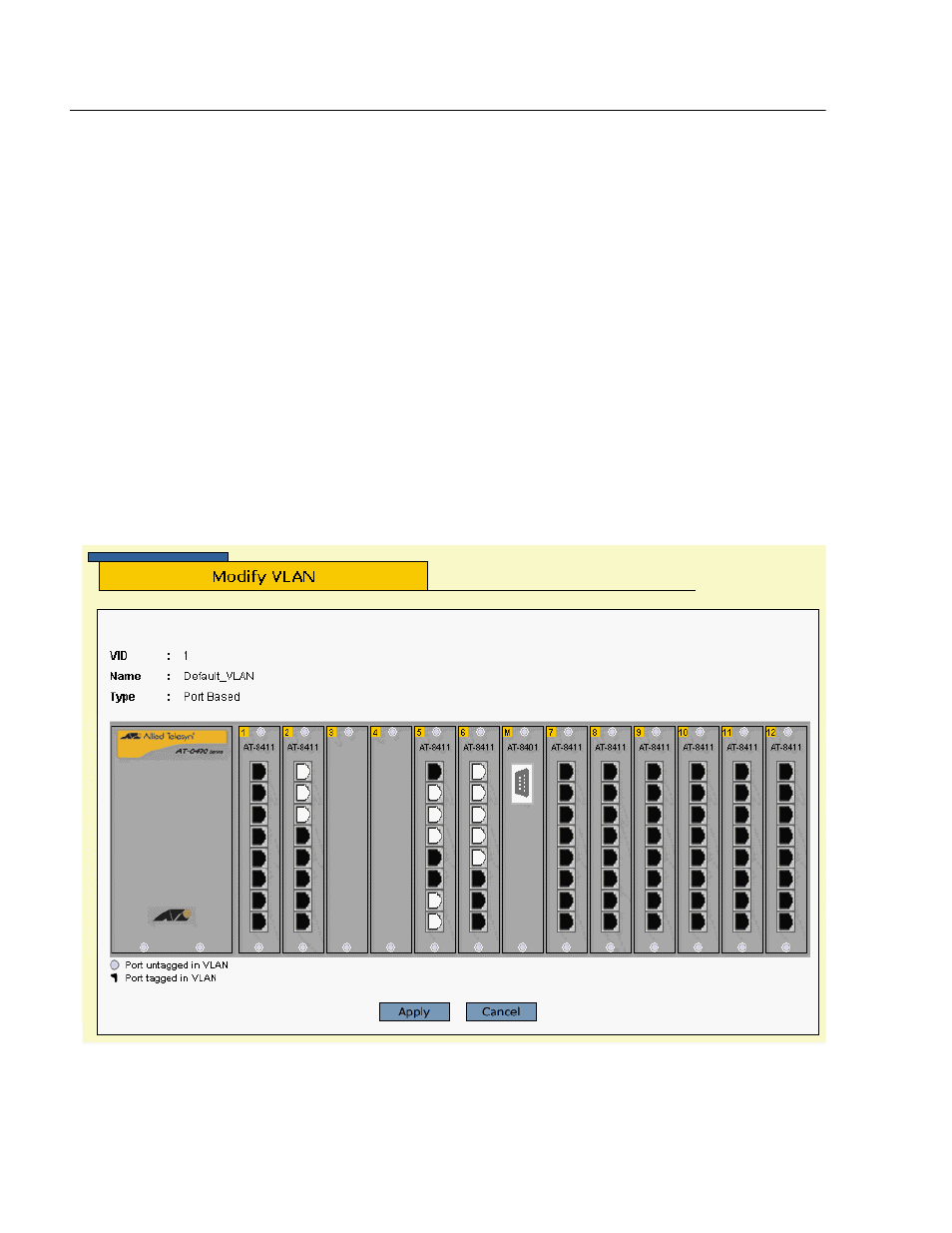

The Modify VLAN page is displayed as shown in Figure 197.
Figure 197 Modify VLAN Page
