AT-S60 Management Software User’s Guide
Section IV: Web Browser Management 553
The View Multicast Hosts List page is shown in Figure 209.

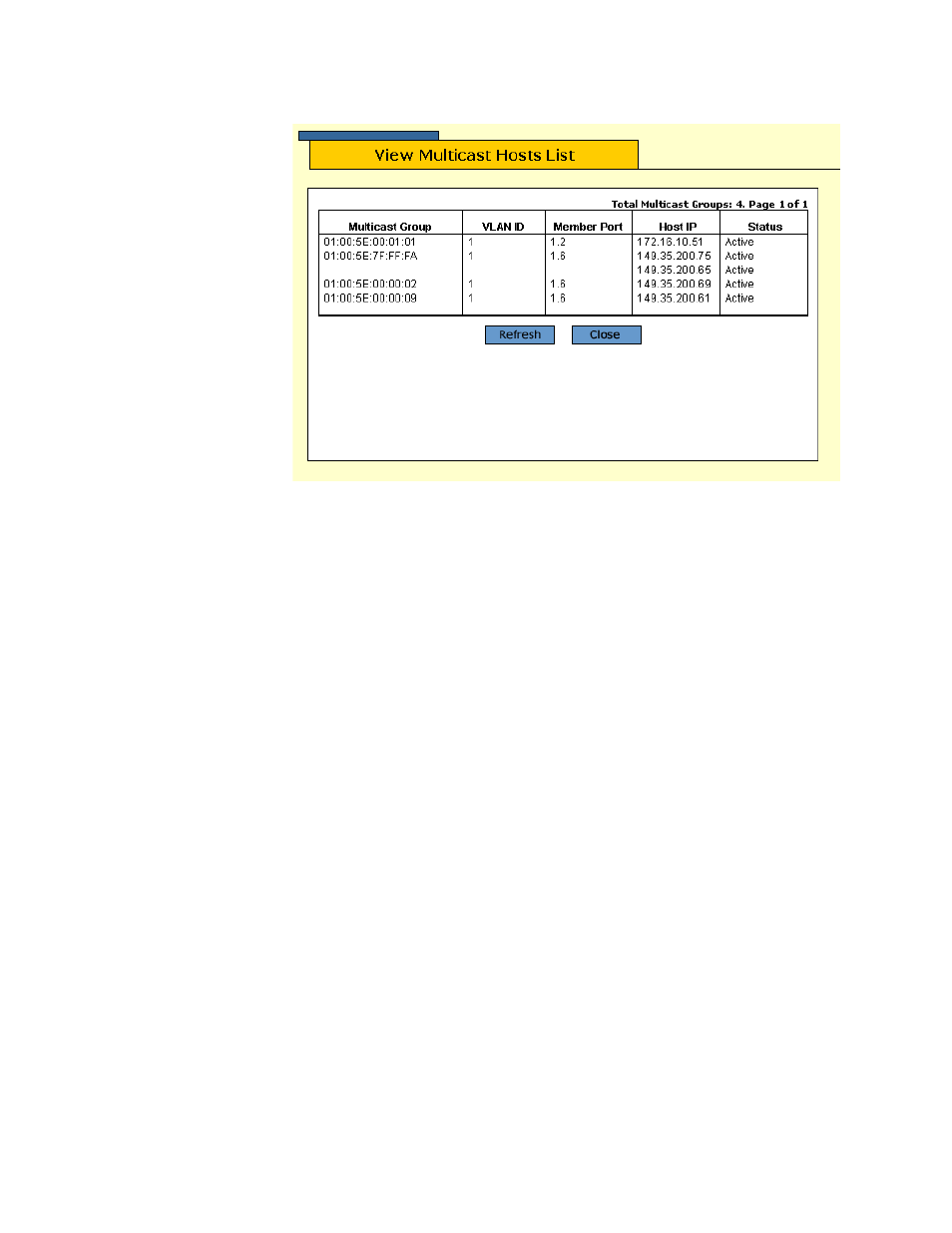

Figure 209 View Multicast Hosts List Page
This page displays the following information:
Multicast Group
The multicast address of the group.
VLAN ID
The VID of the VLAN in which the port is an untagged member.
Member Port
The port(s) on the switch to which one or more host nodes of the
multicast group are connected.
Host IP
The IP address(es) of the host node(s) connected to the port.
Status
Indicates IGMP group status of the port.
Active indicates the port is active in the IGMP group.
Left Group indicates the port is not active in the IGMP group.
4. To view the multicast routers, click View Multicast Router List and
then click View.
