AT-S60 Management Software User’s Guide
Section IV: Web Browser Management 535
Displaying the GVRP Settings
Use this procedure to view the GVRP settings:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 157 on page 442.
2. Select the Layer 2 option.
The Monitoring Layer 2 page is displayed with the MAC Address
tab selected by default, as shown Figure 204 on page 541.
3. Select the GVRP tab.
The GVRP tab is shown in Figure 201.

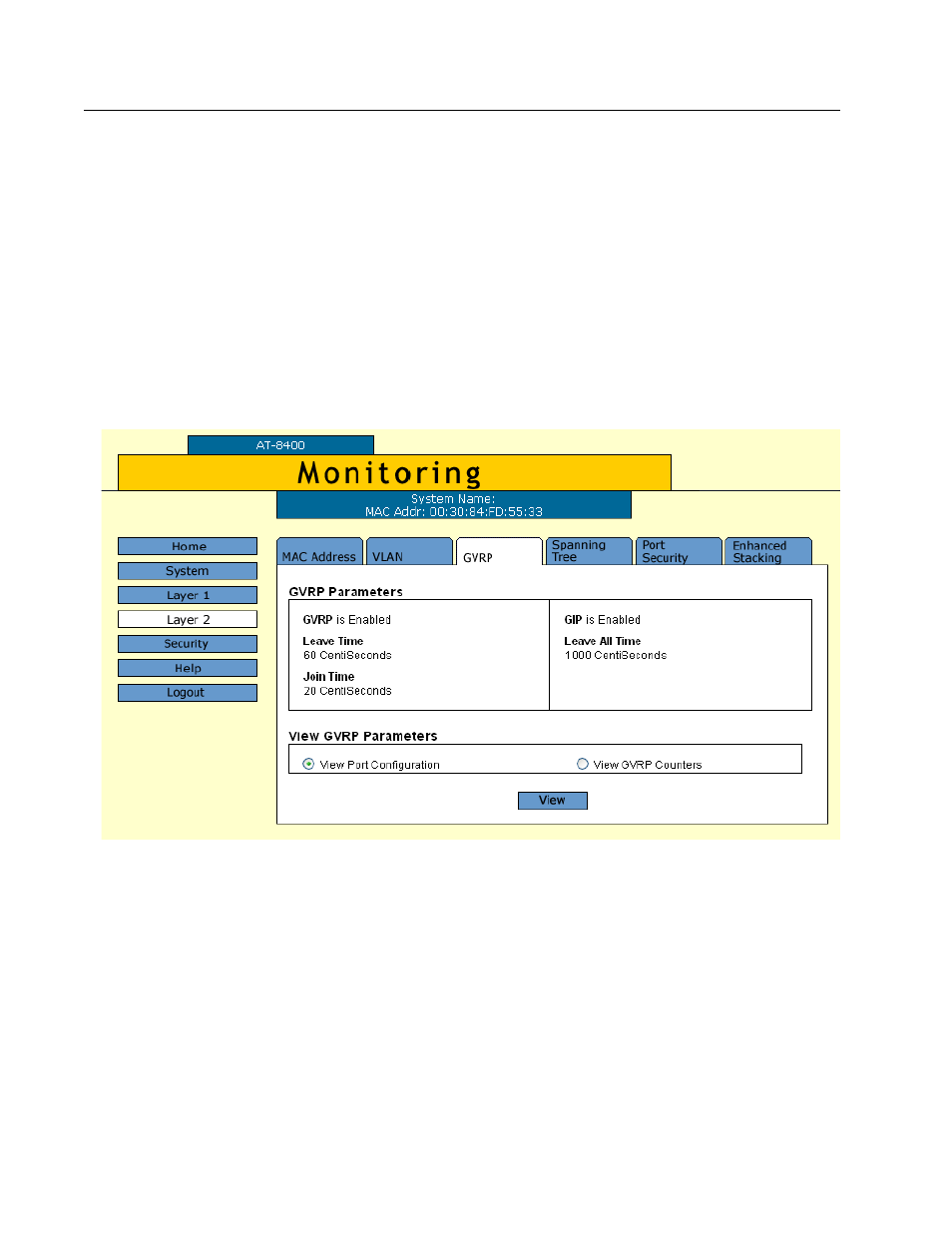

Figure 201 Monitoring Layer 2 Page, GVRP Tab
4. To view the port configuration, click View Port Configuration in the
View GVRP Parameters section.
