AT-S60 Management Software User’s Guide
Section IV: Web Browser Management 531
Configuring GVRP
To configure GVRP, perform the following procedure:
1. From the Home Page, select Configuration.
The Configuration System page is displayed with the General tab
selected by default, as shown in Figure 155 on page 434.
2. From the Configuration menu, select the Layer 2 option.
The Layer 2 page is displayed with the MAC Address tab selected
by default, as shown in Figure 204 on page 541.
3. Select the GVRP tab.
The GVRP tab is shown in Figure 199.

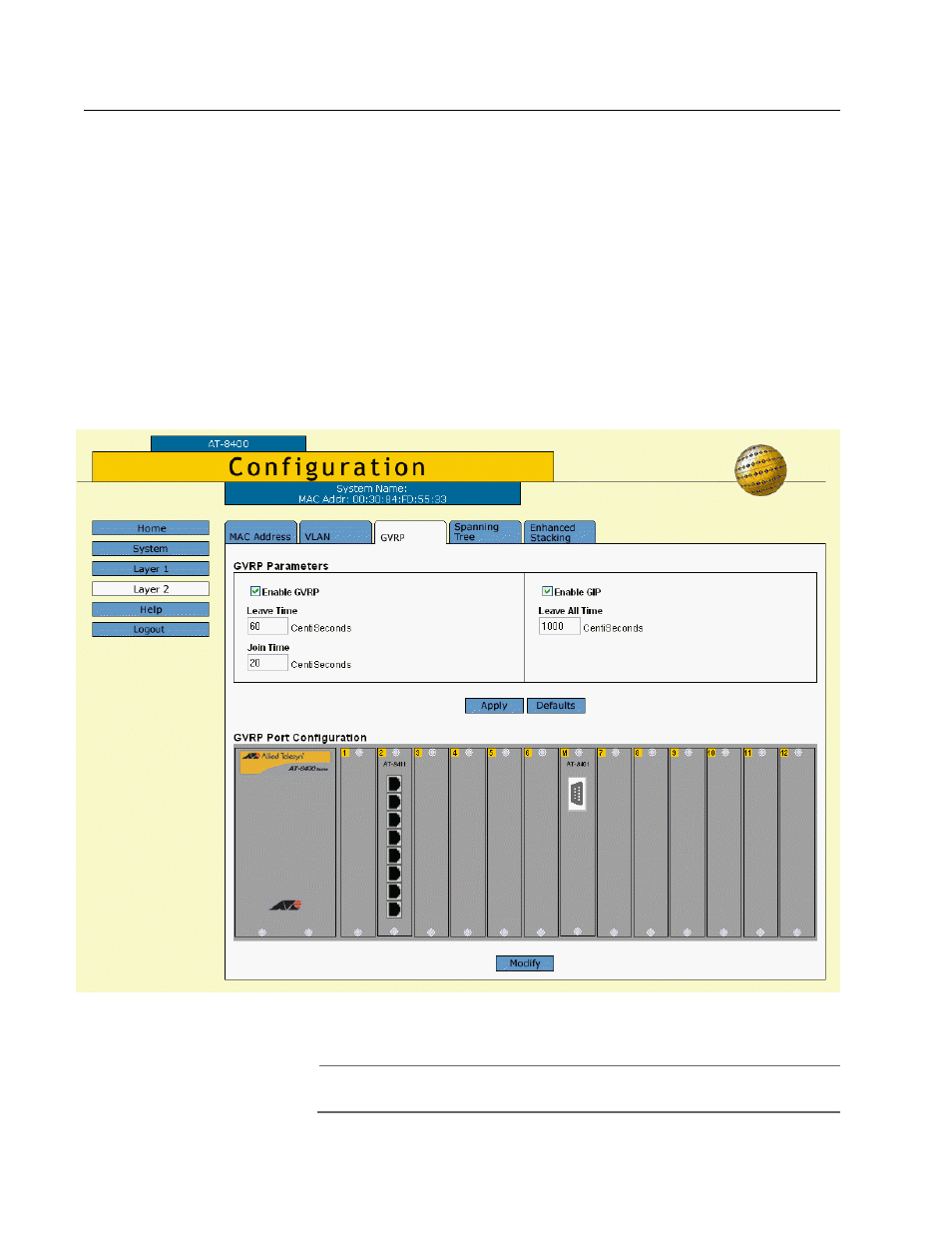

Figure 199 Configuration Layer 2 Page, GVRP Tab
Note
When MSTP is enabled, the GVRP tab is not shown.
