Allied Telesis AT-S60 - Manual (Page 567)

Chapter 39: 802.1x Port-Based Network Access Control
Section IV: Web Browser Management 566
Configuring Port Access
To configure 802.1x port access from a web browser management
session, perform the following procedure:
1. On the Home page, select Configuration.
The Configuration System page is displayed with the General tab
shown by default.
2. Select the Layer 1 option.
The Layer 1 page is displayed with the Port Settings tab shown by
default.
3. Select the 802.1x Port Access tab.
The Configuration 802.1x Port Access tab is displayed as shown in
Figure 218.

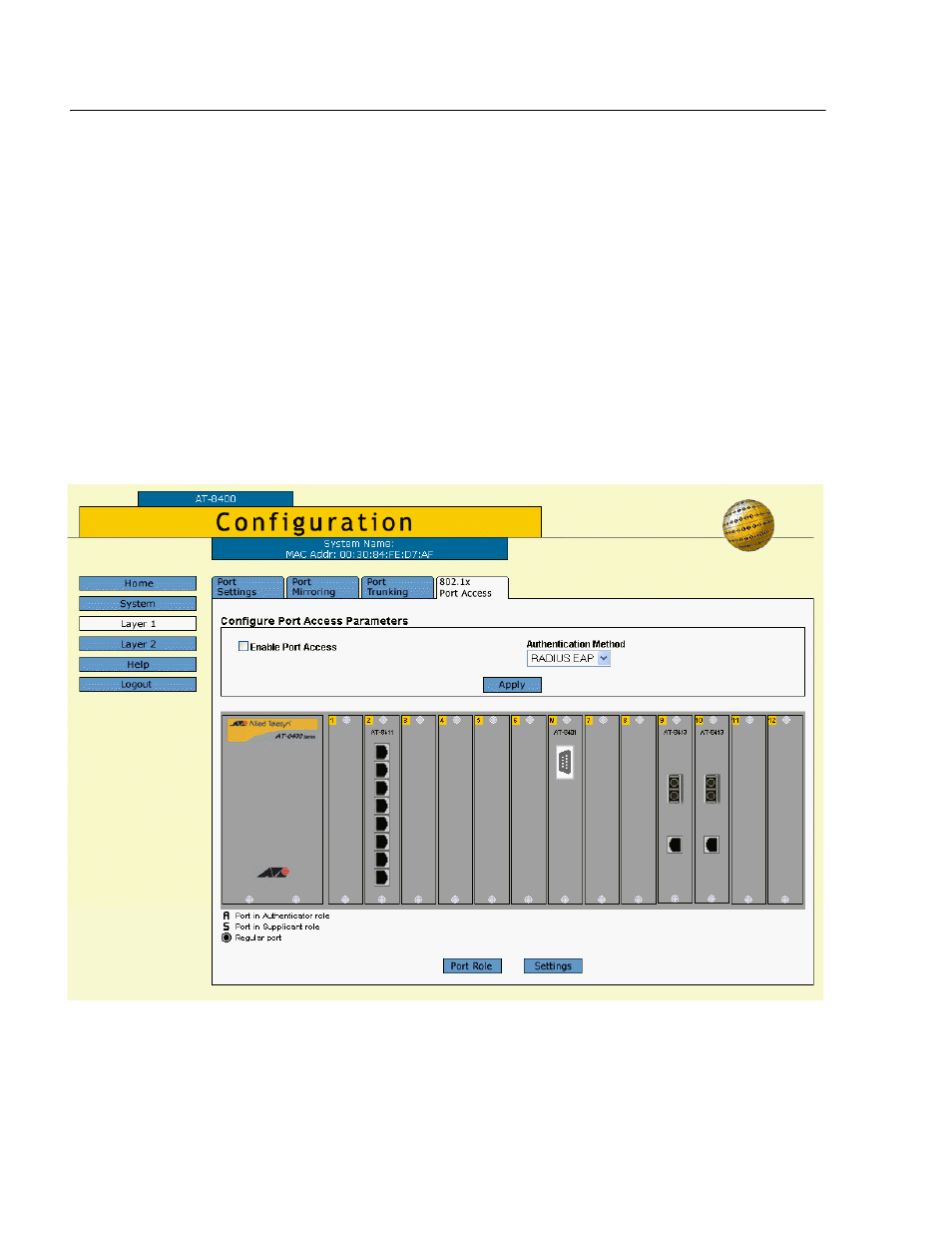

Figure 218 Configuration Layer 1 Page, 802.1x Port Access Tab
