Chapter 30: Port Security
Section IV: Web Browser Management 478
Displaying the Port Security Level
To display the switch’s port security levels, perform the following
procedure:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 157 on page 442.
2. Select the Layer 2 option.
The Monitoring Layer 2 page is displayed with the MAC Address
tab selected by default, as shown Figure 204 on page 541.
3. Select the Port Security tab.
A graphical image that reflects the line cards installed in your
chassis is displayed on the Port Security tab, as shown in Figure
173.

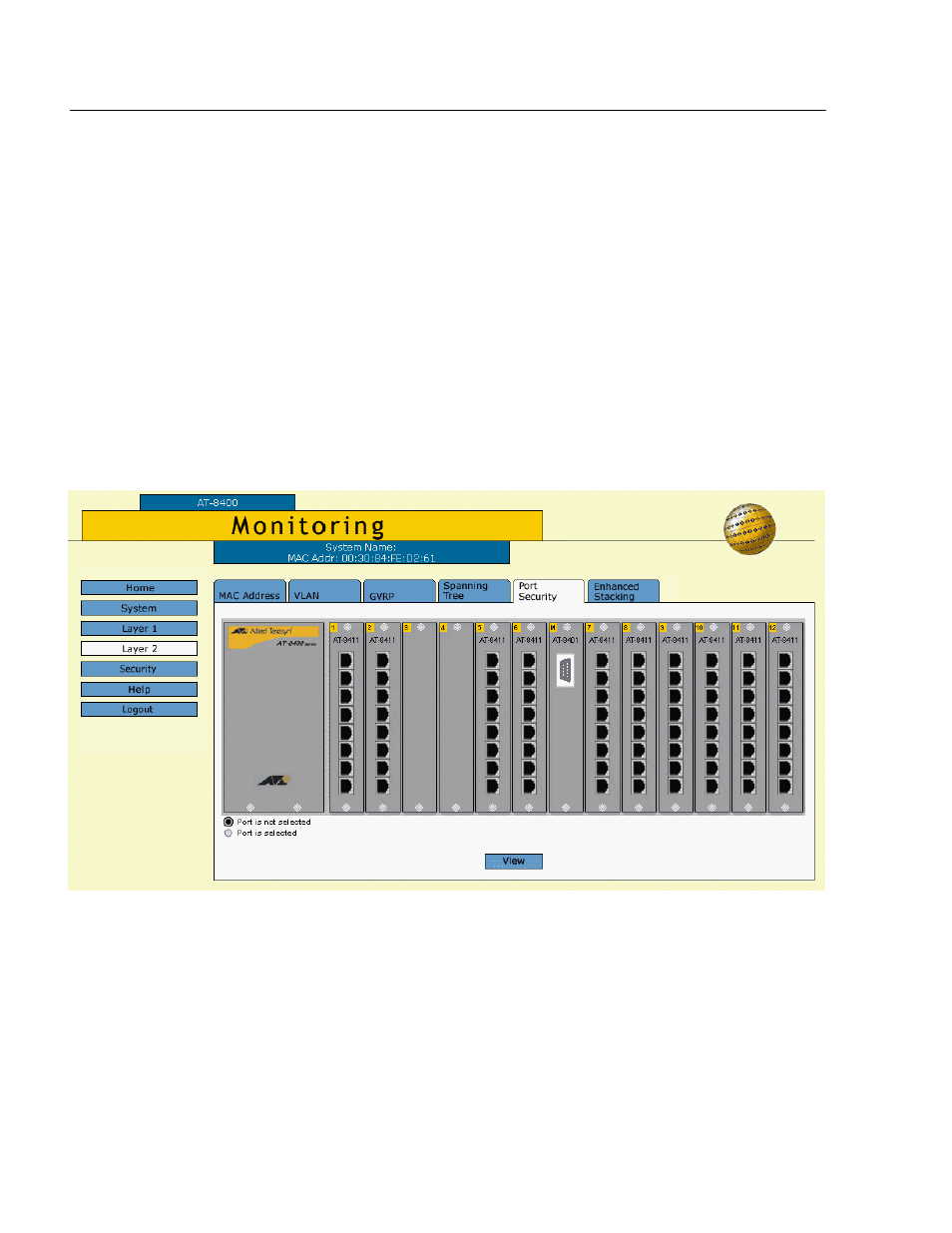

Figure 173 Monitoring Layer 2 Page, Port Security Tab
