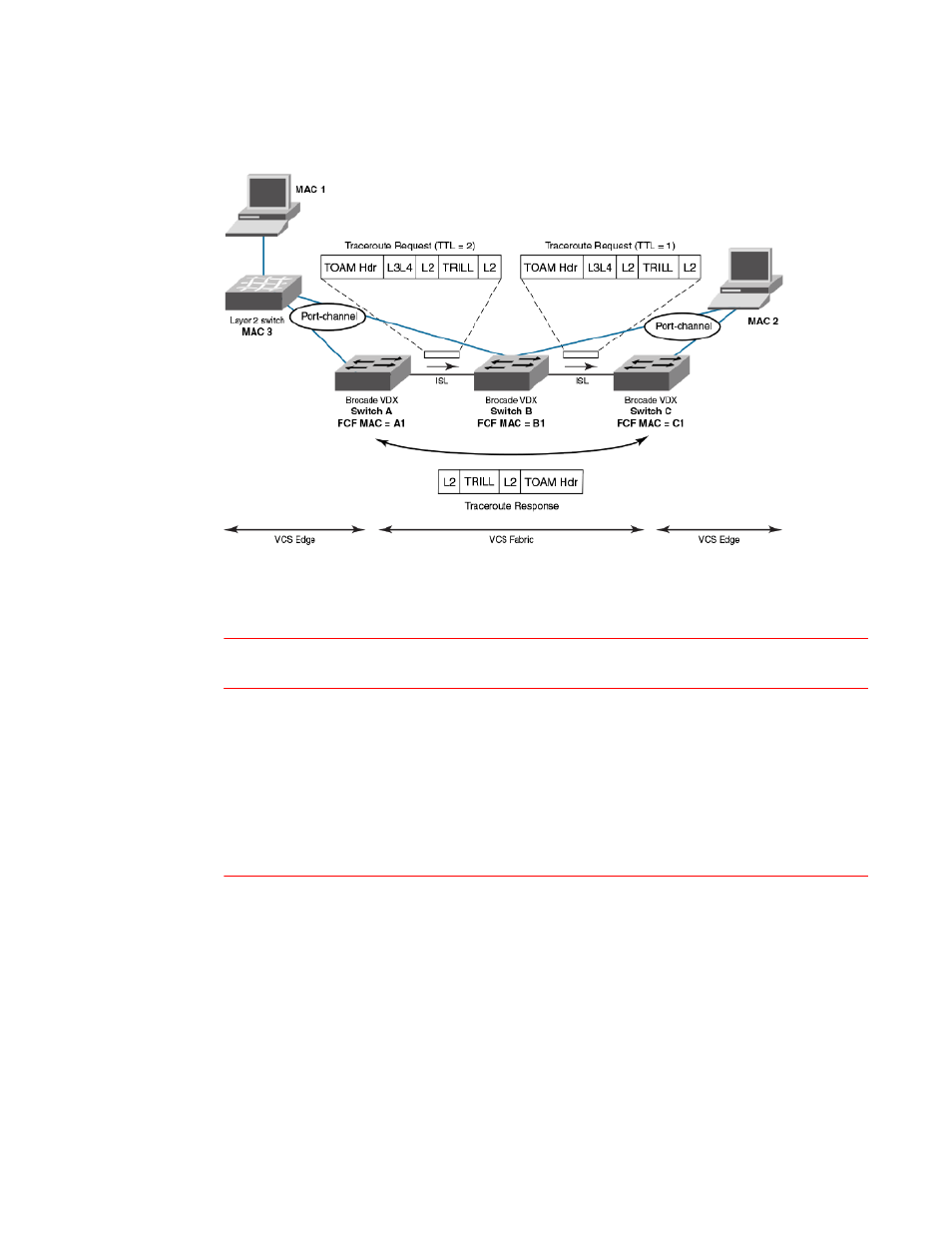

FIGURE 80 Verifying path continuity— second hop TTL count

The table below shows the packet header information for the request and response packets.
Information specific to the Layer 2 traceroute feature is show in bold.

Packet header details with Layer 2 traceroute — second hop

TABLE 103

Traceroute request — first hop
(TTL = 2)

Traceroute request — second hop
(TTL = 1)

Traceroute reply

Outer L2 DA = B1Outer L2 SA =
A1Outer 802.1q tagOuter etype =
TRILLTRILL destination RBridge ID =
CTRILL source RBridge ID = ATRILL
flags: TTL = 2 Inner L2 DA = MAC
2Inner L2 SA = MAC 1

Inner 802.1q tagInner etype = 0x800

TOAM Opcode = 5 (request)

Outer L2 DA = C1Outer L2 SA =
B1Outer 802.1q tagOuter etype =
TRILLTRILL destination RBridge ID =
CTRILL source RBridge ID = ATRILL
flags: TTL = 1 Inner L2 DA = MAC
2Inner L2 SA = MAC 1

Inner 802.1q tagInner etype = 0x800

TOAM Opcode = 5 (request)

Outer L2 DA = B1->A1Outer L2 SA
= C1->B1Outer 802.1q tagOuter
etype = TRILLTRILL destination
RBridge ID = ATRILL source
RBridge ID = CTRILL flags: TTL =
MAX (63)
Inner L2 DA = A1Inner L2
SA = B1

Inner 802.1q tagInner etype =
TRILL OAM

TOAM Opcode = 4 (reply)

Tracing a route with the l2traceroute command

In the following example, the l2traceroute command verifies the path between port 3/0/1 (source MAC
address 0050.5685.0003) and port 2/0/9 (destination MAC address 0024.3878.3720).

1. enter the show mac-address-table command to display all known MAC addresses in the network.

switch# show mac-address-table

VlanId Mac-address Type State Ports

100 0024.3878.e720 Dynamic Active Po 11

100 0050.5685.0001 Dynamic Active Po 1

101 0000.0000.0003 Dynamic Active Po 1

101 0024.3878.e720 Dynamic Active Po 11

101 0050.5685.0003 Dynamic Active Po 1

Total MAC addresses : 5
