Any tagged frames coming with a VLAN tag equal to the configured native VLAN are
processed.

‐

For ingress and egress, non-native VLAN tagged frames are processed according to the
allowed VLAN user specifications. This is called trunk mode.

NOTE
Ingress VLAN filtering is enabled by default on all Layer 2 interfaces. This ensures that VLANs are
filtered on the incoming port (depending on the user configuration).

The following illustrates the frame-processing logic for an incoming frame.

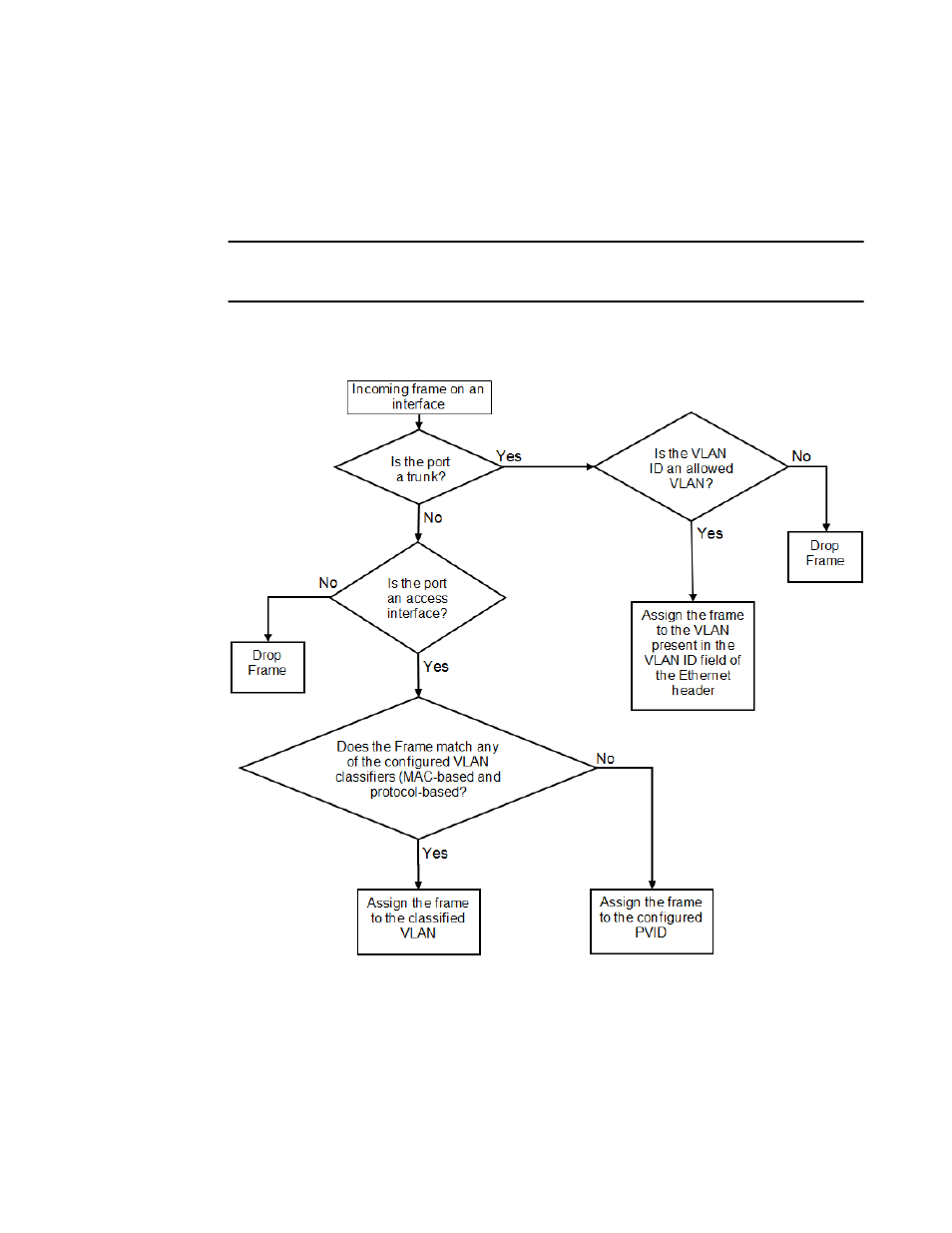

FIGURE 43 Ingress VLAN filtering

There are important facts you should know about Ingress VLAN filtering:

• Ingress VLAN filtering is based on port VLAN membership.
• Port VLAN membership is configured through the Network OS CLI.
• Dynamic VLAN registration is not supported.
• The Brocade VDX hardware does VLAN filtering at both the ingress and egress ports.

Configuring 802.1Q VLANs
