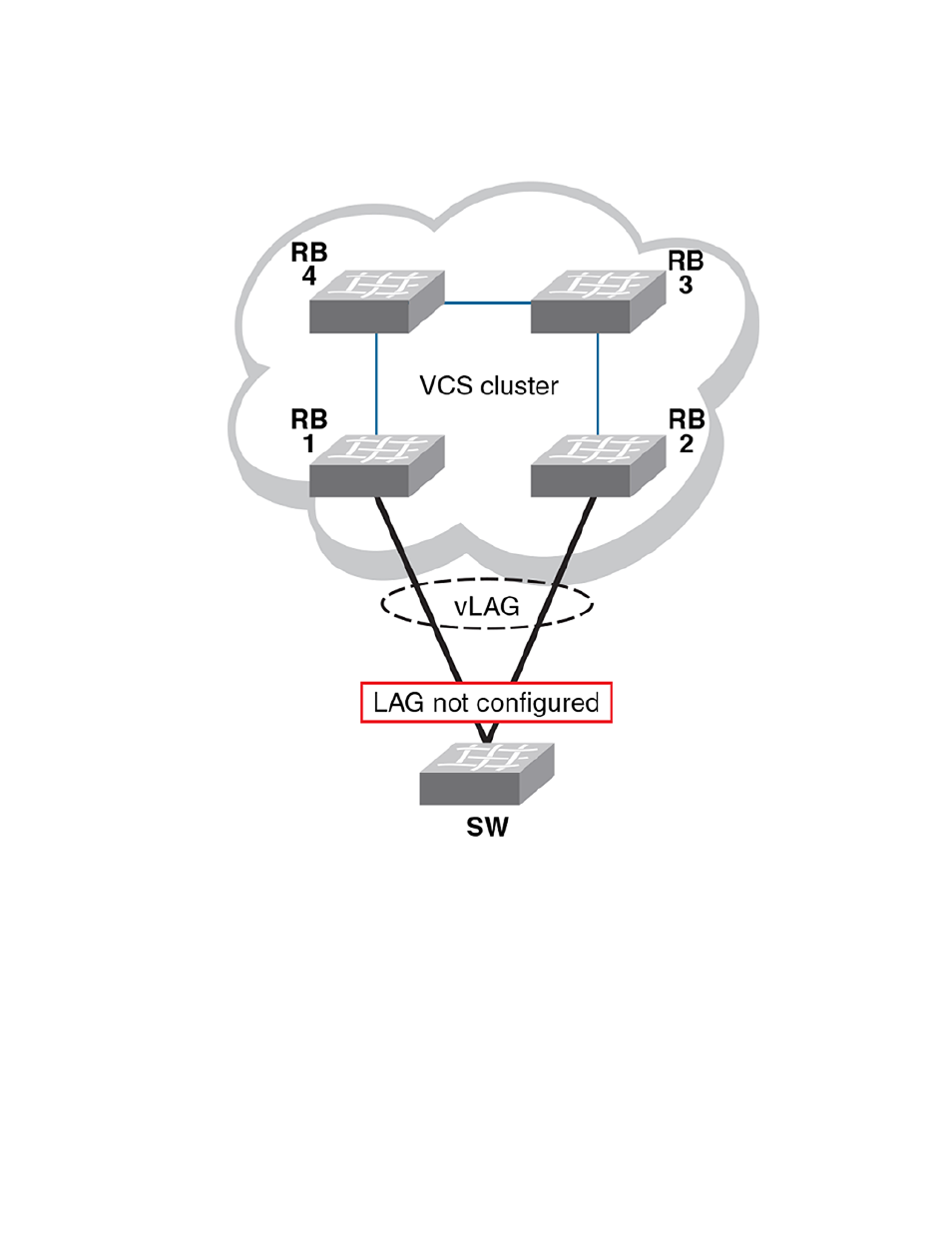

FIGURE 37 Missing LAG causes loop

The following figure shows another example for which ELD could be used to detect and break a Layer
2 loop. In this case, multiple Brocade VCS Fabric clusters are interconnected in a manner that creates
a Layer 2 loop.

Administering Edge-Loop Detection
