Brocade Network OS Administrator’s Guide v4.1.1 User Manual
Page 124

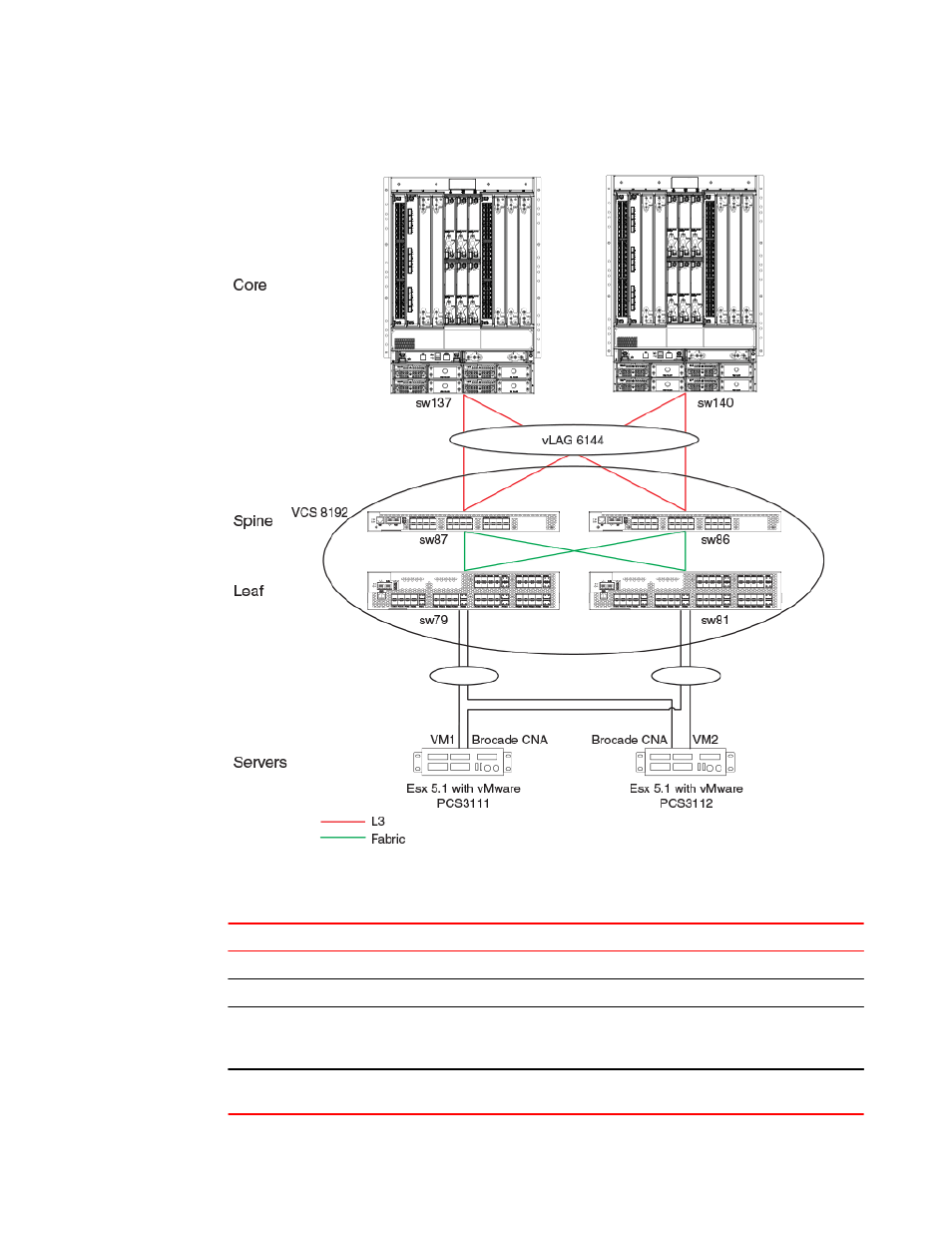

FIGURE 15 Tested topology
The following table summarizes the tested components.
Tested components and roles
TABLE 13
Position
VCS name
Chassis type
Description
Leaf
8192
VDX 6720-60
Dual-homed TOR VDX
Spine
8192
VDX 6720-24
Dual-homed
Core
NA
VDX 8770
Connected to spine nodes
of VCS 8192 through 16-
port vLAG
Servers
NA
ESX 5.1 with Brocade
CNA
Dual-homed to both leaf
nodes through a vLAG
Installing and Maintaining Firmware
124
Network OS Administrator’s Guide
53-1003225-04
