• 32 virtual interfaces. The virtual interfaces can be either Layer 3 VLAN or router ports
• 32 output interfaces
• 4,000 Layer 3 multicast group IDs
• 2,000 (S,G) forwarding entries
• 256 (*, G) forwarding entries
• A learning rate of 32 routes per second
Configuring PIM
This section shows you an example PIM Sparse deployment and configuration, based on the figure
below.

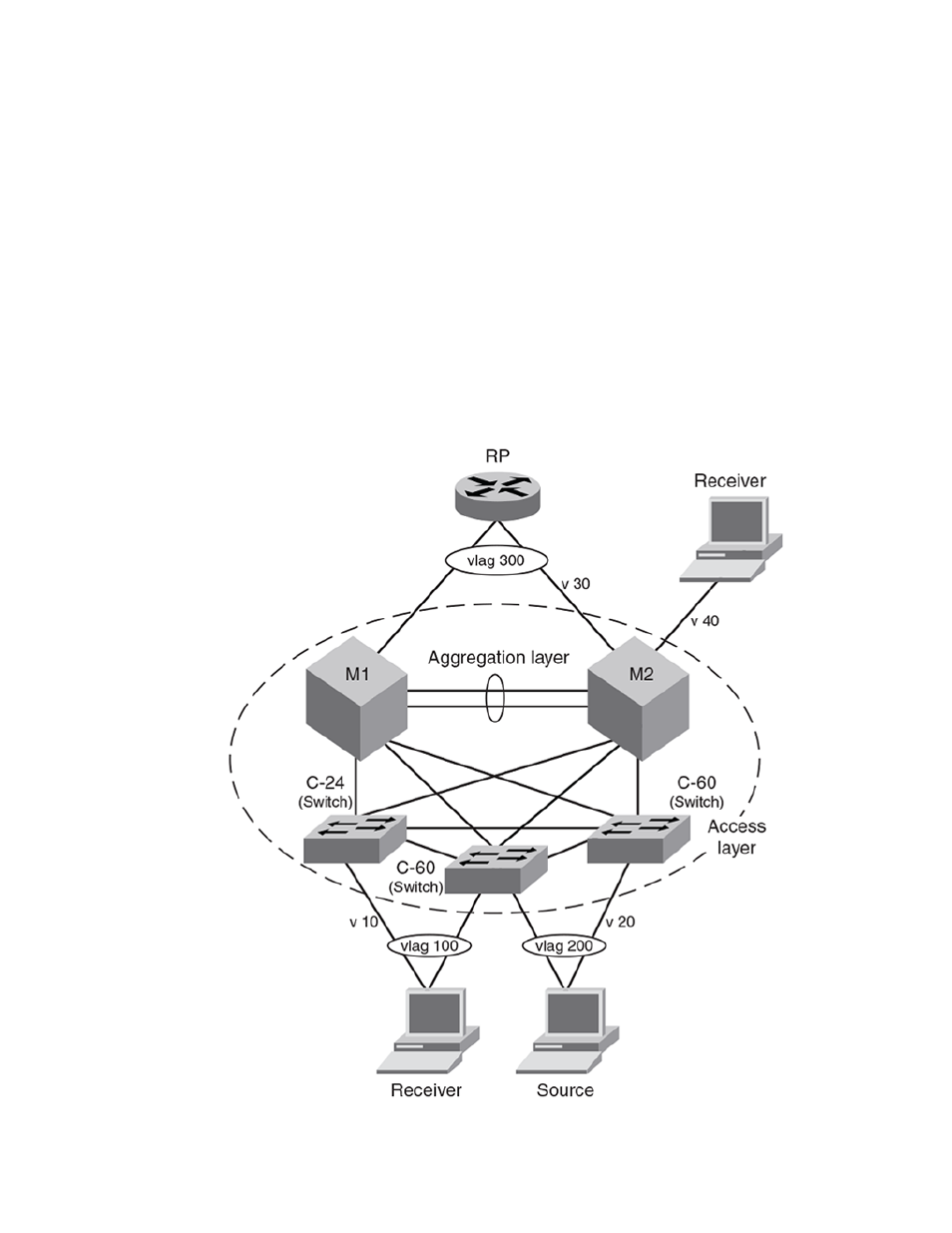

FIGURE 60 Example deployment using single VCS
Configuring PIM
Network OS Administrator’s Guide
579
53-1003225-04
