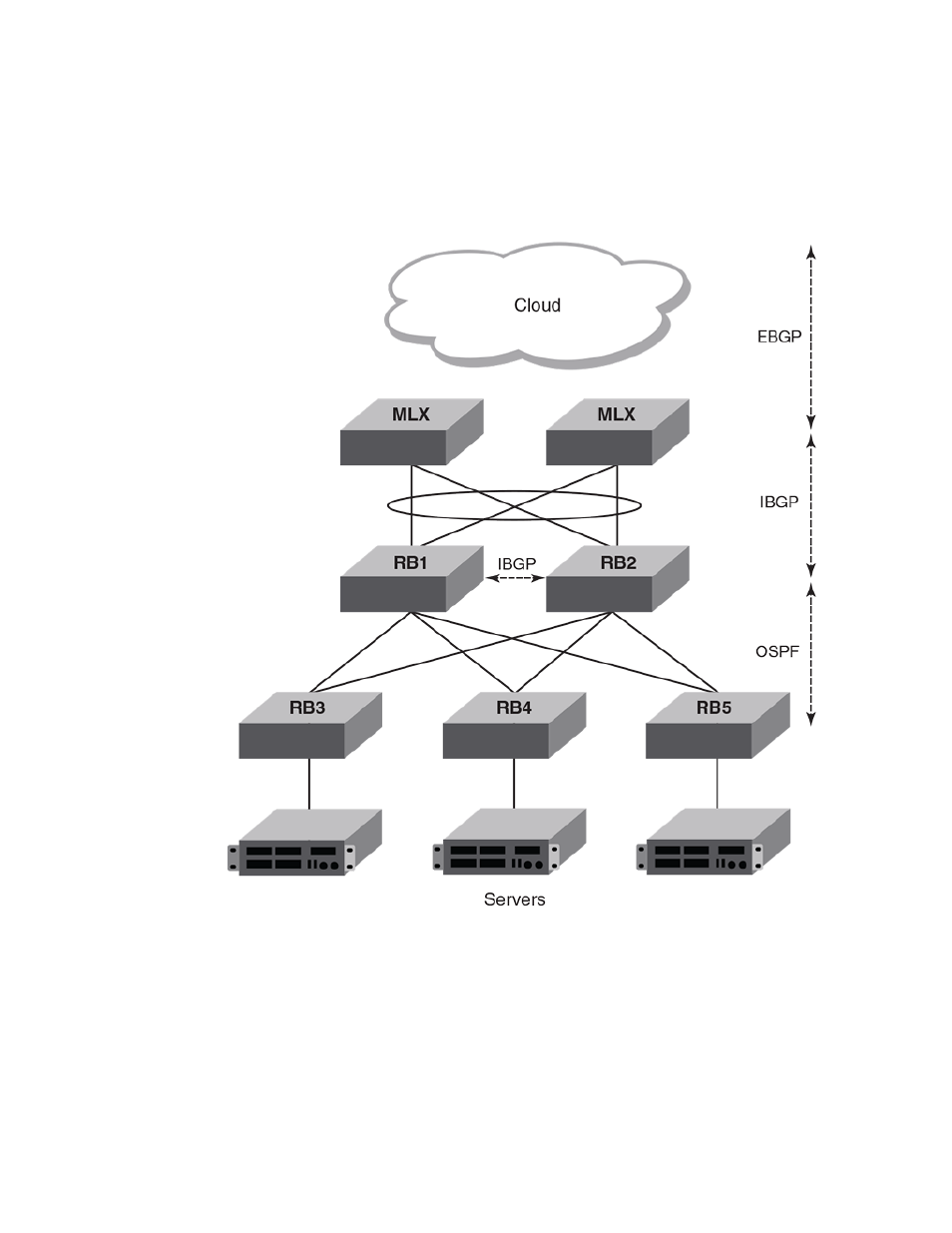

The figure below illustrates connectivity to the core through an MLX. The RBridges use OSPF and
IBGP to communicate with each other, connecting to the MLX through IBGP. The MLX connects in
turn to the core through EBGP.

FIGURE 72 Connectivity to the core through an MLX

The figure below illustrates the previous topology but without an MLX.
