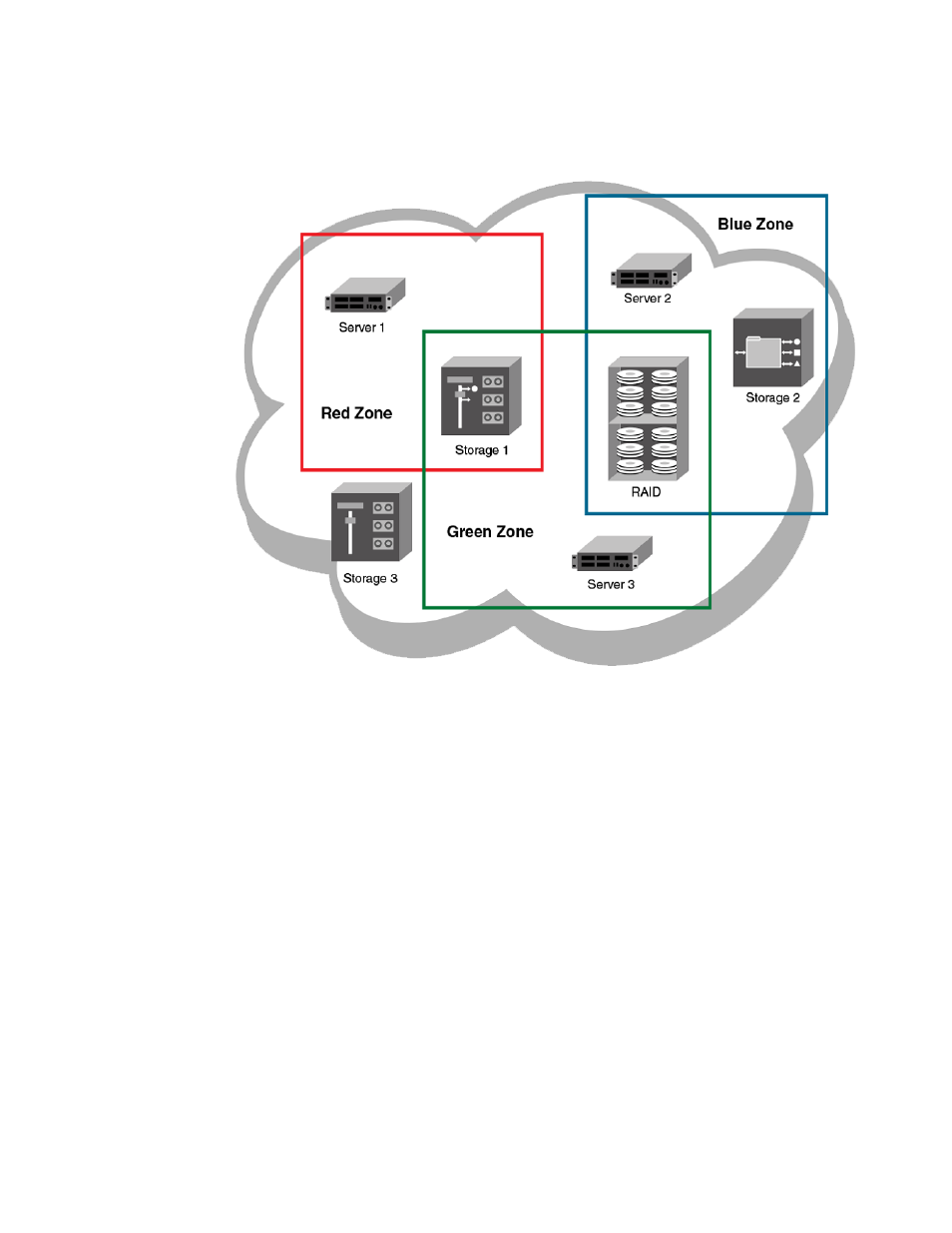

FIGURE 24 Zoning
Connecting to another network through a Fibre Channel (FC) router, you can create a Logical SAN
(LSAN) zone to include zone objects on other fabrics, including Fabric OS networks. No merging takes
place across the FC router when you create an LSAN zone. The figure below shows an example in
which Server 1, which is connected to switch in a Brocade VCS Fabric cluster, has access to local
storage and to RAID storage on a Fabric OS fabric. (For a detailed discussion of LSAN zones, refer to
LSAN zones on page 169.)
