235
INTELLIGENT ACTUATOR
Chapter 4 Commands
4.
Palletizing
Function
(2) Movement comment based on end point specified by point data --- ARCH

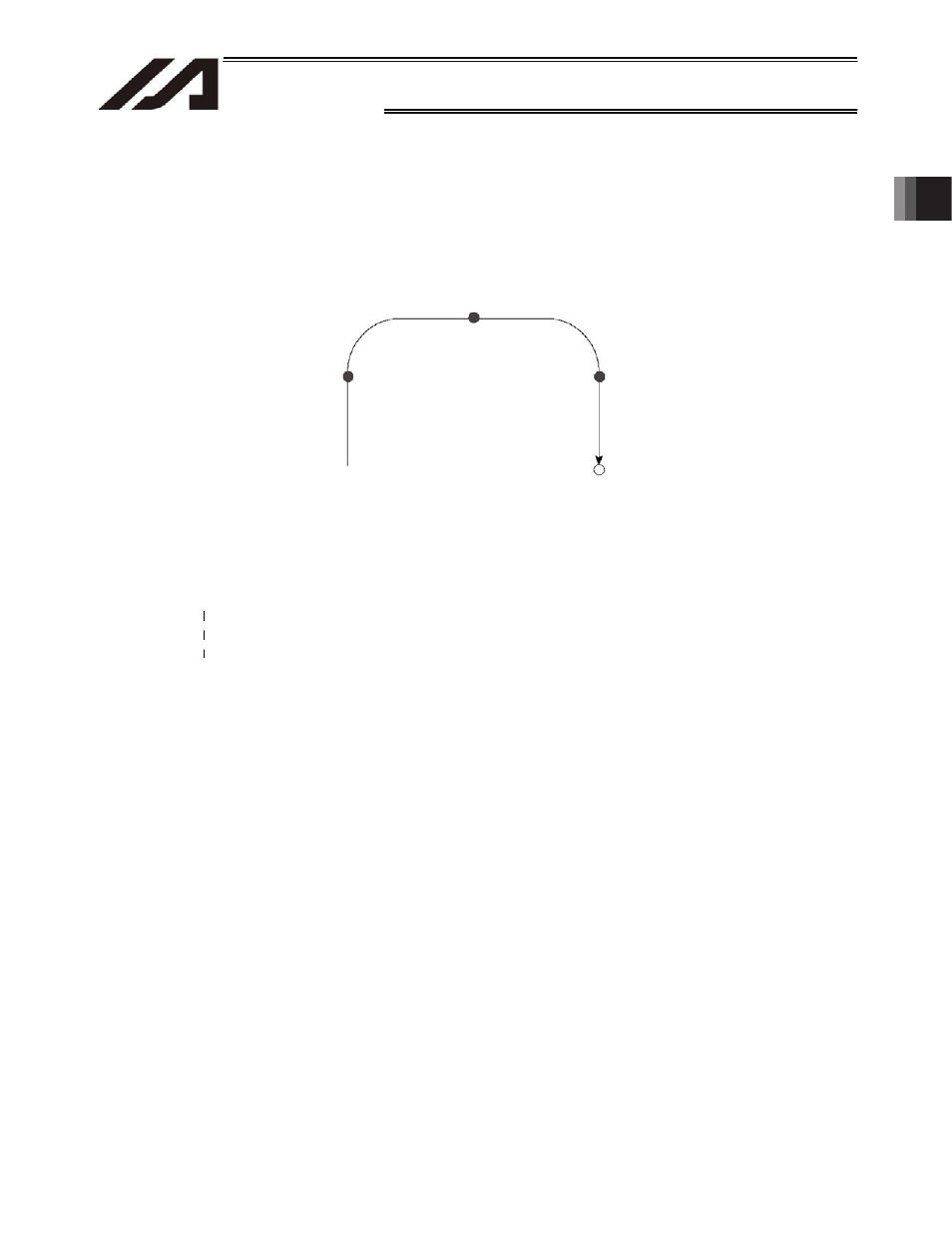

Perform arch motion using an end point specified by position data.
In the case of a linear movement in parallel with an actuator, operation can be performed only with two
axes including the applicable axis and the PZ-axis.
Arch motion must be set.
ACHZ 3
ATRG 13
11
ARCH 10 12
Start point
Highest point of arch motion
Position No. 12
Start-point arch trigger
Position No. 13
End-point arch trigger
Position No. 11
End point
Position No. 10
