The format for the g88 cycle is as follows – Rockwell Automation 8520-GUM 9/Series CNC Grinder Operation and Programming Manual Documentation Set User Manual
Page 604

Cylindrical Grinding Fixed Cycles
Chapter 17
17-30
The format for the G88 cycle is as follows:
G18;
G88Z__X__L__F__E__P__;
Table 17.H summarizes the G88 cycle parameters. For a detailed
description of these parameters, see the text below and page 17-9.
Table 17.H
G88 Cycle Parameters
Parameter:
Definition:
Default Value:
Possible Value:
Plane axis 1
1
shoulder end point
value must be programmed
abs. or inc.
Plane axis 2
1
plunge end point
value must be programmed
abs. or inc.
L
3
number of spark-out revolutions
zero
zero to 999
F
2
plunge feedrate
last feedrate programmed
valid F word
E
3
shoulder feedrate
plunge feedrate
valid F word
P
3 for G88 2 for G88.1
dress program number
from last cycle programmed
valid program number
1
must be programmed
2
must have been programmed in some previous block if omitted
3
optional

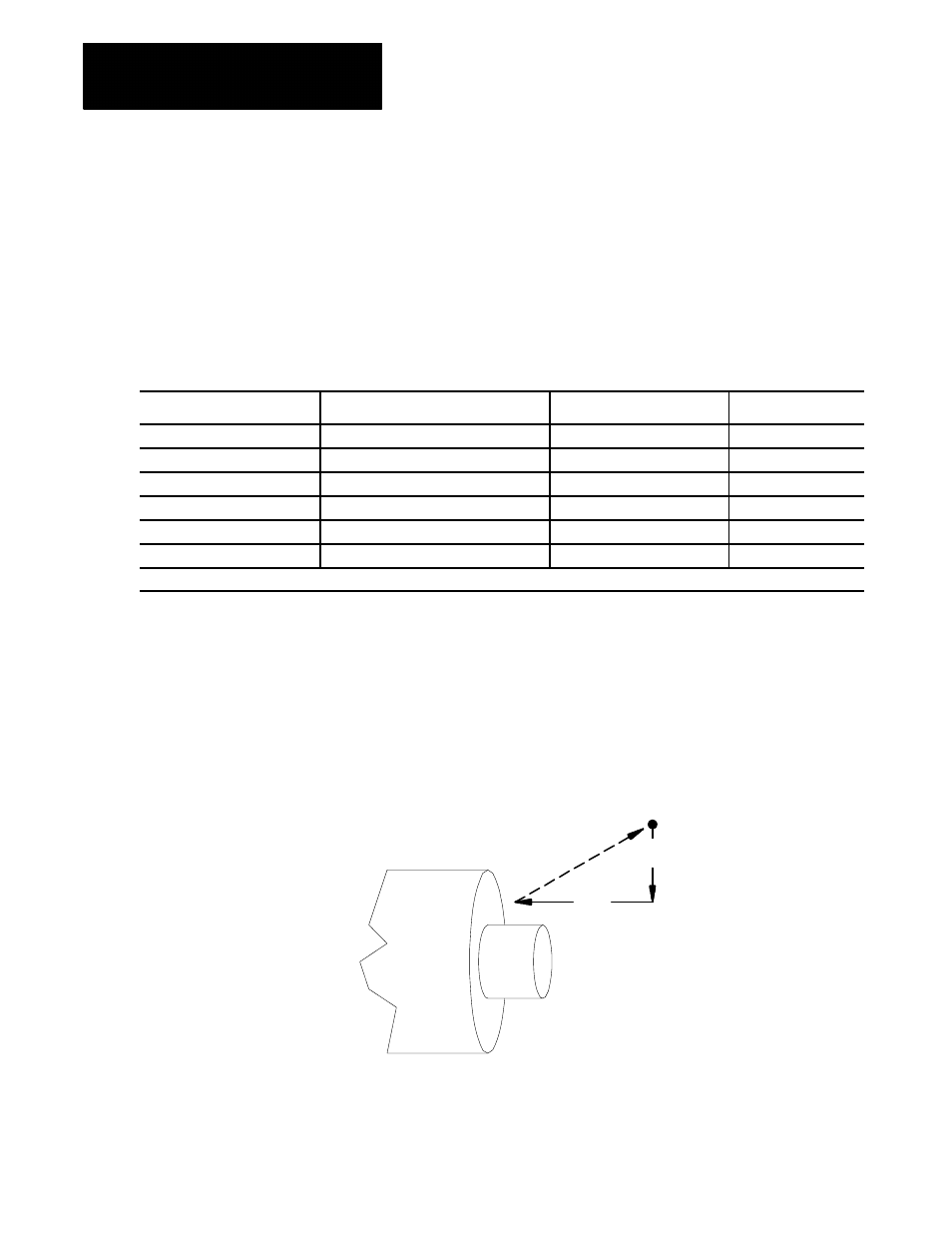

Figure 17.9 shows the axis motions that make up the G88 shoulder
grinding with diameter plunge cycle. This figure assumes that the ZX
plane (G18) is active.
Figure 17.9
G88 Shoulder Grinding with Diameter Plunge Motions
Z
Part
START
Retract
X
12059-I
17.10
G88 or G88.1 Shoulder
Grinding With Diameter
Plunge
