Zy x, Planes – Rockwell Automation 8520-GUM 9/Series CNC Grinder Operation and Programming Manual Documentation Set User Manual
Page 553
Surface Grinding Fixed Cycles
Chapter 16
16-3
Planes
The operation of the surface grinding cycles is very dependent on plane
selection. This chapter makes the following assumptions regarding plane
configuration for the control. Your axis names and designations may be
different. See the literature provided by your system installer.
PLANE
1st Axis
2nd Axis
1st Integrand
2nd Integrand
1st Parallel
2nd Parallel
G17
X
Y
I
J
U
V
G18
Z
X
K
I
W
U
G19
Y
Z
J
K
V
W
Plane selection must be made prior to executing a block that starts the
reciprocation axis or a block that starts any of the grinding fixed cycles.
The drawings and descriptions in this chapter assume an X-Y-Z cartesian
configuration for the axes on a surface grinding machine. Your machine
configuration may be different. The illustrations in this chapter generally
assume that the G19 (YZ) plane is active and the axes are configured as
shown in Figure 16.3.

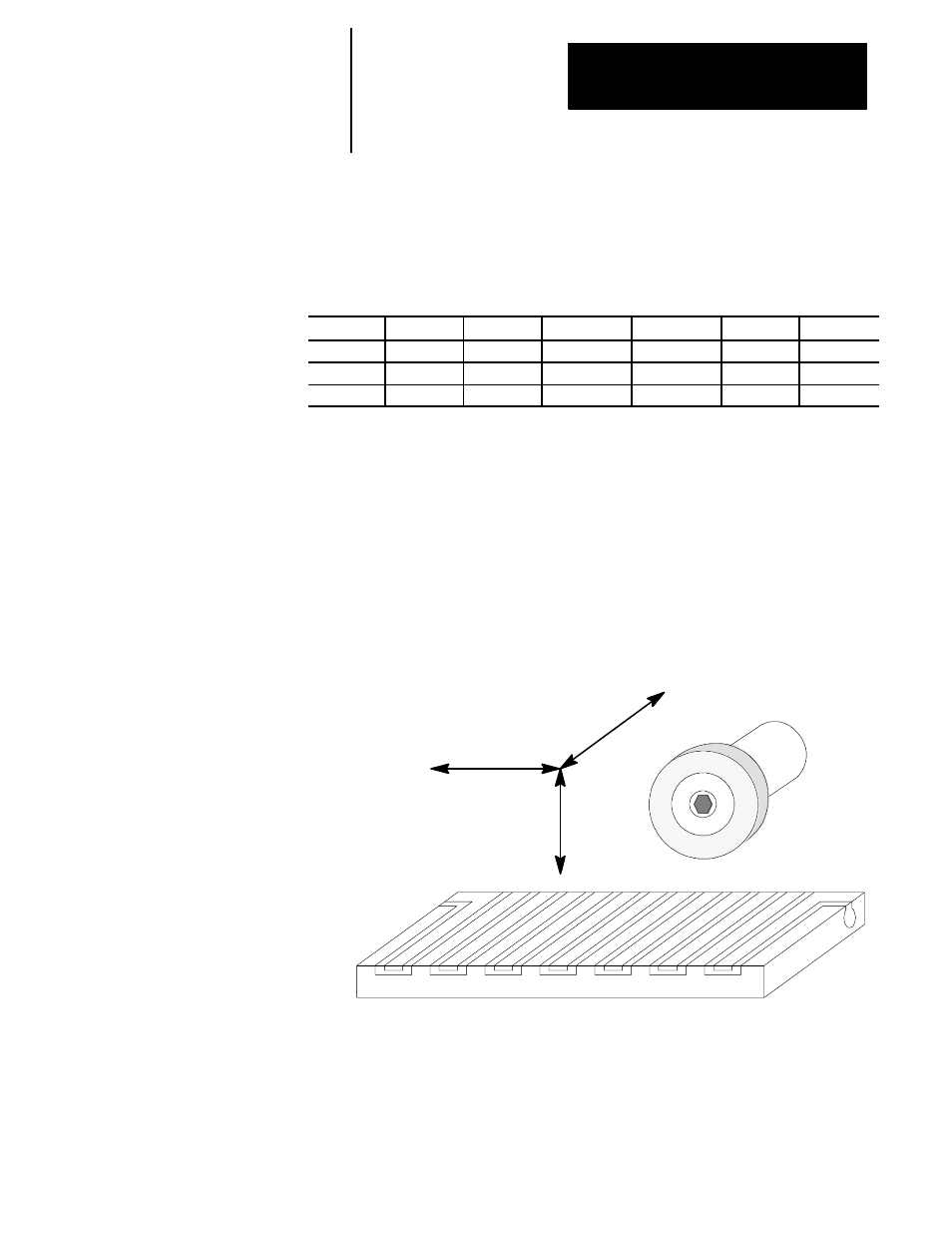

Figure 16.3
Typical Axis Configuration
Surface grinding axis
configuration assumed
in this manual.
Z
Y
X
--
+
--
--
Magnetic table
12047-I
