Chapter 11
Coordinate Control
11-25
Example 11.10
Rotating the Current Work Coordinate System
These program blocks cause the rotation of the active work coordinate
system as shown in Figure 11.15.
ABSOLUTE PROGRAM INCREMENTAL PROGRAM
N1 G54 G17 G00; N1 G54 G17 G90;
N2 G90 Z0. X0. F500; N2 G00 Z0. X0.;
/N3 G68 Z10 X10 R45; /N3 G68 Z10 X10 R45;
N4 G90 G00 Z5. X5.; N4 G91 G00 Z5. X5.;
N5 G01 Z15. F100; N5 G01 Z10 F100;
N6 X15.; N6 X10;
N7 Z5.; N7 Z-10;
N8 X5.; N8 X-10;
N9 M30; N9 G69;
N10 M30;G54 G00;
If optional block delete 1 is set to “ON,” the control follows the path
shown with a dashed line in Figure 11.15. If optional block 1 is set to
“OFF,” the control follows the path shown with a solid line in
Figure 11.15.

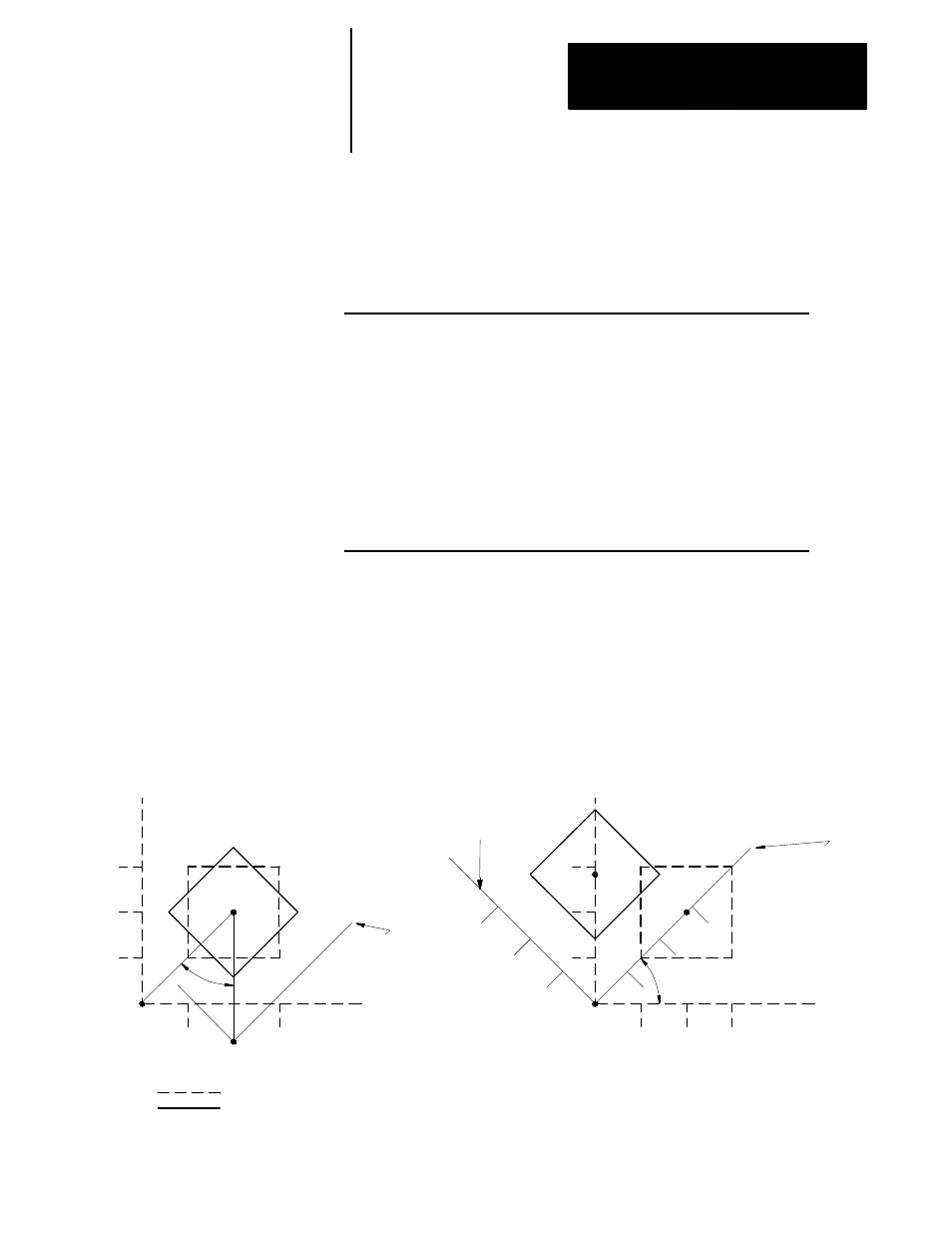

Figure 11.15
Results of Example 11.10
Initial G54 Z-axis
unrotated G54 coordinate system
rotated G54 coordinate system
Initial G54 Z-axis
Initial G54 X-axis Initial G54 X-axis
Absolute Program Incremental Program
15
10
5
5 15
Rotated
G54 Z-axis
Rotated
G54 Z-axis
5 15 10
15
10
5
45
°
45
°
15
10
5
15
10
5
Rotated G54 X-axis
12018-I
