Rockwell Automation 8520-GUM 9/Series CNC Grinder Operation and Programming Manual Documentation Set User Manual
Page 357

Chapter 11
Coordinate Control
11-41
This area is determined by the current wheel location when programmable
zone 3 is made active.

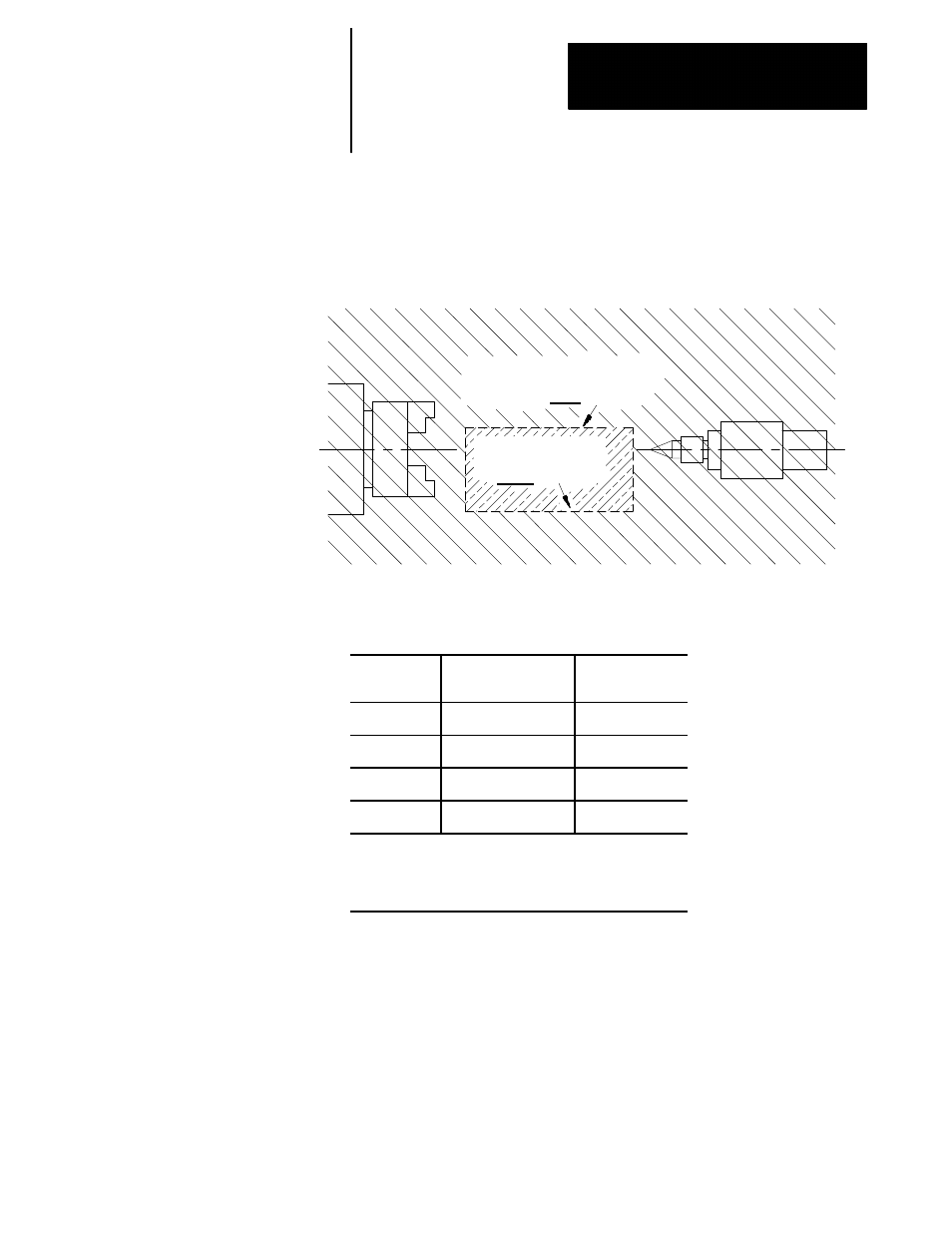

Figure 11.25
Programmable Zone 3
This area becomes Programmable
Zone 3 if the zone is enabled
when wheel is inside of this area
Programmable Zone 3
if enabled when wheel
is outside of this area
12024-I
Programmable zone 3 becomes active when either the G22 or G22.1 code
is executed. It is made inactive when the G23 or G23.1 code is executed.
Programming
this G-code:
turns Zone 2:
turns Zone 3:
G22
On
On
G22.1
Off
On
G23
Off
Off
G23.1
No Change*
Off
* A G23.1 turns on programmable zone 2 if it is the default
power up condition configured in AMP (also activated at a
control reset). G23.1 does not turn on programmable zone 2
when it is activated in a part program.
You can reassign values for the parameters that establish programmable
zone 3 by programming axis words in a G22 program block. Main axis
words (normally X and Z) define maximum zone limits. Integrand axis
words (normally I and K ) define minimum zone limits. These axis words
can vary. See documentation prepared by your system installer.
