VIS_2:
Shift Ctrl Action Key Expression
Exec E INTERN LANGUAGE
DEUTSCH
x Zoom Z PLC_VISU
If you now go online and set the focus to VIS_1, then pressing will cause
that variable PLC_PRG.automatic will be toggled. will cause a jump from
Visu1 to VIS_2.
If VIS_2 is the active window, pressing key will cause that the language within the
visualization will switch to German. here will cause a jump to visualization
PLC_VISU.
20.7.5 XML-File for Dynamic Texts
For a description how to use dynamic texts in the visualization see
• Dynamic Language Switching
• Configuration of Dynamic Language Switching
The basic file must be available in XML format (.xml). In this file texts are
assigned to identifiers (which are a combination of a prefix and a ID). In case of
normal texts and tootip texts these combinations can be entered in the configuration
of a visualization element, in order to get displayed the respective text in online mode.
In case of an alarm table the prefix and ID are given by the "path" of the alarm group
in the alarm configuration (prefix) and the line number of the text definition in the
alarm group configuration table (ID).

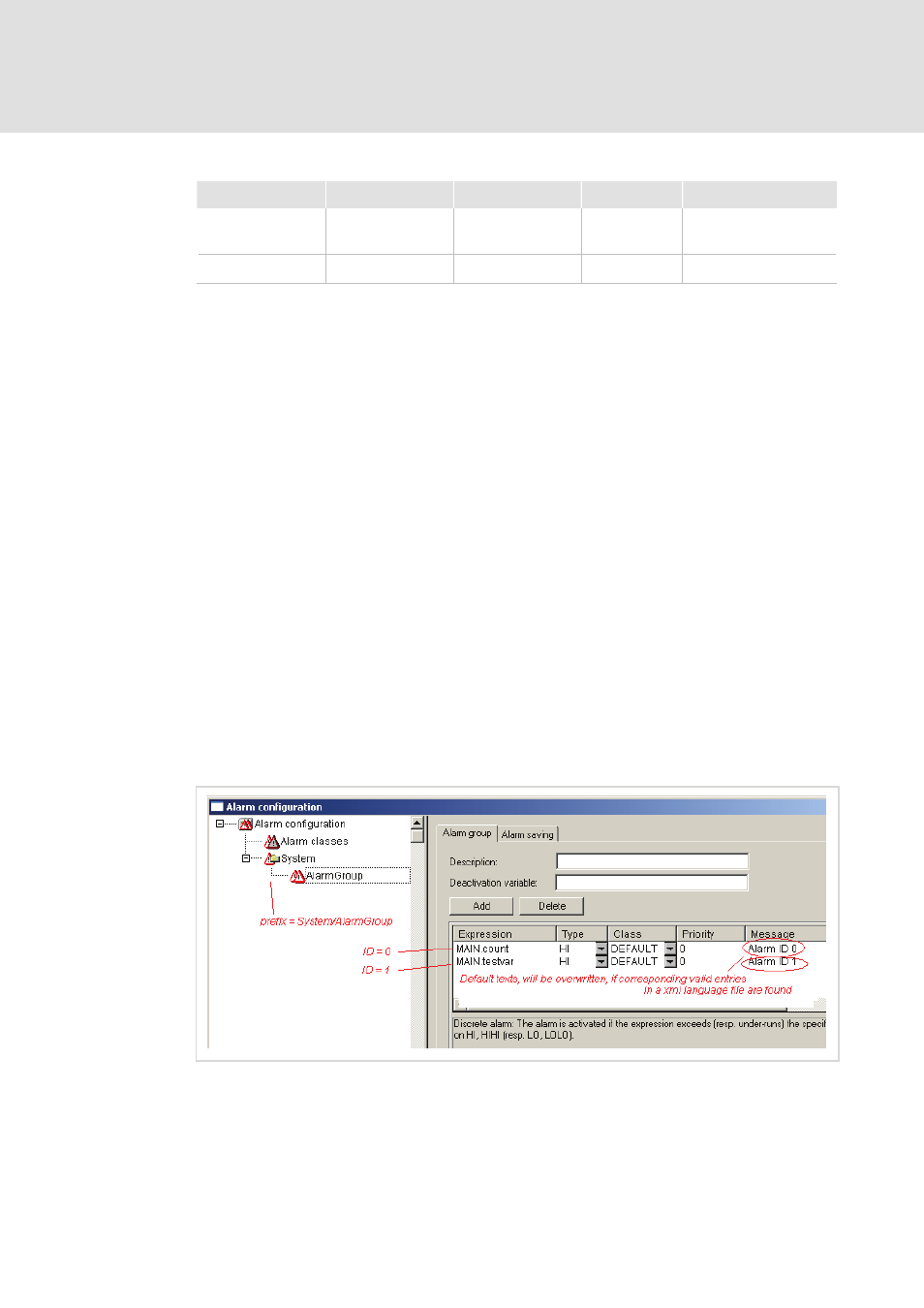

Example picture showing prefix and ID in an alarm configuration
In the header section of the file a default language and a default font assigned to a
language can be defined. See an example of an description file at the end of this page.
