The Individual Components
DMS 3.2 EN 02/2011 TD29 161
• "(Properties changed)": This text is attached to the POU name in the project
structure tree, if differences in the properties of the POU have been detected.
• "(Access rights changed)": This text is attached to the POU name in the project
structure tree, if differences in the access rights of the POU have been detected.
2. POU contents in compare mode:
By a double click on a line in the structure overview, which is marked red because of a
modification, the POU is opened.
If it is a text or graphic editor POU, it will be opened in a bipartited window. The
content of the reference project (right side) is set opposite to that of the actual project
(left side). The smallest unit which will be regarded during comparison, is a line
(declaration editor, ST, IL), a network (FBD, LD) or an element (CFC, SFC). The same
coloring will be used as described above for the project overview.

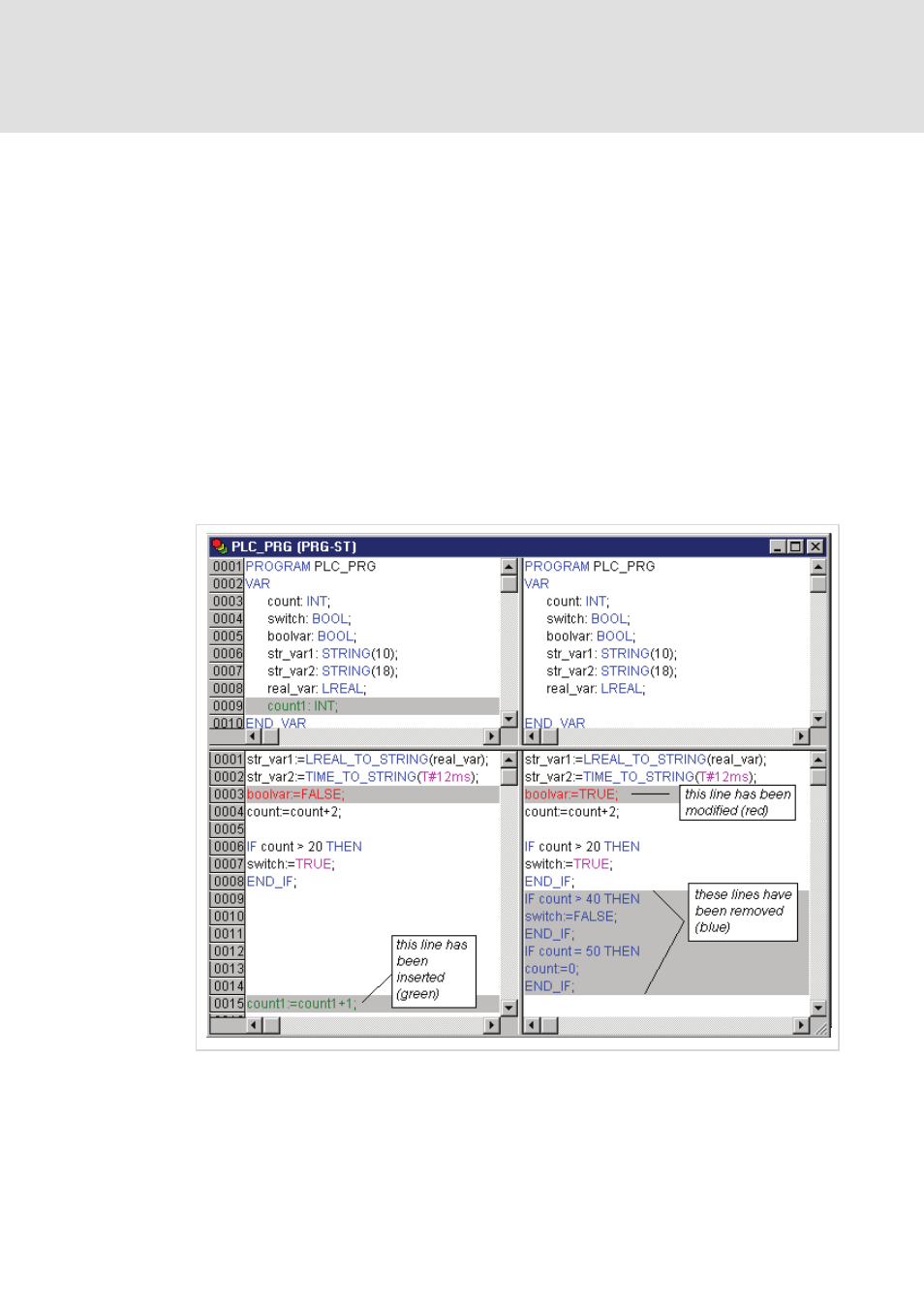

Example:
Example, POU in compare mode
