Configuration of a trend element in a visualization:
Orientation Left-Right, History activated
Horizontal axis: Division lines: T#2s, Duration: T#10s, Main: T#1s, Sub scale: T#500ms,
Degree if accuracy: T#200ms, Legend: Time Format ('HH':'mm':'ss'), Scaling T#2s.
Symbol bar activated.
Vertical axis: Division lines visible, Scale: 10, dotted, grey; Scale left, Start: 0, End: 100,
Main: 10, Sub scale: 5; Legend: 10; Symbol bar activated.
Variables:
1. Variable PLC_PRG.rsinus, blue line, Marker: PLC_PRG_TRD.rSlider1;
2. Variable PLC_PRG.n, red line, Marker: PLC_PRG_TRD.rSlider2
Curve configuration: Straight line, no tolerance band
Configuration of two display fields for the current record values provided by the
marker variables:
Rectangle element 1: Category Text: insert "%s" in the Content field; Category
Variables: insert in field Textdisplay: PLC_PRG.rSlider1
Rectangle element 2: Category Text: insert "%s" in the Content field; Category
Variables: insert in field Textdisplay: PLC_PRG.rSlider2
(additionally insert a rectangle element at the left border of the rectangle elements 1
and 2, showing the curve color of the corresponding record variable)

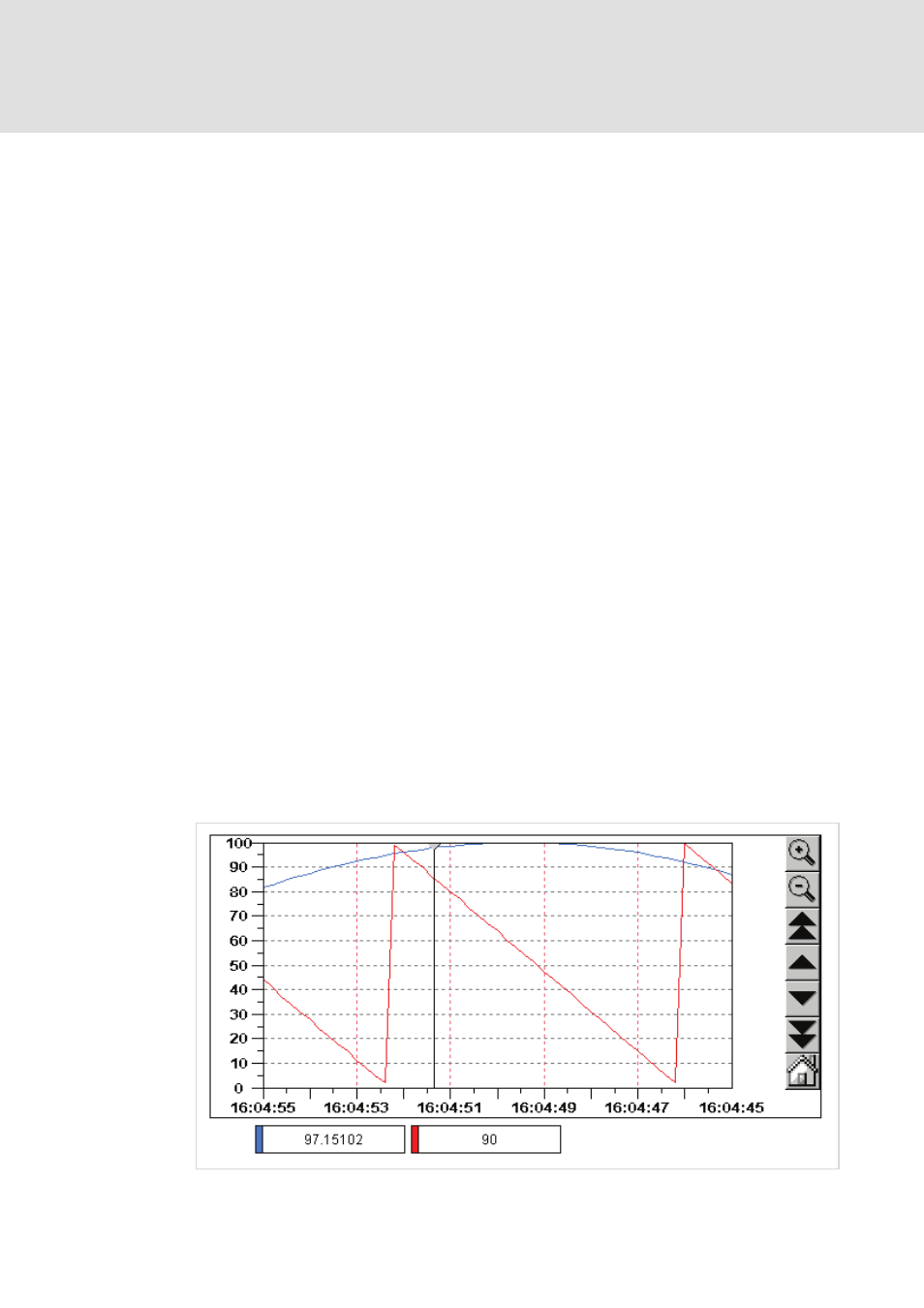

Result in online mode after login and start of the program:
