Axis:
Horizontal Axis:

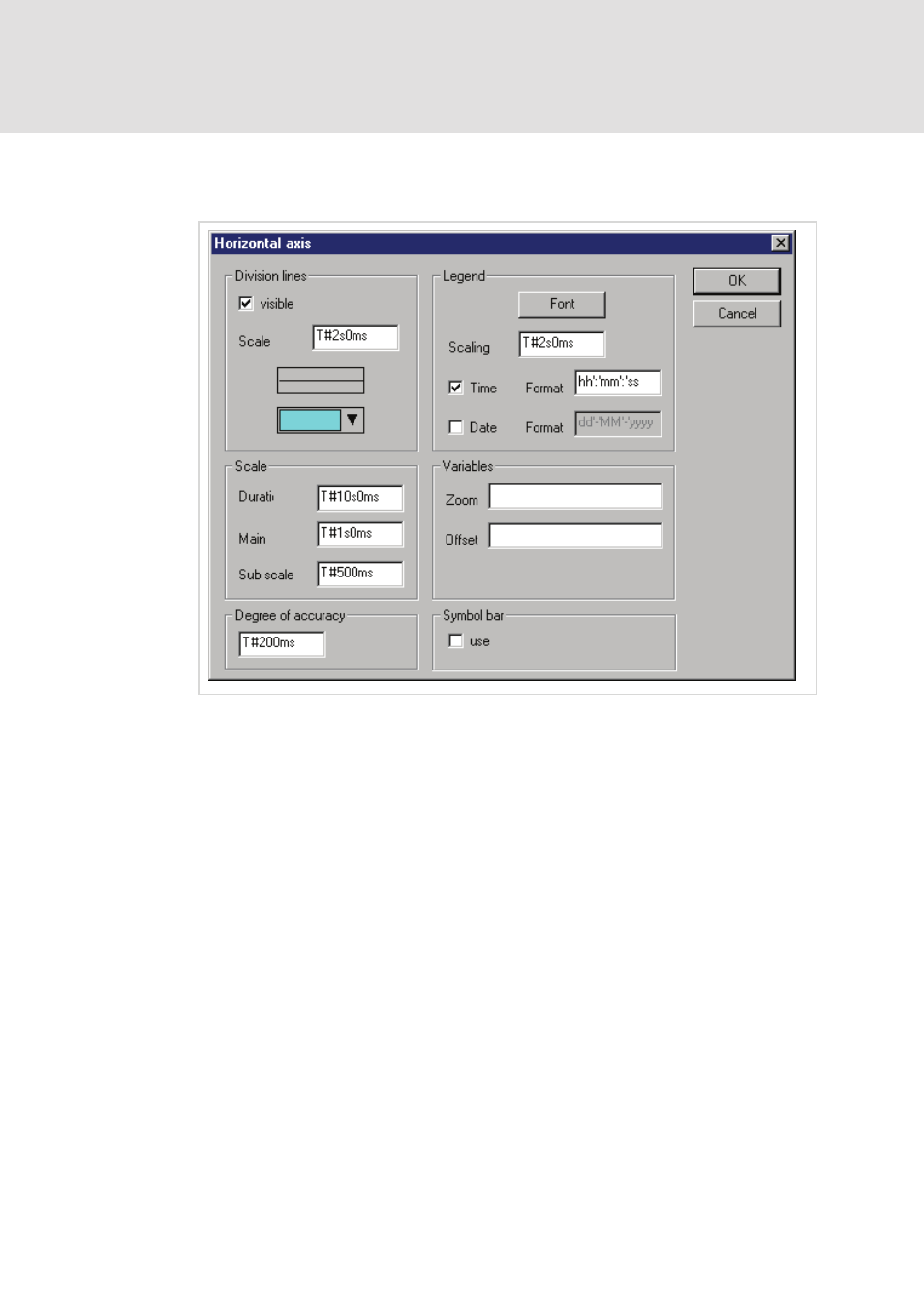

Dialog for configuration of the horizontal axis in the trend element
Division lines: Activate option 'visible', if vertical division lines should be displayed
which are elongating the scale marks. In this case define the 'Scale': The given
number defines the interval between the division lines on the horizontal axis. Type
(normal ___, dashed _ _ _, dotted ....., dashdotted _ . _ .) and color of the lines can
be defined in dialogs which will open when you perform a mouse-click on the
corresponding rectangle showing the currently set line type resp. color.
Scale: The shown range of the scale is determined by the entry for Duration. If here
e.g. " T#20s0ms" is defined, the scale will display a period of 20 seconds. The Main
division and the Sub scale division, which will be displayed by the means of long
and short marks are to be defined according to the same syntax.
Degree of accuracy: Define here (in the standard format for dates, e.g. T#5ms) the
interval for displaying the current values of the variables.
