L-force | PLC Designer
Editors in PLC Designer
266 DMS 3.2 EN 02/2011 TD29
7.2.22 Declaration Editors in Online Mode
In online mode , the declaration editor changes into a monitor window. In each line
there is a variable followed by the equal sign (=) and the value of the variable. If the
variable at this point is undefined, three question marks (???) will appear. For function
blocks, values are displayed only for open instances (command: 'Project' 'Open
instance').

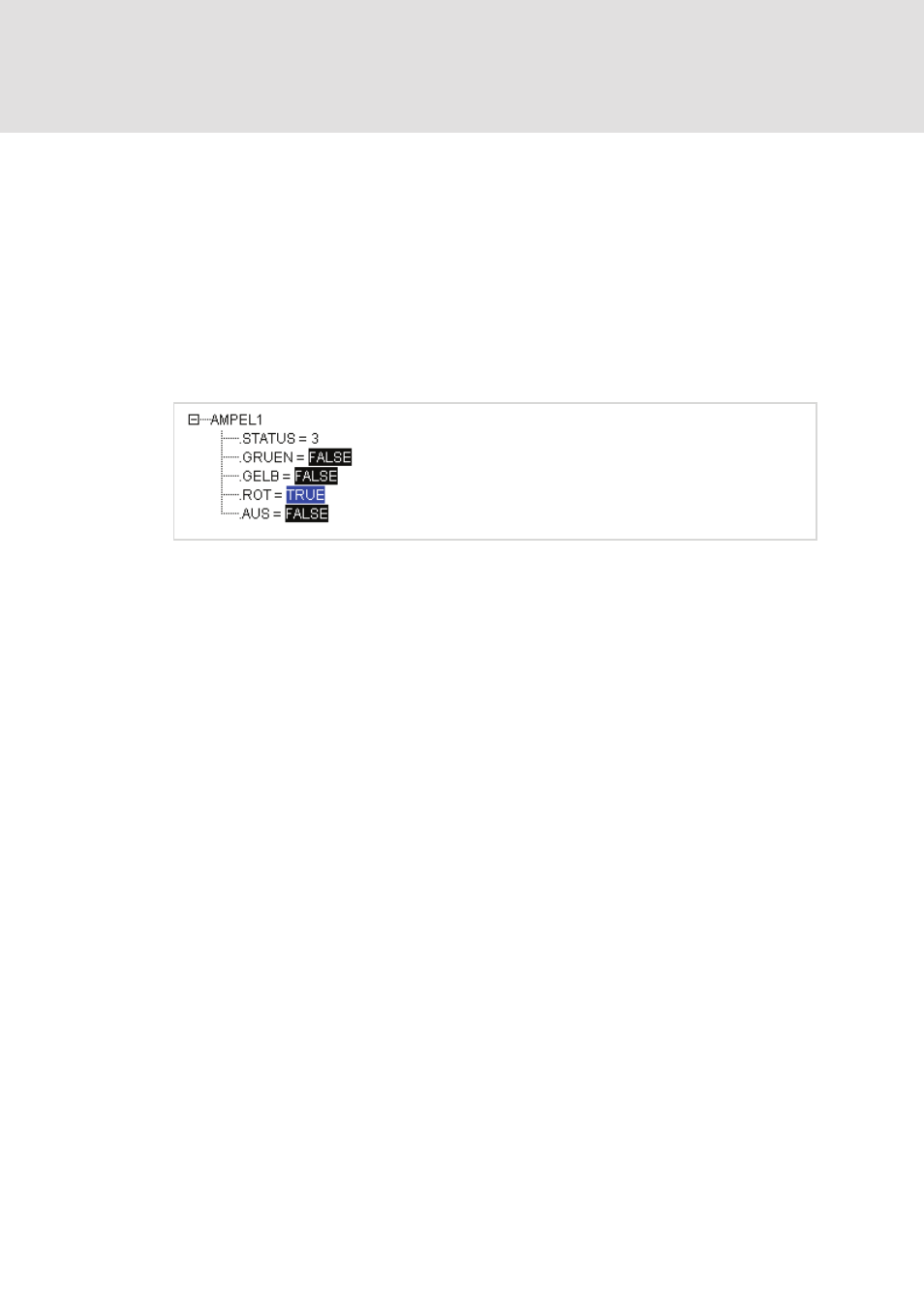

In front of every multi-element variable there is a plus sign. By pressing or
after doubleclicking on such a variable, the variable is opened up. In the example, the
traffic signal structure would be opened up.
When a variable is open, all of its components are listed after it. A minus sign appears
in front of the variable. If you doubleclick again or press , the variable will be
closed, and the plus sign will reappear.
Pressing or doubleclicking on a single-element variable will open the dialog
box to write a variable. Here it is possible to change the present value of the variable.
In the case of Boolean variables, no dialog box appears; these variables are toggled.
The new value is displayed after the variable, in pointed brackets and in turquoise
color, and remains unchanged. If the 'Online' 'Write values' command is given, then all
variables are placed in the selected list and are once again displayed in black.
If the 'Online' 'Force values' command is given, then all variables will be set to the
selected values, until the 'Release force' command is given. In this event, the color of
the force value changes to red.
