'Extras' 'Add label to parallel branch'
In order to provide a newly inserted parallel branch with a jump label, the transition
occurring before the parallel branching must be marked and the command 'Add label
to parallel branch' must be executed. At that point, the parallel branch will be given a
standard name consisting of „Parallel" and an appended serial number, which can be

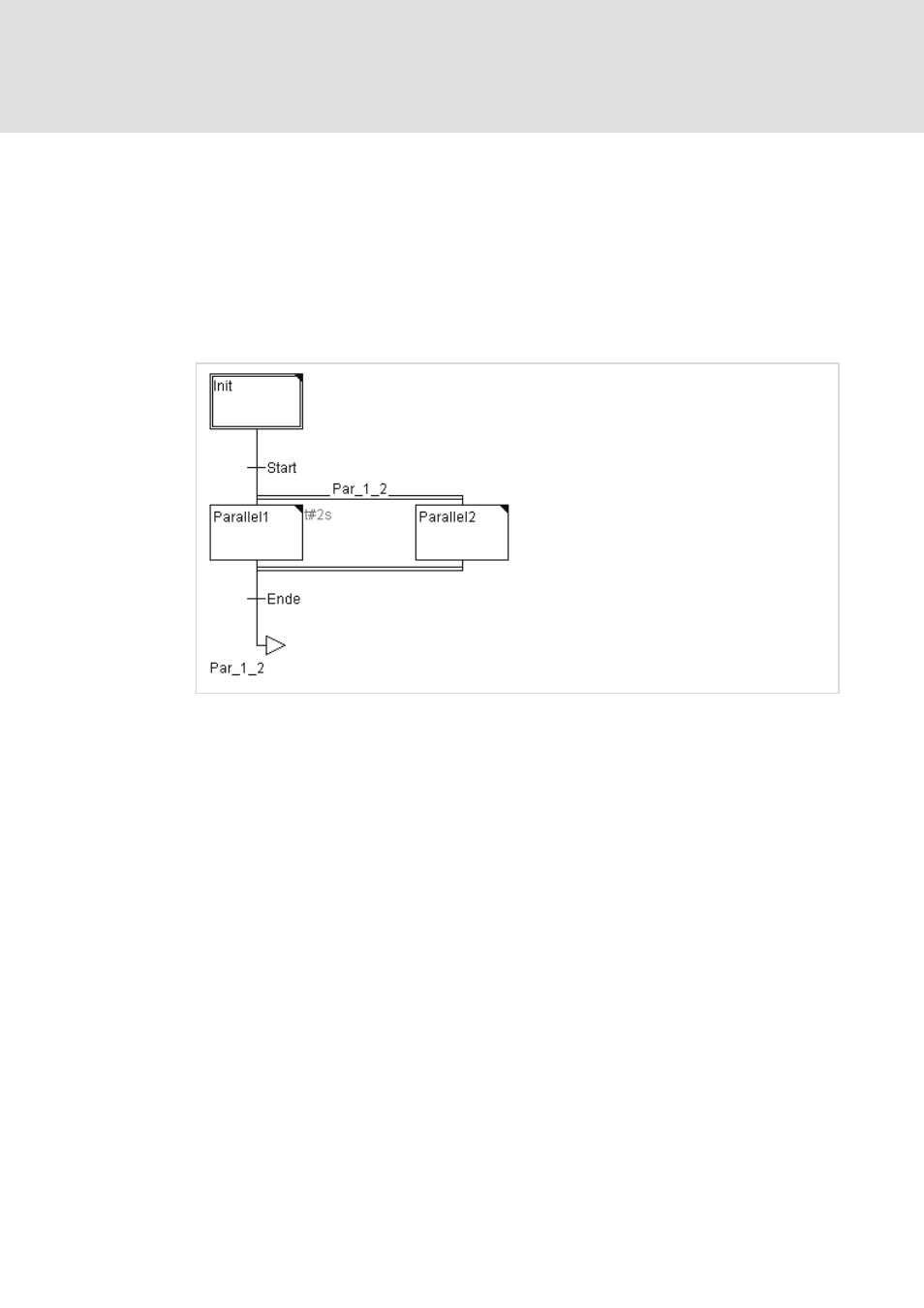

edited according to the rules for identifier names. In the following example, "Parallel"
was replaced by "Par_1_2" and the jump to the transition "End" was steered to this
jump label.
Delete a label
A jump label can be deleted by deleting the label name.
'Extras' 'Paste after'
This command pastes the SFC block on the clipboard after the first step or the first
transition of the marked block. (Normal copying pastes it in front of the marked
block.) This will now be executed, if the resulting SFC structure is correct, according to
the language norms.
