The Resources
418 DMS 3.2 EN 02/2011 TD29
The possible stati:
Idle has not been started since last update; especially used for event tasks
Running has been started at least once since last update
Stop stopped
Stop on BP stopped, because breakpoint in task is reached
Stop on Error Error, e.g. division by zero, page fault etc.
Stop Watchdog cycle time has been exceeded
The task entry will be displayed red coloured in case of status 'Stop on Error' or 'Stop
Watchdog' .

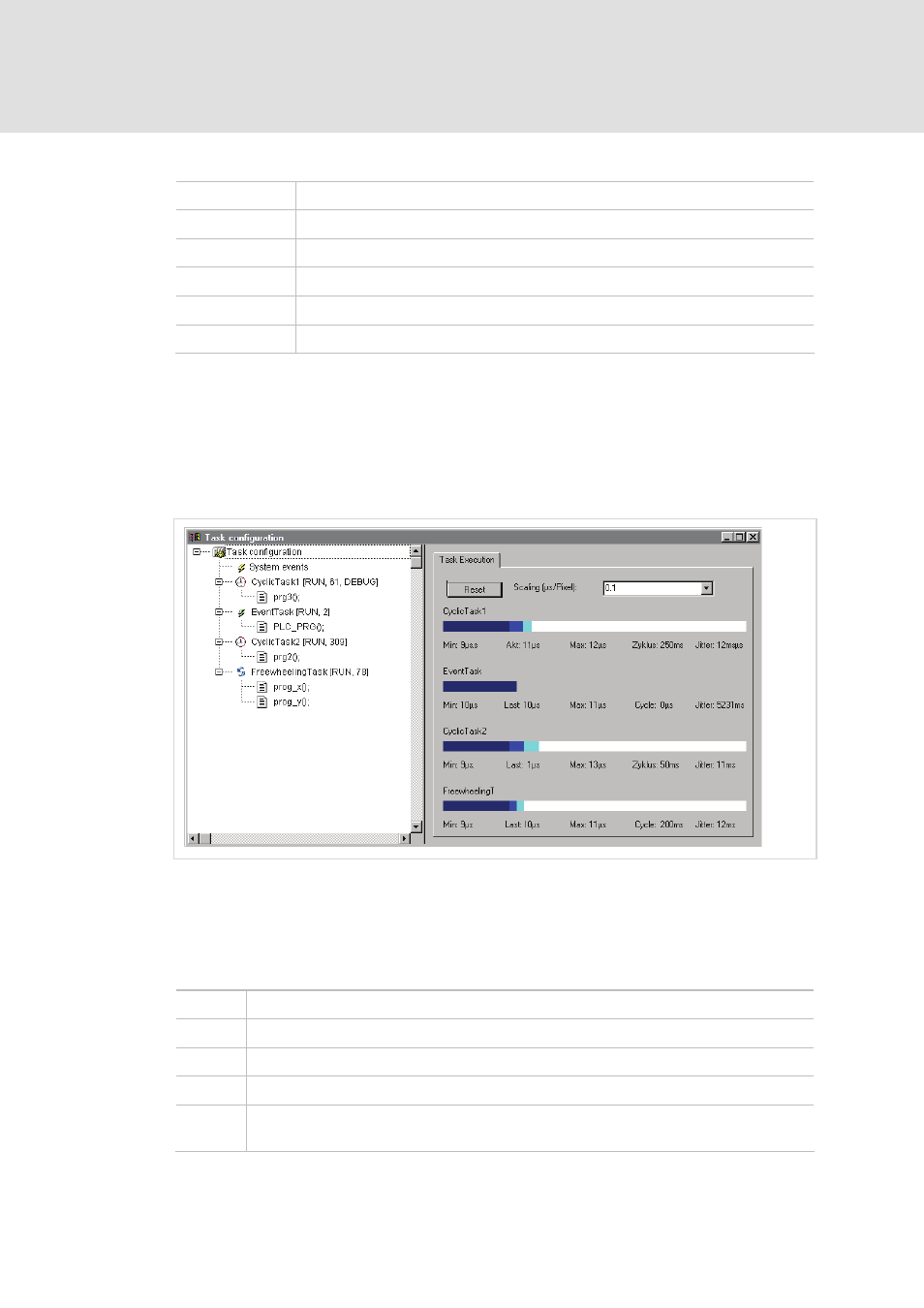

Display of the time flow of the tasks
If the entry 'Taskconfiguration' is selected in the configuration tree, the utilization of
the tasks will be displayed in bar charts in the right part of the window:
Display of the Task Execution in Online Mode
For each task a bar chart is displayed. The length of the bar represents the length of a
cycle period. Below the bar as well as by appropriate marks on the bar the following
measurement values are illustrated:
Min: minimum measured runtime in μs
Akt: last measured runtime in μs
Max: maximum measured runtime in μs
Cycle: total length of a cycle in μs
Jitter: maximum measured jitter (time between when the task was started and when the
operating system indicates that it is running) in μs
