Cursor Positions in the LD Editors
The following locations can be cursor positions, in which the function block and
program accessing can be handled as contacts. POUs with EN inputs and other POUs
connected to them are treated the same way as in the Function Block Diagram.
Information about editing this network part can be found in the chapter on the FBD
Editor.

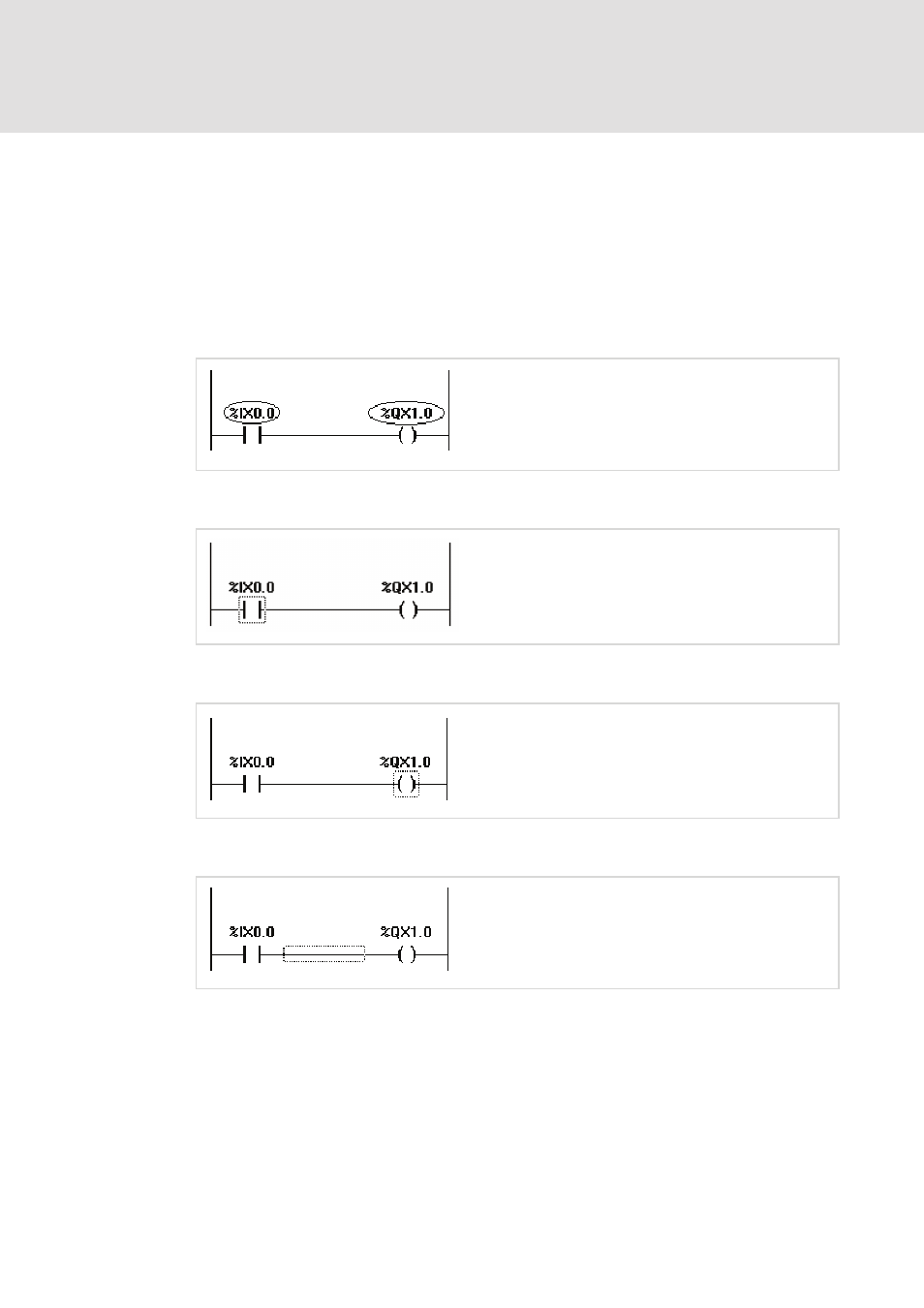

1. Every text field (possible cursor positions framed in black)
2. Every Contact or Function Block
3. Every Coil
4. The Connecting Line between the Contacts and the Coils.
