L-force | PLC Designer
Editors in PLC Designer
328 DMS 3.2 EN 02/2011 TD29

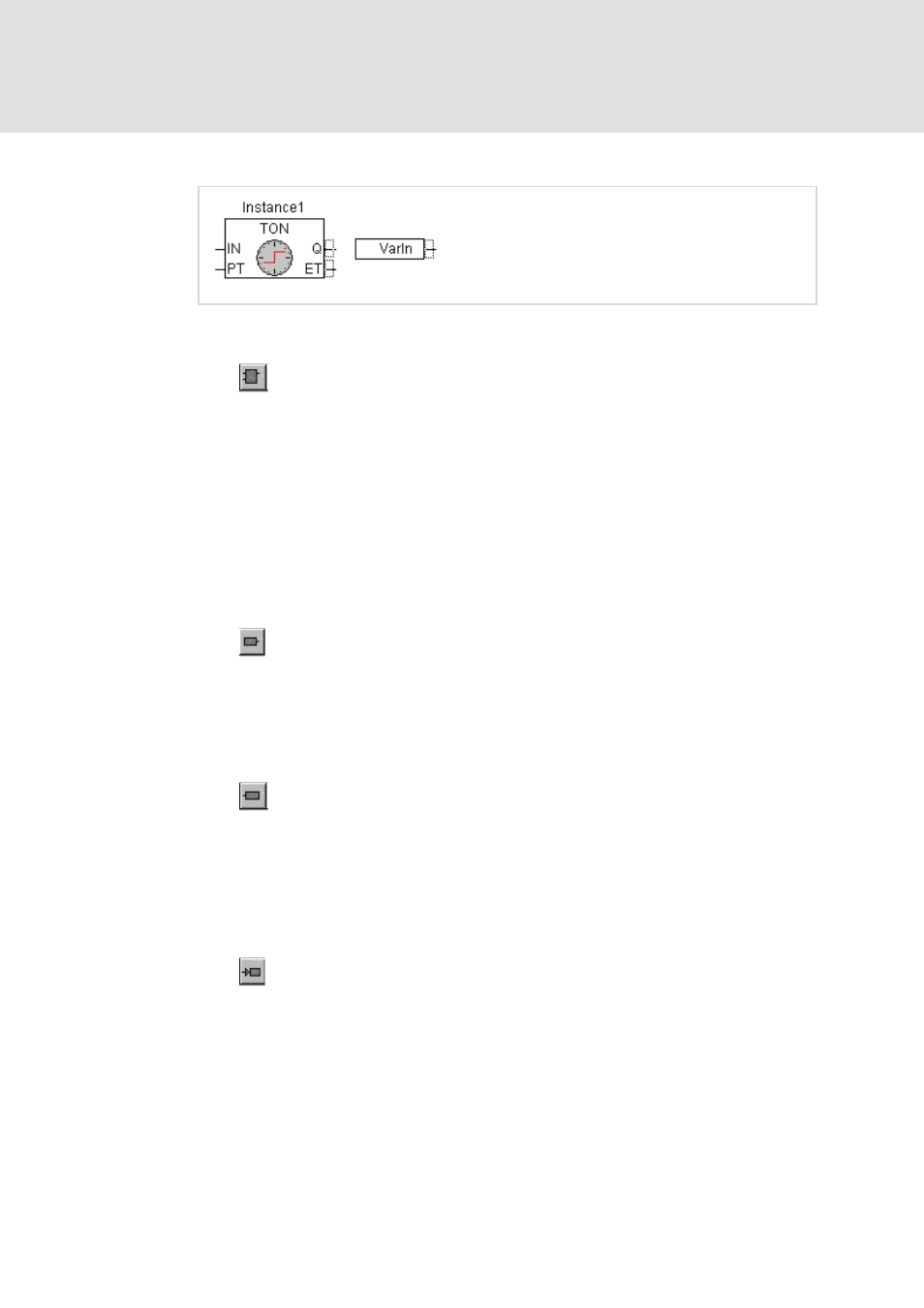

• Outputs for the elements box and input:
'Insert' 'Box' in the CFC
Symbol: Shortcut: +
This command can be used to paste in operators, functions, function blocks and
programs First of all, it is always inserted an "AND" operator. This can be converted by
Selection and Overwrite of the text into every other operator, into every function, into
every function block and every program. The input assistance serves to select the
desired block from the list of supported blocks. If the new block has another minimum
number of inputs, these will be attached. If the new block has a smaller highest
number of inputs, the last inputs will be deleted.
'Insert' 'Input' in CFC
Symbol: Shortcut: +
This command is used to insert an input. The text offered "???" can be selected and
replaced by a variable or constant. The input assistance can also be used here.
'Insert' 'Output' in CFC
Symbol: Shortcut: +
This command is used to insert an output. The text offered "???" can be selected and
replaced by a variable. The input assistance can also be used here. The value which is
associated with the input of the output is allocated to this variable.
'Insert' 'Jump'in CFC
Symbol: Shortcut: +
This command is used to insert a jump. The text offered "???" can be selected and
replaced by the jump label to which the program should jump.
The jump label is inserted using the command 'Insert 'Label'.
