20.6.21 Scrollbar
The scrollbar element can be used to modify the value of a variable (or vice versa). The
slider position will correspond to the value of an assigned variable within a defined
value range.
The user can move the slider in online mode by clicking on the slider and then moving
it by moving the mouse - or alternatively by clicking on one of the arrow symbols on
the scrollbar, whereby each mouse-click will move the slider (and thus the variable
value) by 1 in the respective direction: If the slider is moved to the right resp. up, the
value will be increased, if the slider is moved to the left resp. down, the value will be
decreased.

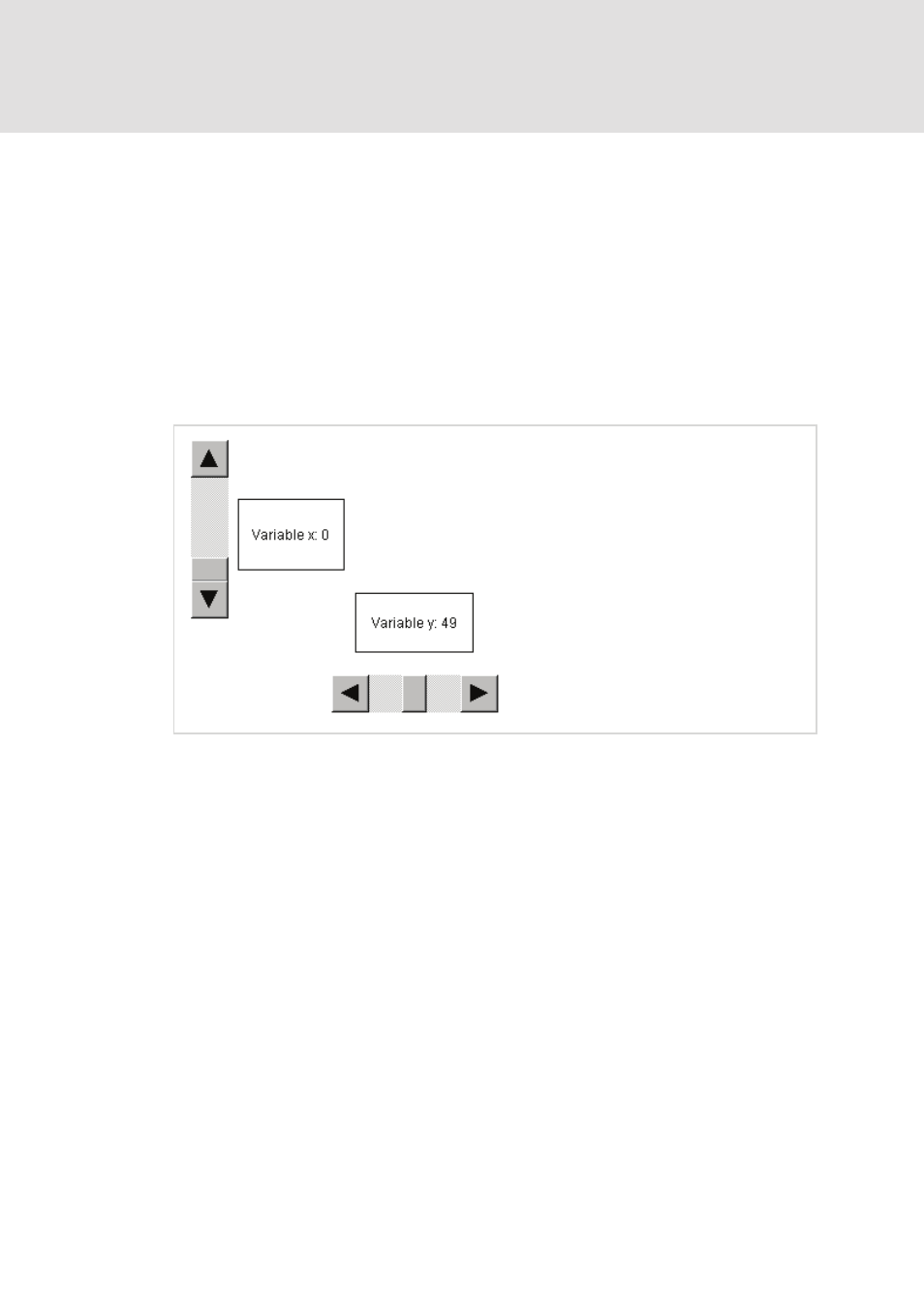

Scrollbars, Example
A vertical or horizontal display of the scrollbar can be reached by a respective shaping
of the element (see 'Insert' 'Scrollbar').
