Use Configure to get the configuration dialog for the element.

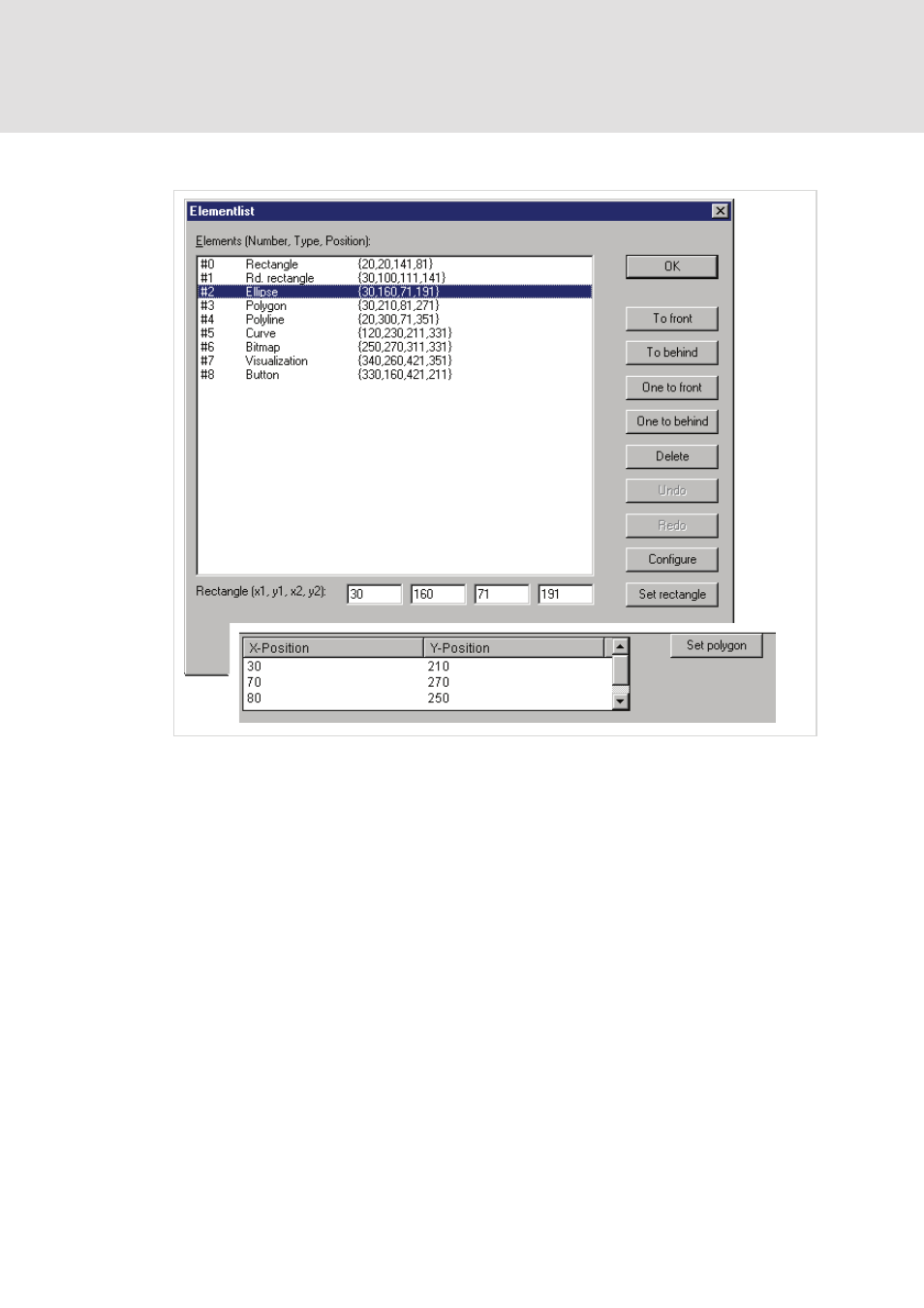

Element list dialog box
20.4.13 Status Bar in the Visualization
If a visualization has the focus, the current X and Y position of the mouse cursor in
pixels relative to the upper left corner of the image is displayed in the status bar. If the
mouse pointer is located on an Element, or if the element is being processed, then the
number of the element will be displayed. If you have selected an element to insert,
then this element will also appear (for example, Rectangle).
20.5 Visualization, Configure - Overview
For the configuration of a visualization element or for the visualization object as a
whole you can use the configuration dialogs available via the 'Extras' menu, if you are
working in the visualization. Additionally some settings can be done in the Properties
dialog available for a visualization object marked in the Object Organizer.
Regard that in the project options a separate directory can be defined for visualization
files.
