Function calls are not possible. Invalid expressions result in an error message on login
(„Invalid Watch expression..."). Examples of invalid expressions: fun(88), a := 9,
RETURN.
There are two possible ways in the configuration dialogs to write global variables:
„.globvar" and „globvar" are equivalent. The style with a dot (which is that used in the
Watch and Receipt Manager) is not allowed within an assembled expression,
however.
Regard also the possibility of using Placeholders.
20.6.4 Angle
In the configuration dialog 'Configure Pie' in the Angle category you can each enter a
value or a variable defining the start angle and the end angle of the sector element in
degrees. The sector will be drawn clockwise from the start angle position to the end
angle position.
Example:
Enter start angle: "90", end angle: "180"

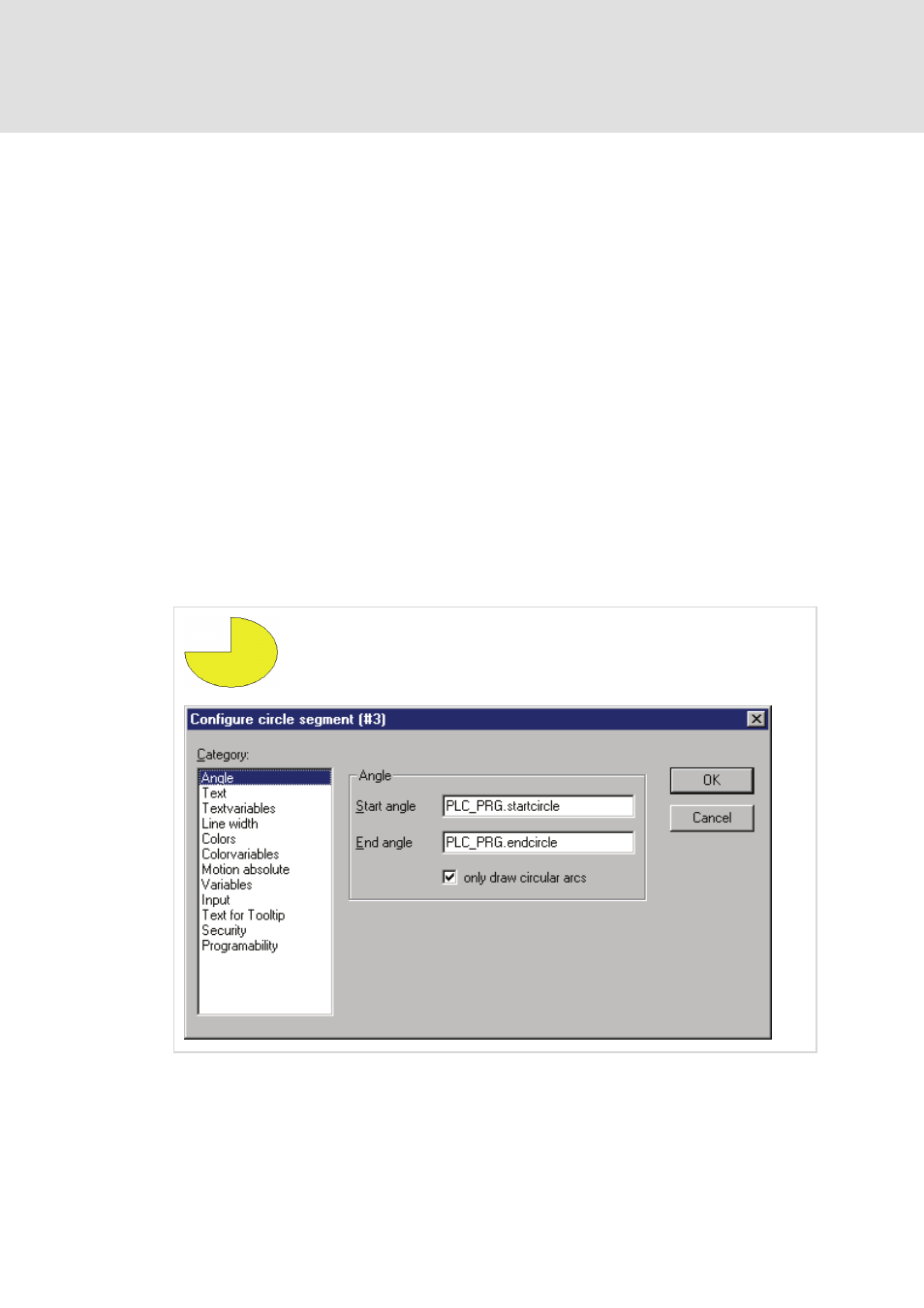

Dialog for Configuring a Pie
