L-force | PLC Designer

The Individual Components

200

DMS 3.2 EN 02/2011 TD29

Show Differences

Command: 'Project' 'Data Base Link' 'Show Differences'

The object which is currently opened by the user in »PLC Designer« will be displayed in
a window which is divided up in two parts. There the local version, which is currently
edited by the local user, will be opposed to the last (actual) version which is kept in the
data base. The differences of the versions will be marked like described for the project

comparison (see 'Project' 'Compare').

Show Version History

Command: 'Project' 'Data Base Link' Show Version History'

For the currently marked object in the Object organizer a dialog 'Version history of
will be opened. There all versions of the object are listed which have

been checked in to the data base or which have been labeled there:

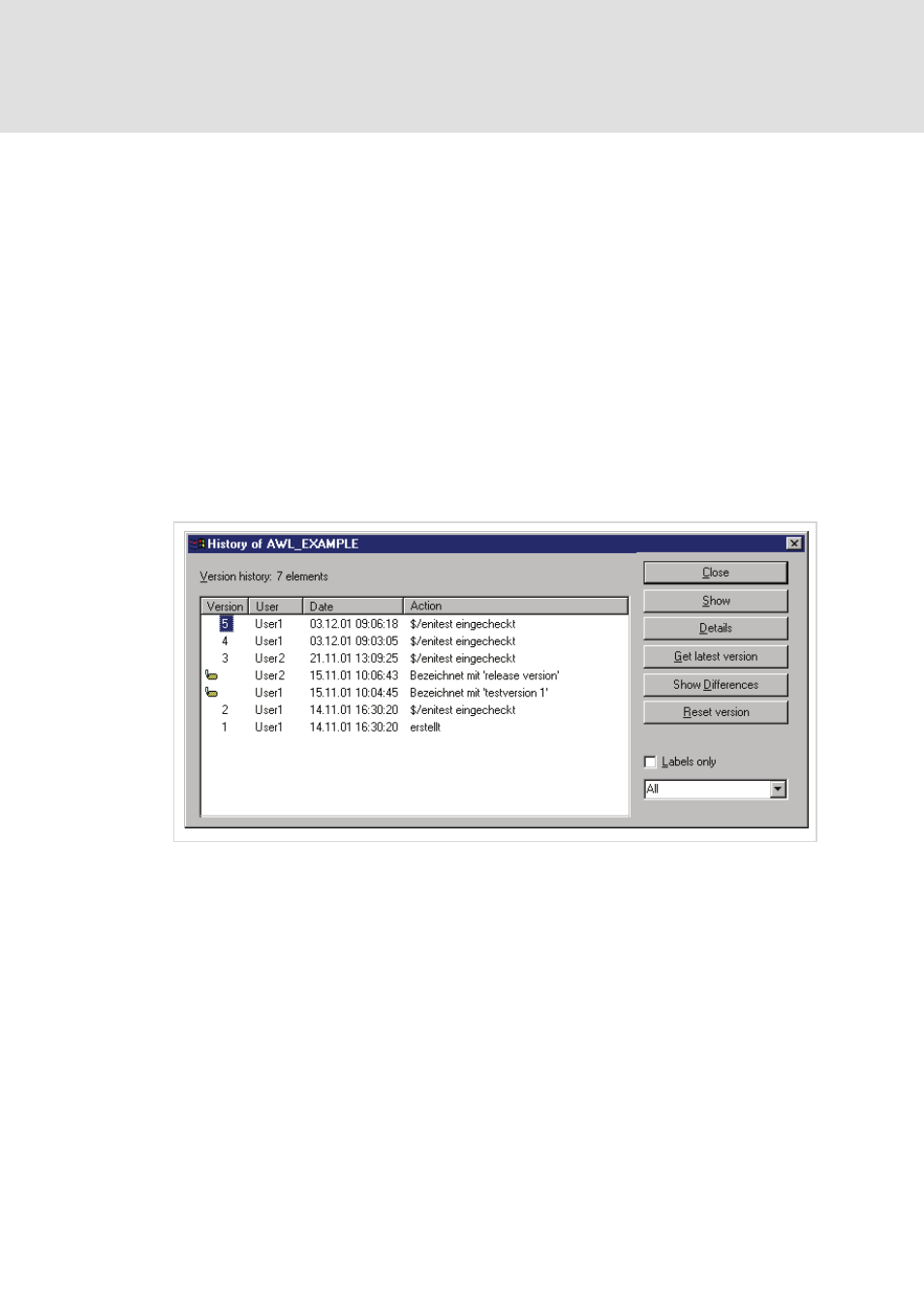

Dialog showing the History of the version

The following information is given:

• Version: Data base specific numbering of the versions of the object which have

been checked in one after the other. Labeled versions get no version

number

but

are marked by a label-icon.

• User: Name of the user, who has executed the check-in or labeling action
• Date: Date and time stamp of the action
• Action: Type of the action which has been executed. Possible types: 'created' (the

object has been checked in to the data base for the first time), 'checked in' (all
check-in's of the object excluding the first one) and 'labeled with
