20.6.22 Meter

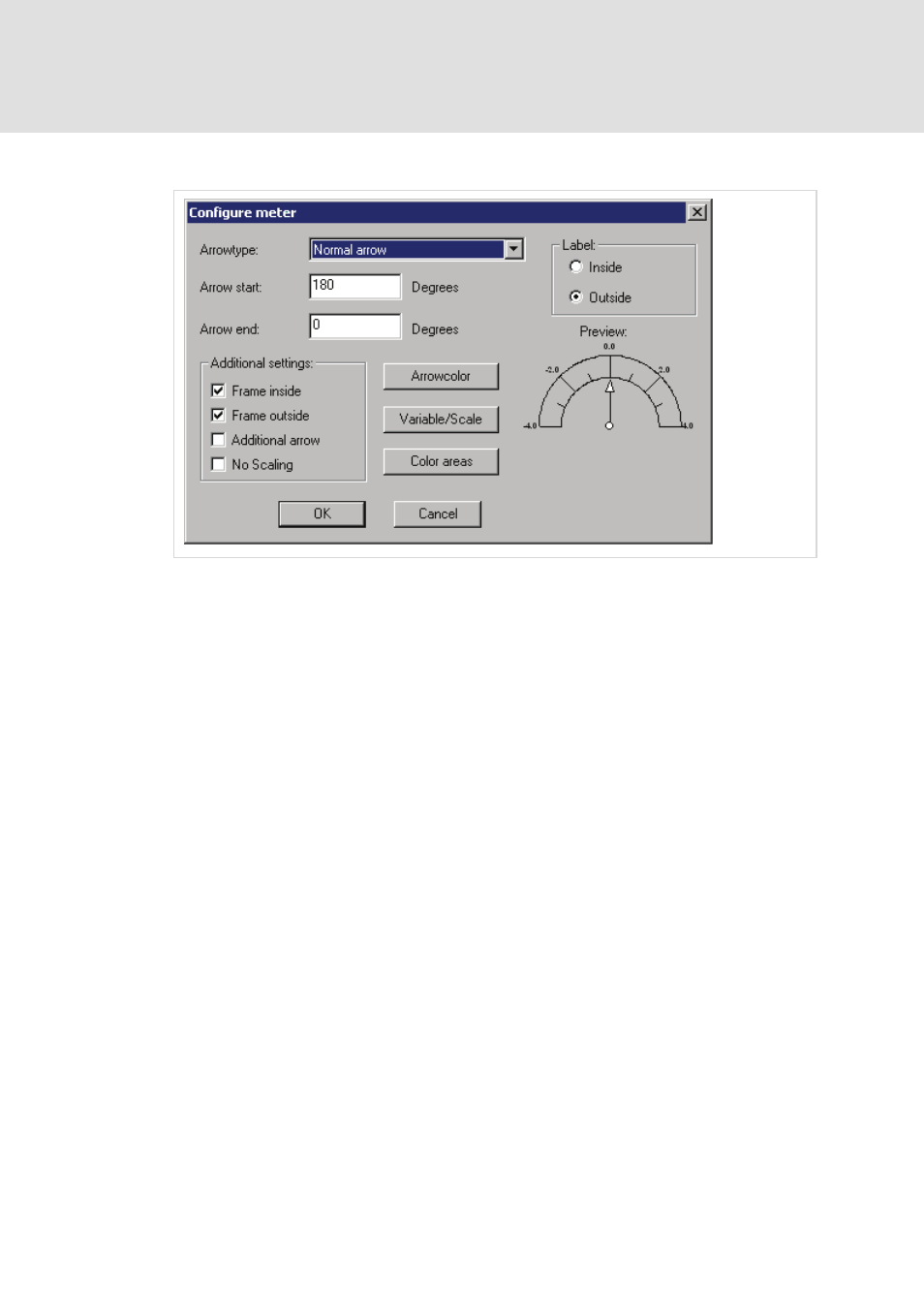

Dialog for the configuration of a Meter element
This dialog will open automatically as soon as you insert a Meter into a visualization
object. A Preview is part of the dialog, immediately showing how the element will
look as a result of the currently set parameters:
Arrowtype: Define the type of the arrow which will point at the current value on the
Meter. Possible types: Normal arrow, Thin arrow, Wide arrow, Thin needle.
Arrow start, Arrow end: Here you define the start and the end positions of the scale on
a virtual circular arc in ° Degrees (angle). (Example: a Start angle of 180° and an End
angle of 0° will define a upturned semicircle).
Arrow color: This button opens the standard dialog or a target-specific color selection
list for choosing a color. Define the color of the pointer.
