1 - 15
MELSEC-Q
1 PRODUCT OUTLINE

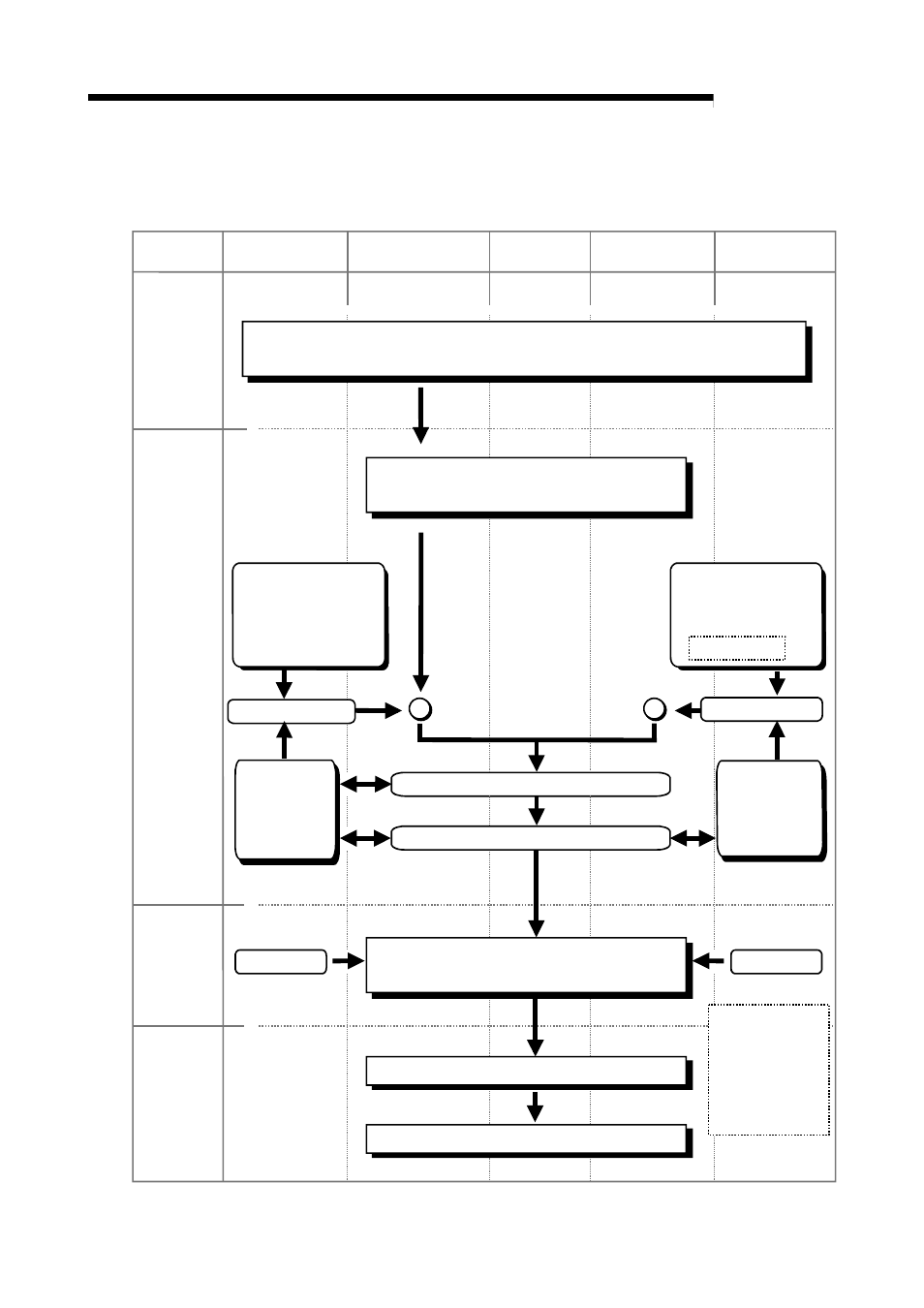

1.2 Flow of system operation
1.2.1 Flow of all processes
The positioning control processes, using the QD75, are shown below.
GX Configurator-QP Servo, etc. QD75 PLC CPU GX Developer
Design
Understand the functions and performance, and determine the positioning operation method
(system design)
1)
Preparation
Installation, wiring
Setting of the:
· Parameters
· Positioning data
· Block start data
· Condition data
Creation of sequence
program for operation
Refer to (Note)
2)
3) 4)
5) 6)
7) 8)
Writing of setting data
Writing of program
Monitoring with
test operation,
and debugging
of setting data
Connection confirmation
Test operation
Monitoring and
debugging of
operation
program
9)
10)
11)
Operation Monitor Actual operation
Maintenance
Monitor
Disposal
(Note)
When not using
GX Configurator
-QP, carry out
setting, monitoring
and debugging of
the data in 3) with
GX Developer.
Maintenance
