6 - 19
MELSEC-Q
6 SEQUENCE PROGRAM USED FOR POSITIONING CONTROL
(2) When positioning start signal (Y10) is used
(When fast OPR is not made, contacts of M3 and M4 are not needed.)
(When M code is not used, contact of X04 is not needed.)
(When JOG operation/inching operation is not performed, contact of M7 is not needed.)
(When manual pulse generator operation is not performed, contact of M9 is not needed.)

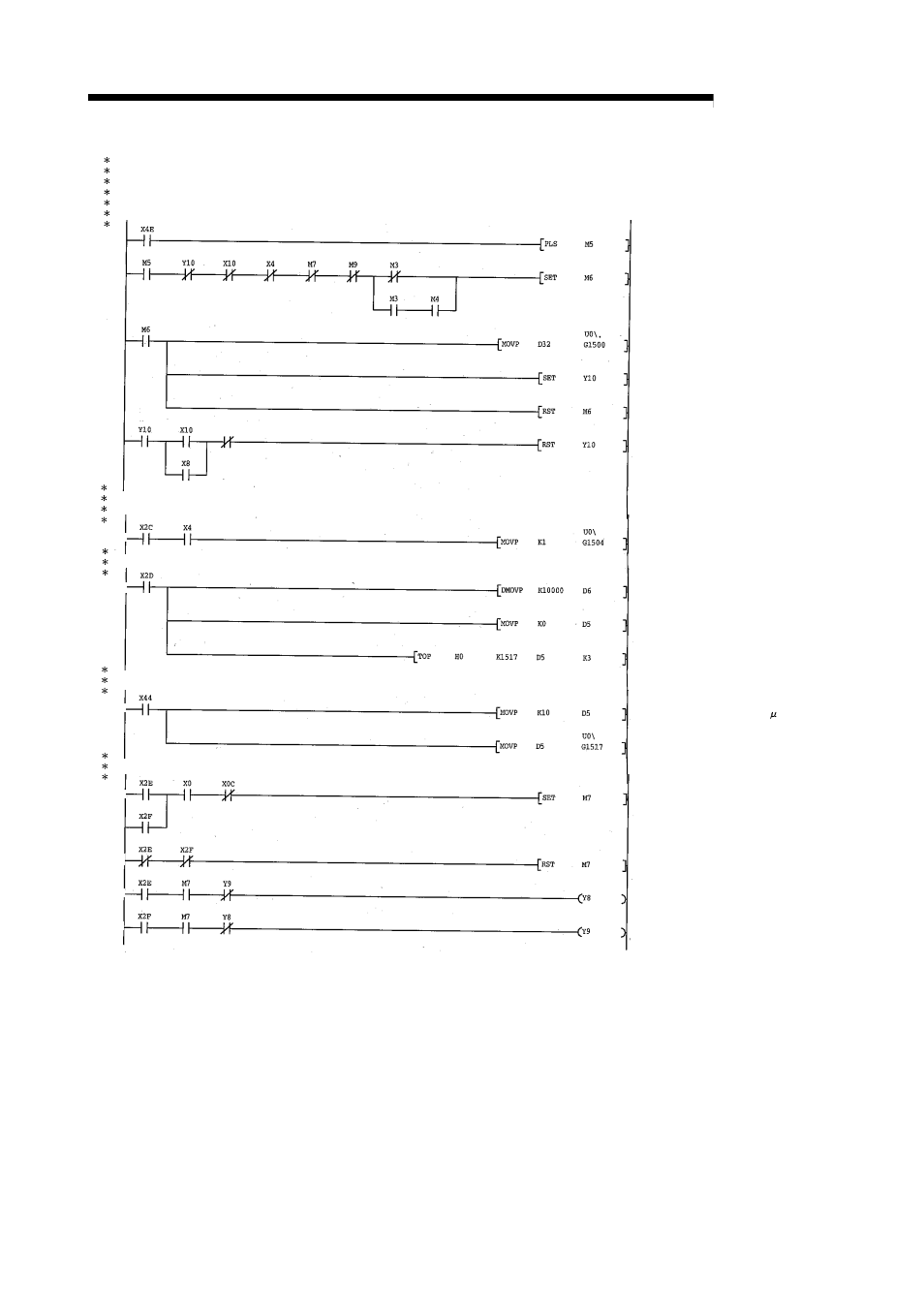

No. 10 JOG operation setting program
No. 11 Inching operation setting program
No. 12 JOG operation/inching operation execution program
DX0C
397
408
421
431
No. 9 M code OFF program
(Not required when M code is not used)
439
449
480
505
512
521
516
