3 - 5
MELSEC-Q

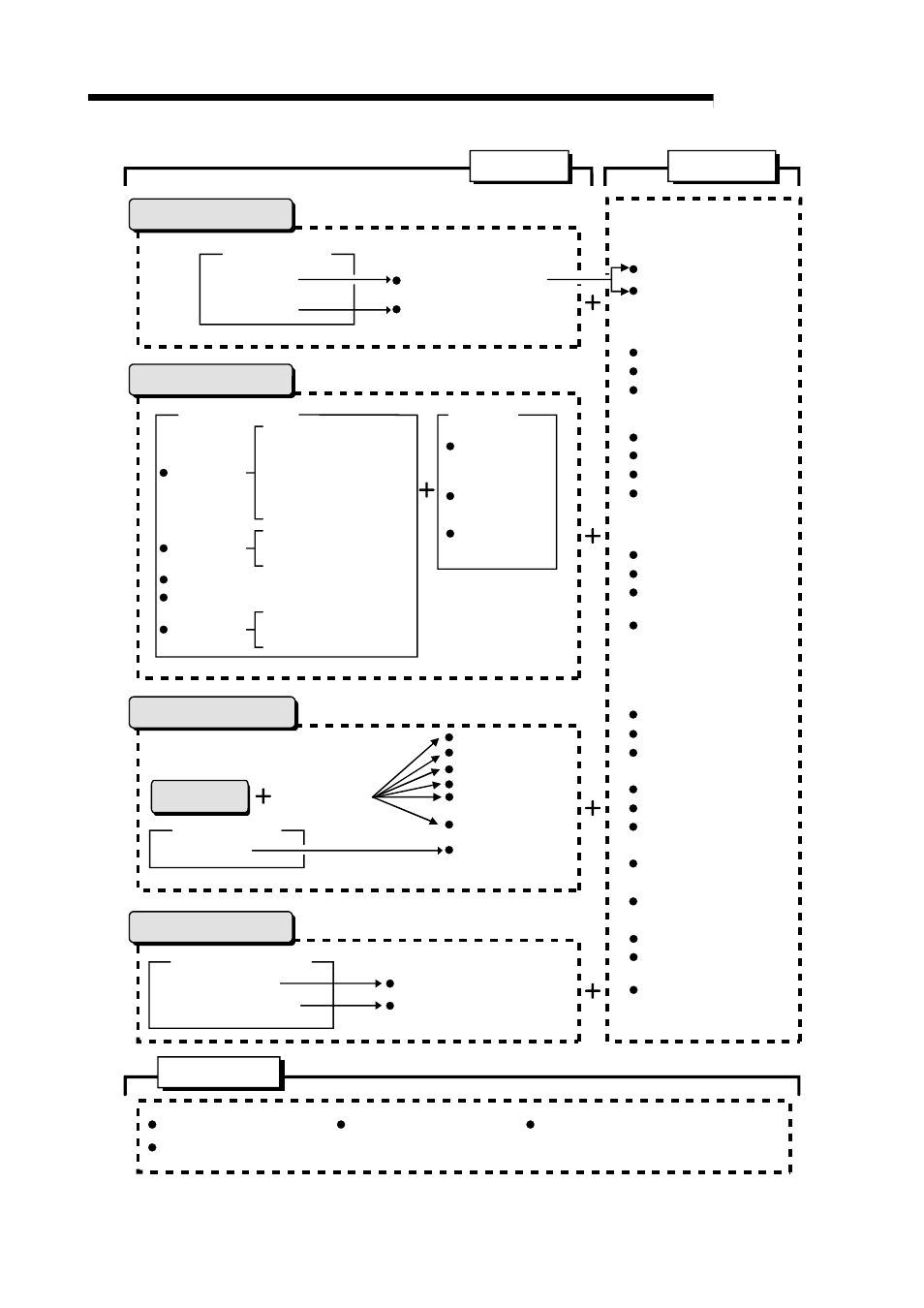

3 SPECIFICATIONS AND FUNCTIONS
Position control
Main functions Sub functions
OPR control Control registered in QD75
[Positioning start No.]
[9002]
[9001] Machine OPR
Fast OPR
(Functions characteristic to
machine OPR)
OPR retry function
OP shift function
control>
Backlash compensation function
Electronic gear function
Near pass function
Speed limit function
Torque limit function
Software stroke limit function
Hardware stroke limit function
control details>
Speed change function
Override function
Acceleration/deceleration
time change function
Torque change function
function>
Step function
Skip function
Continuous operation
interrupt function
M code output function
Teaching function
Target position change
function
Command in-position
function
Acceleration/deceleration
processing function
Pre-reading start function
Deceleration start flag
function
Stop command processing
for deceleration stop function
Major positioning control Control using "Positioning data"
·1-axis linear control
·2-, 3-, or 4-axis linear
interpolation control
·1-axis fixed-feed
control
·2-, 3-, or 4-axis fixed-feed
control
·2-axis circular interpolation
control
·1-axis linear control
·2-axis linear interpolation control
·3-axis linear interpolation control
·4-axis linear interpolation control
·Current value changing,
NOP instruction
·JUMP instruction,
LOOP to LEND
pattern>
Independent
positioning control
(Positioning complete)
Continuous
positioning control
Continuous path
control
High-level positioning control
Control using "positioning data"
+ "Block start data"
Major positioning
control
[Block start data]
Block start (Normal start)
Condition start
Wait start
Simultaneous start
Repeated start
(FOR loop)
Repeated start
(FOR condition)
Multiple axes
simultaneous start
control
Parameter initialization function Execution data backup function External I/O logic switching function
Manual control Control with signals input from external source
Common functions
[Positioning start signal]
JOG start signal ON
Pulse input from manual
pulse generator
JOG operation, Inching operation
Manual pulse generator
operation
Other control
Speed-position switching control
Position-speed switching control
[Positioning start No.]
[9004]
Speed control
External I/O signal monitor function
