6 - 16
MELSEC-Q
6 SEQUENCE PROGRAM USED FOR POSITIONING CONTROL
(For positioning data No. 1 )

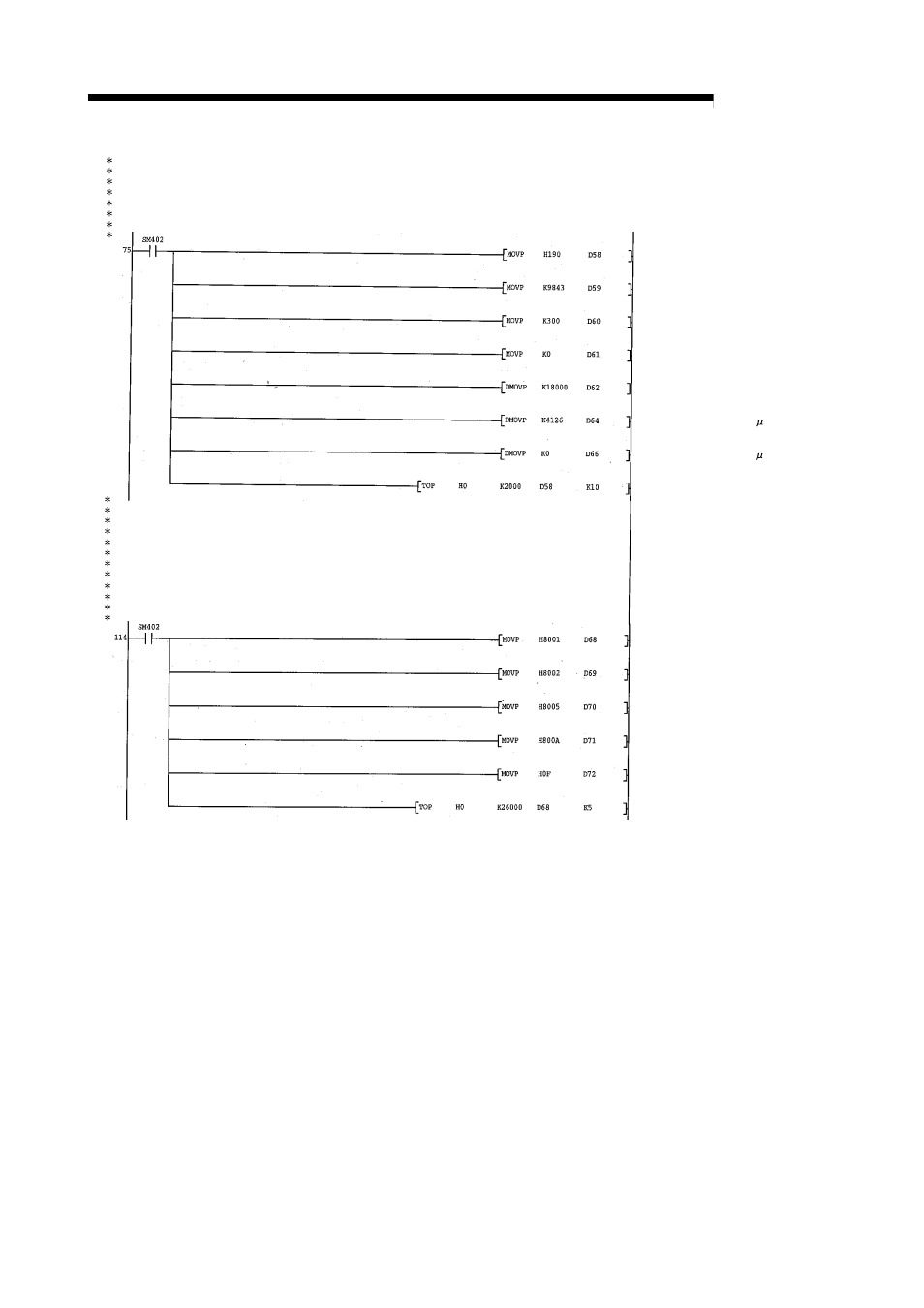

No. 2 Positioning data setting program
Operation pattern: Positioning complete
Control system: 1-axis linear control (ABS)
Acceleration time No.: 1, deceleration time No.: 2
<(Dummy data)>
< Setting of command speed (180.00mm/min) >
< Positioning address (412.6 m) setting >
< Setting of arc address (0.0 m) >
Block start data of start block 0 (axis 1)
No. 3 Block start data setting program
For setting of points 1 to 5
Shape: Continued at points 1 to 4, ended at point 5
Special start instruction: Normal start at all of points 1 to 5
(Conditions)
[Setting of shape and start data No.]
