Configuring Main System
1

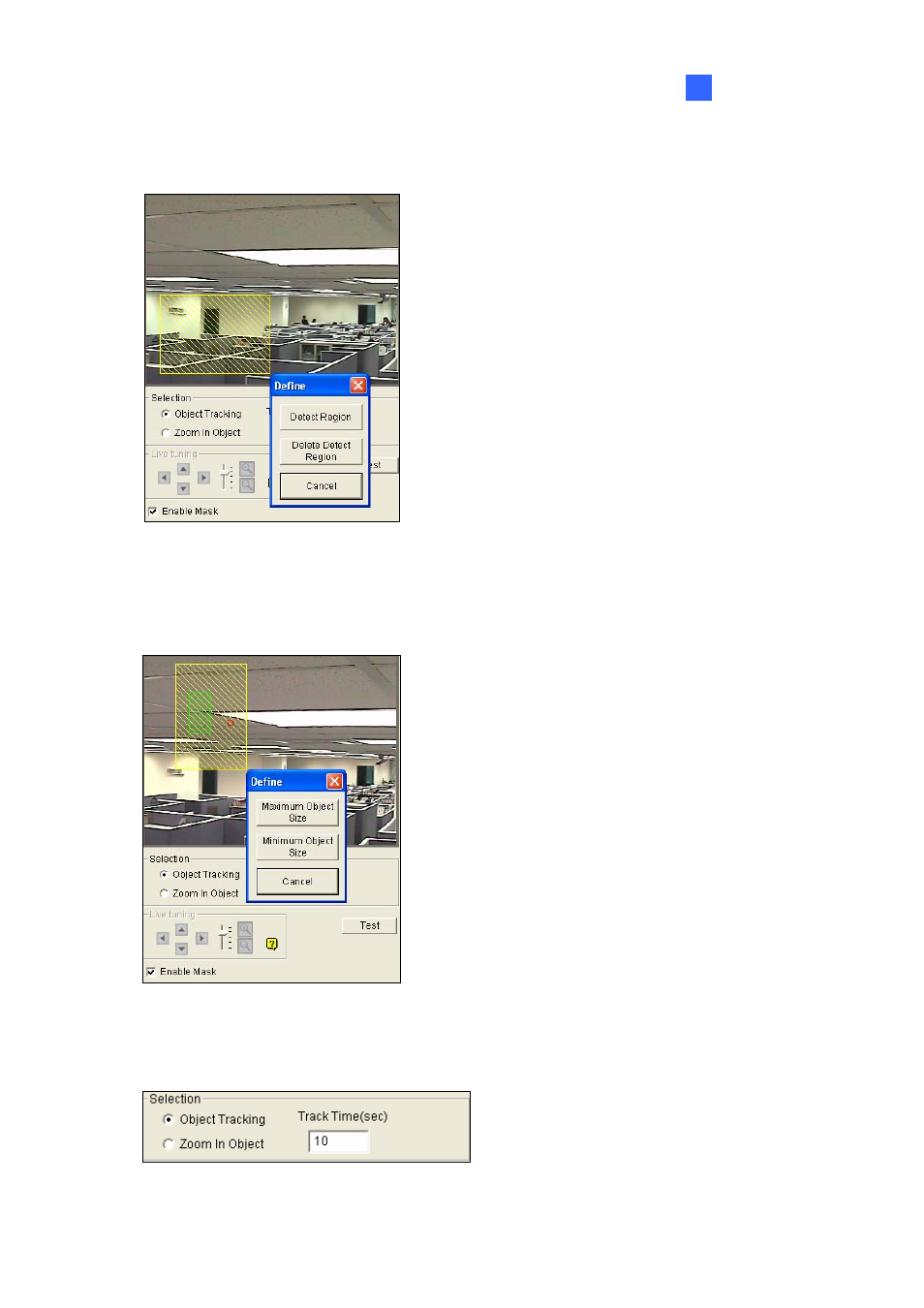

6. Select Define Detect Region from the drop-down menu. Use the mouse to outline a detection
region in the right screen; you will be prompted to enter Detect Region. See Figure 1-72.
Figure 1-72
7. Select
Define Object Size from the drop-down menu. Use the mouse to outline the max and min
object sizes for tracking separately. Every time when finishing the outlining, you will be prompted
to enter Maximum Object Size or Minimum Object Size. See the illustration below.
Figure 1-73
8. Click
the
Object Tracking item and specify Track Time (sec). Track Time (sec) indicates the
tracking duration in seconds.
Figure 1-74
