Configuring Main System 1
Logging System Activities into System Log
GV-System can monitor security events by recording the login and logout of system resources. No
events will be recorded to the System Log until you activate the desired event logs. To activate the log,
click the Configure button (No.14, Figure 1-2), point to General Setting, and then select System Log
Setting to display the following dialog box.

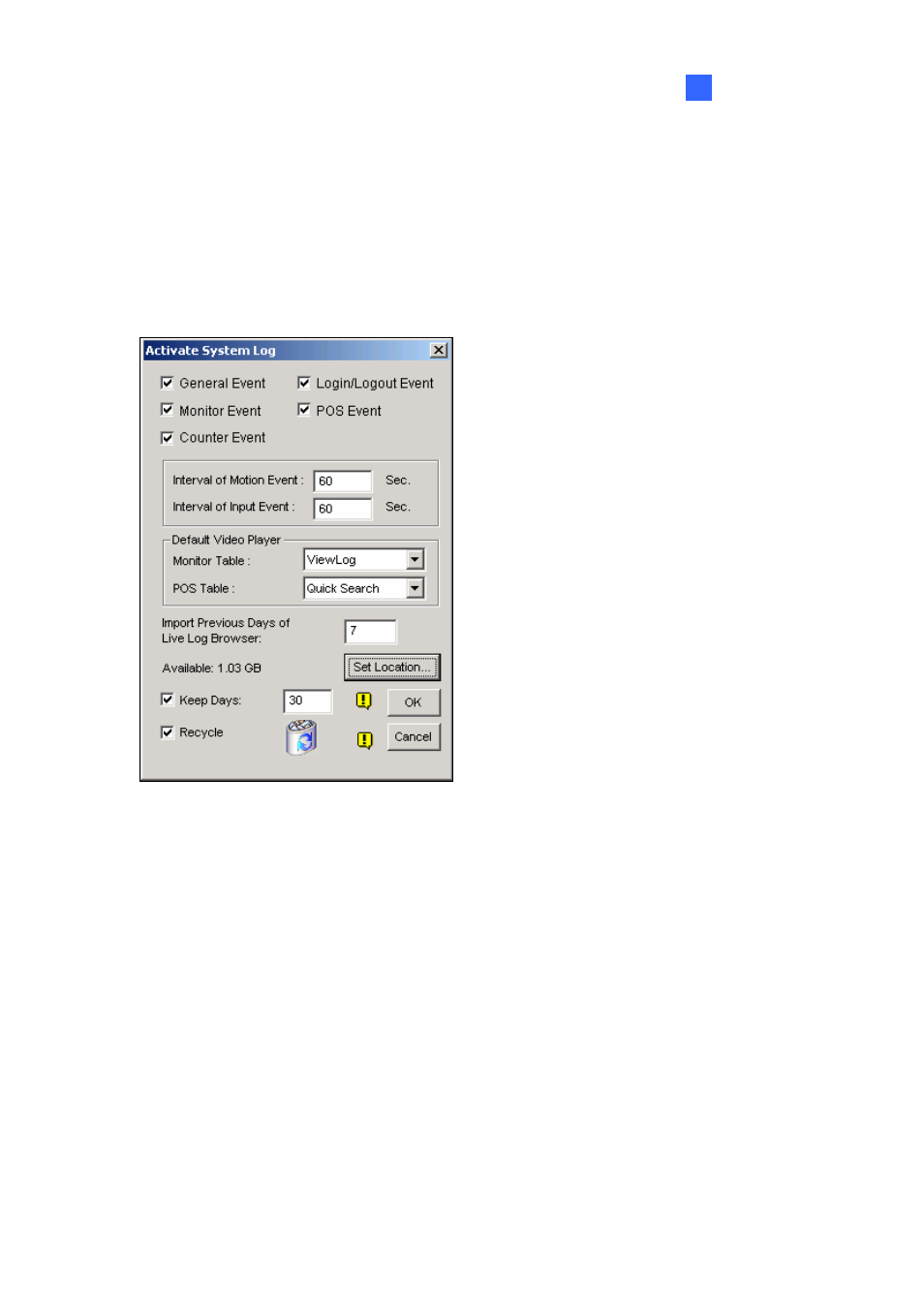

Figure 1-26
„ General Event: Record system startup/exit, network server start/stop, and recording start/stop.
„ Login/Logout Event: Record local user login/logout GV-System and WebCam Server.
„ Monitor Event: Record motion-triggered and I/O-triggered events. For this feature to work, you
must check both the Register Motion Event option in Figure 1-13 and the Register Input Event
option in Figure 2-1 in Chapter 2.
„ POS Event: Record POS transaction data.
„ Counter Event: Record counting results.
„ Interval of Motion Event: Specify the log interval between motion-triggered events. This setting
could prevent the System Log growing too big when trying to log all events under a
motion-intensive surveillance area.
„ Interval of Input Event: Specify the log interval between I/O-triggered events.
29
